ComAp InteliDrive FLX LITE - Page 99

ID-FLX Lite Global Guide
99
Comm object 8252 Related applications
Description

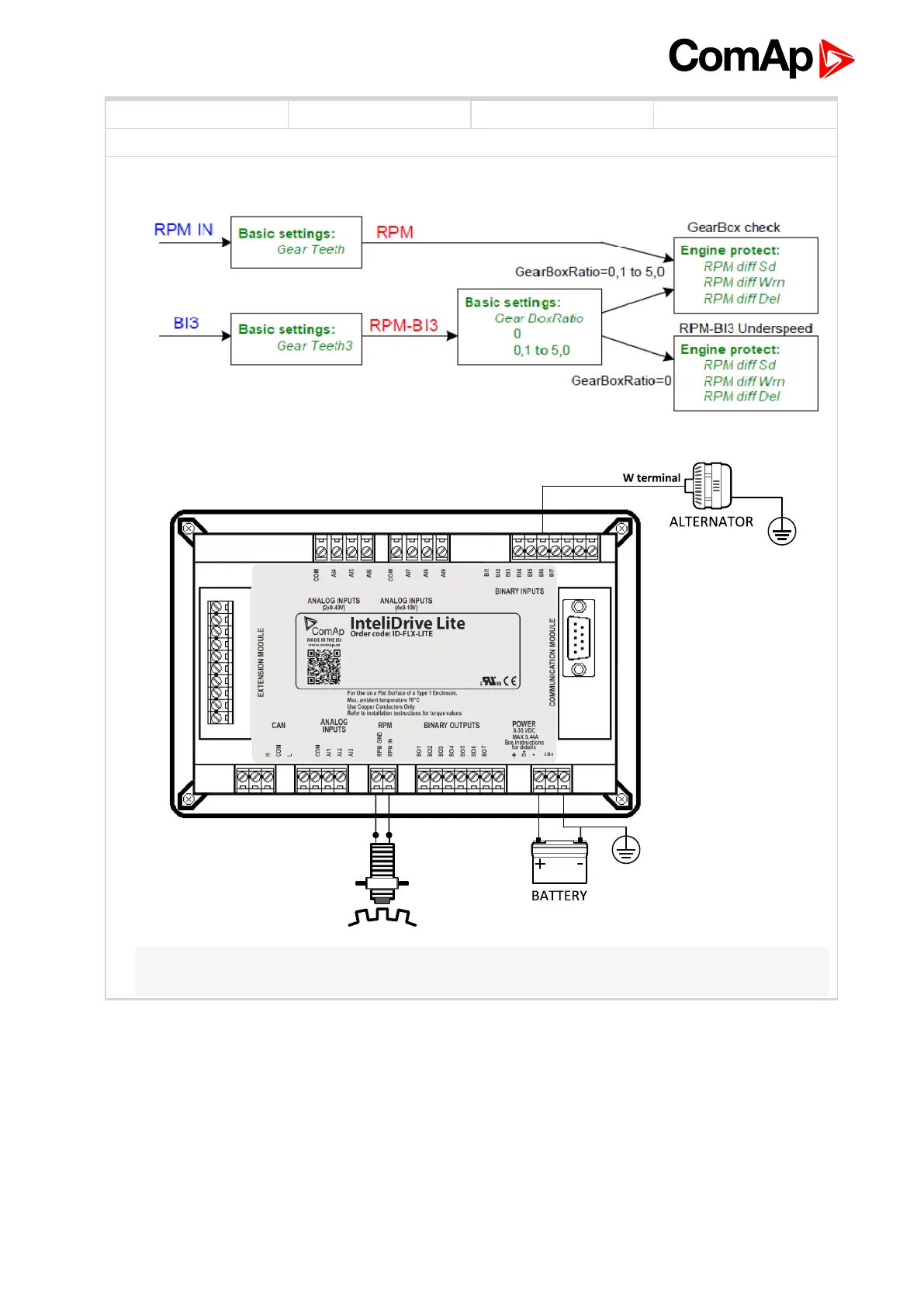

The number of teeth on the engine gear for the pick-up sensor. The setpoint is ignored when ECU is
configured.
Note: The RPM pickup input is ignored when Engine params: Gear teeth = 0. The engine running state is
then detected based on Starting POil (page 114) or D+ function (page 122) = ENABLED.
6 back to List of setpoints
