InteliLite Global Guide
253
Setpoint group General Analog Inputs Related FW 1.2.1
Range [units] the range is defined by analog sensor curve
Default value
the value is defined by
analog sensor curve
Alternative config NO
Step the step is defined by analog sensor curve
Comm object 14991 Related applications AMF, MRS
Config level Standard
Setpoint visibility
Visible only if the logical binary output ANALOG SWITCH 4 (PAGE 478) is
configured
Description
Threshold level for switching the binary output AIN SWITCH 17 (PAGE 541) off. The value is measured from
AIN SWITCH 04 (PAGE 537) analog input.

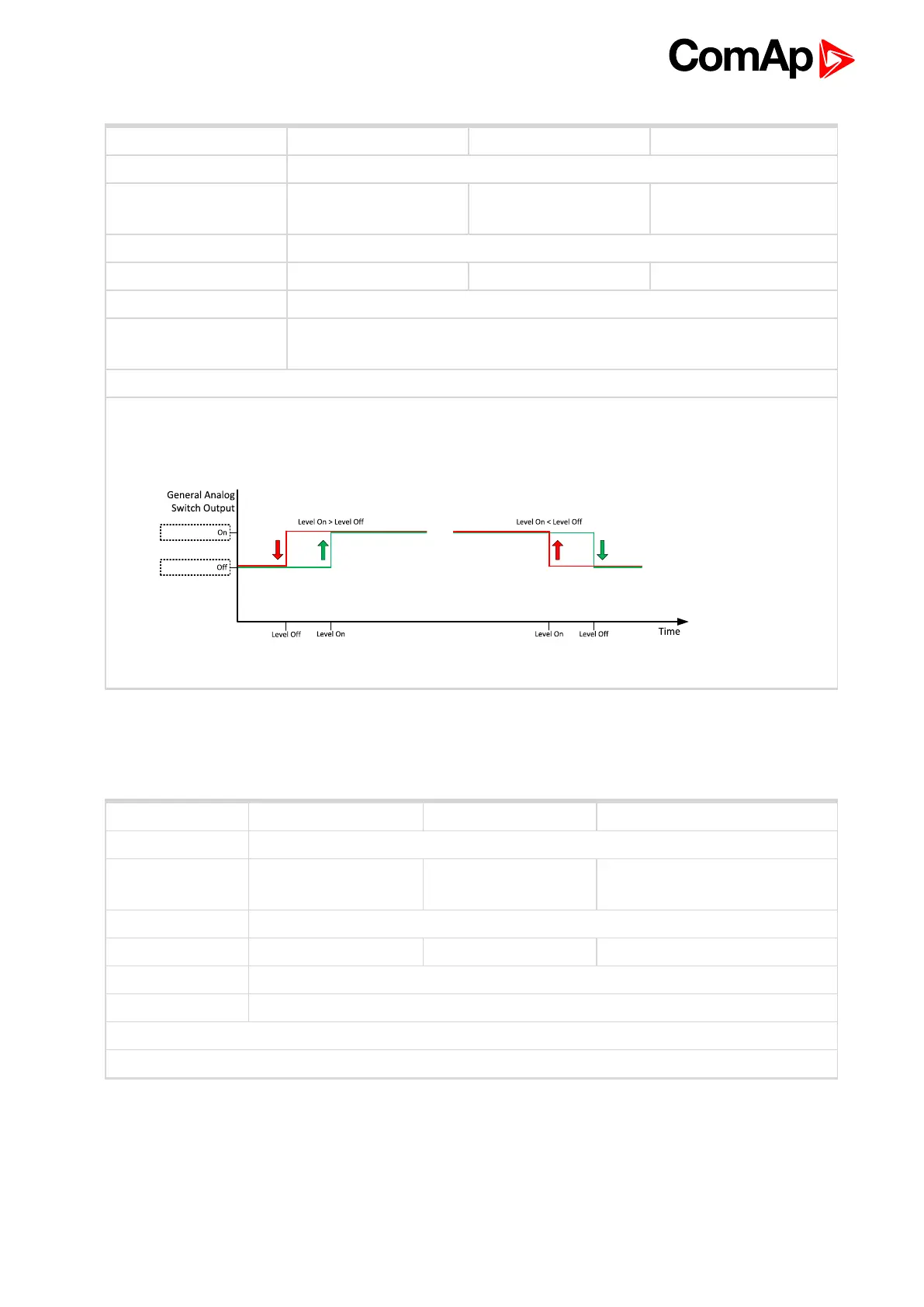

Image 8.53 General analog input 4 switch
Analog Switch 17 Off
6 back to List of setpoints
General Analog Input 18
Setpoint group General Analog Inputs Related FW 1.2.1
Range [units] the range is defined by analog sensor curve
Default value
the value is defined by
analog sensor curve
Alternative config NO
Step the step is defined by analog sensor curve
Comm object 9310 Related applications AMF, MRS
Config level Standard
Setpoint visibility Always
Description
Warning or history threshold level for AIN PROT 18 (PAGE 533).
Analog Protection 18 Wrn
6 back to List of setpoints
