InteliLite Global Guide
26
Use cables of 2,5 mm
2
Use transformers to 5 A

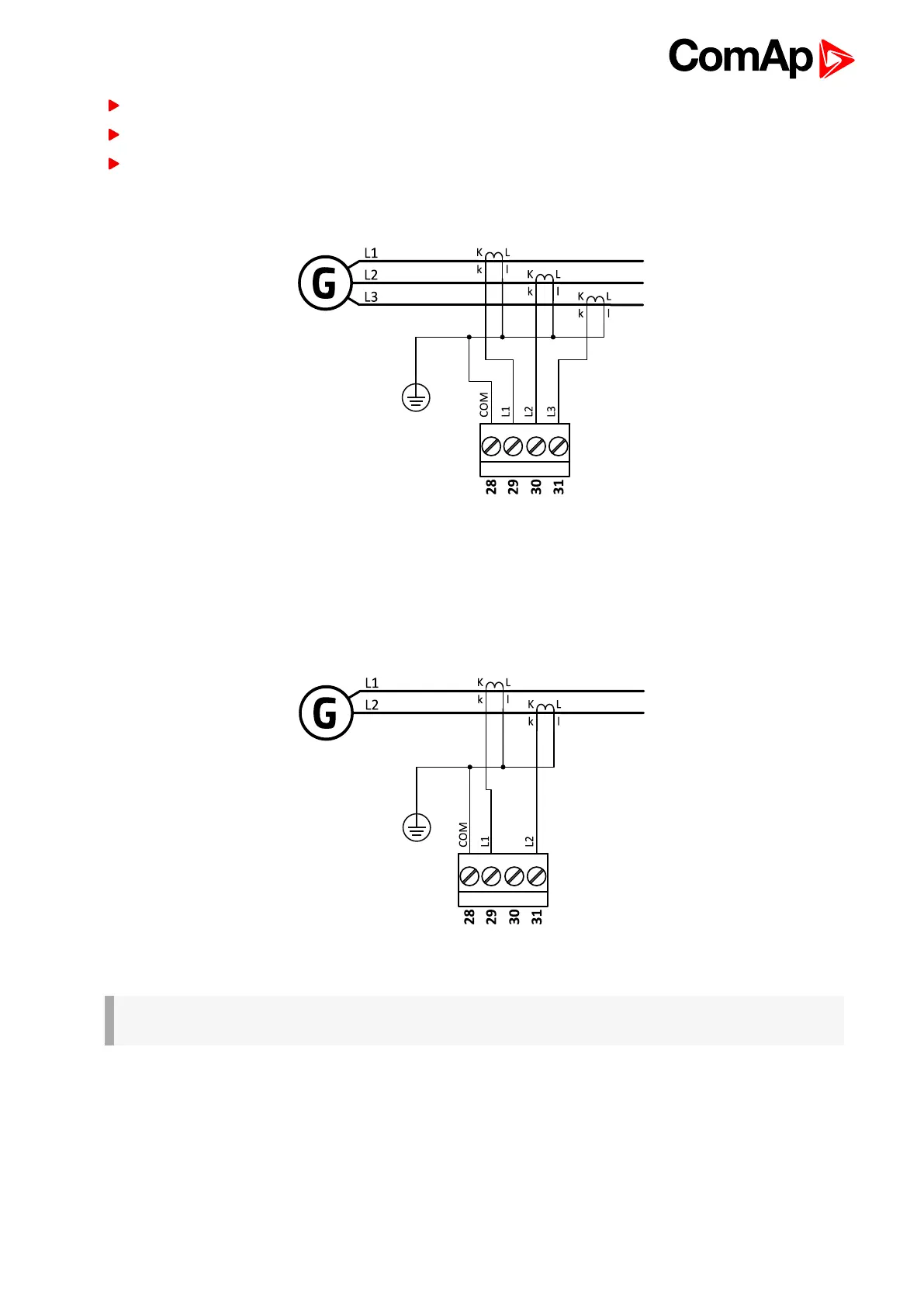

Connect CT according to following drawings:
3 phase application:
Image 4.2 3 phase application
It is necessary to ensure that potential difference between generator current COM terminal and battery “-”
terminal is maximally ± 2V. Therefore is strongly recommended to interconnect these two terminals together.
Split phase application:
Image 4.3 Split phase application
IMPORTANT: The second phase of split phase connection is connected to the terminal, where is
normally connected the third phase.
