InteliLite Global Guide
27

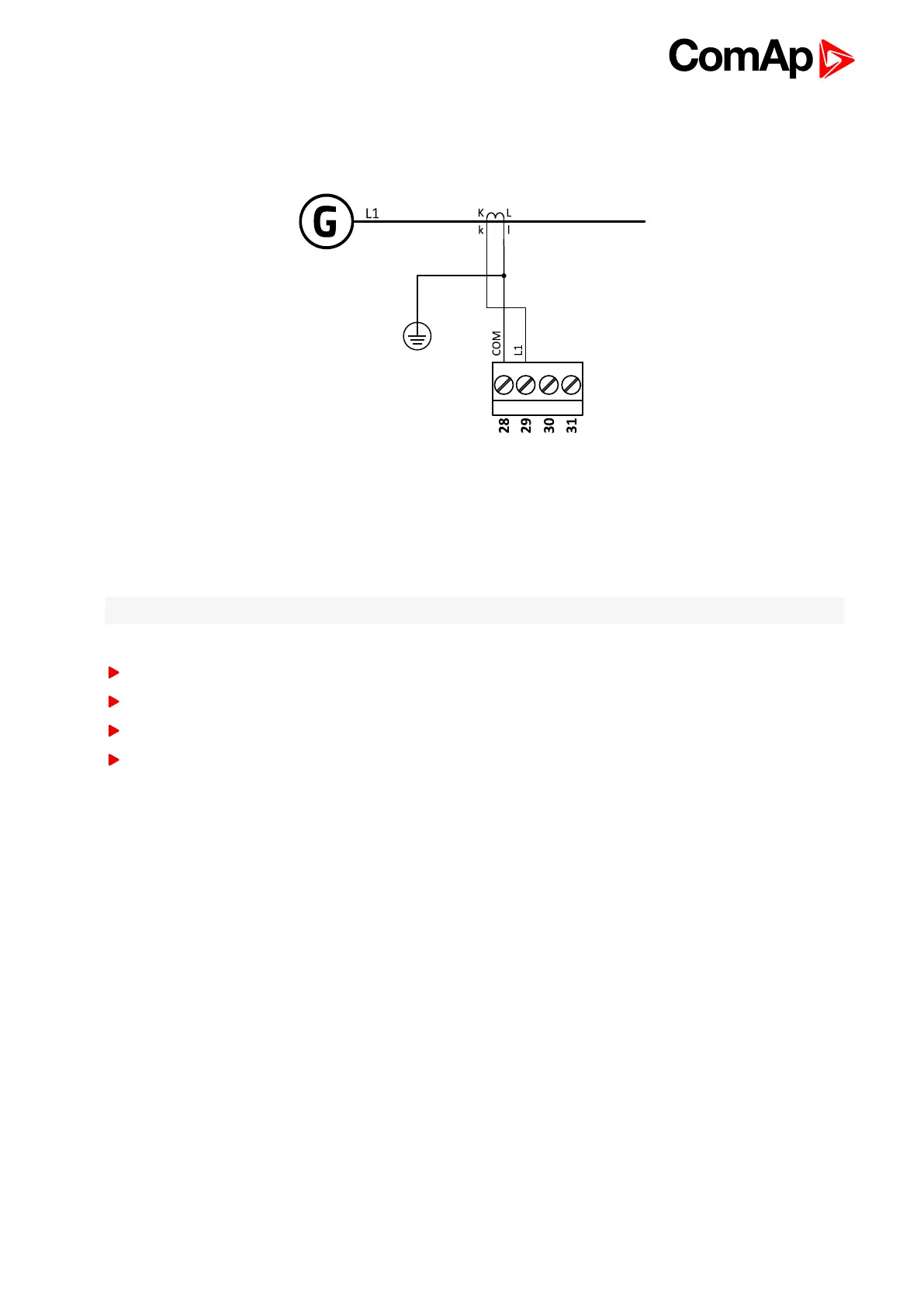

Mono phase application:
Connect CT according to following drawings. Terminals phase 2 and phase 3 are opened.
Image 4.4 Mono phase application
Voltage measurement MRS wiring
There are 4 voltage measurement Connection Type (setpoint Connection type (page 157) [3Ph4Wire /3Ph3Wire
/ Split Ph / Mono Ph]) options, every type matches to corresponding generator connection type.
Note: For fusing of voltage measurement input use T1A or T2A fuse.
The generator protections are evaluated from different voltages based on Connection type (page 157) setting:
3Ph 4W – Ph-Ph voltage, Ph-N voltage
3Ph 3W – Ph-Ph voltage
Split Ph – Ph-N voltage
Mono Ph – Ph-N voltage
