InteliLite Global Guide
486
Related FW 1.2.1 Related applications AMF, MRS
Comm object 1802
Description
This is an output from the General Analog Input 20 switch function. The behavior of the switch depends on
the adjustment of the setpoints Analog Switch 20 On (page 261) and Analog Switch 20 Off (page 262). The
value is measured from AIN SWITCH 20 (PAGE 542) analog input.

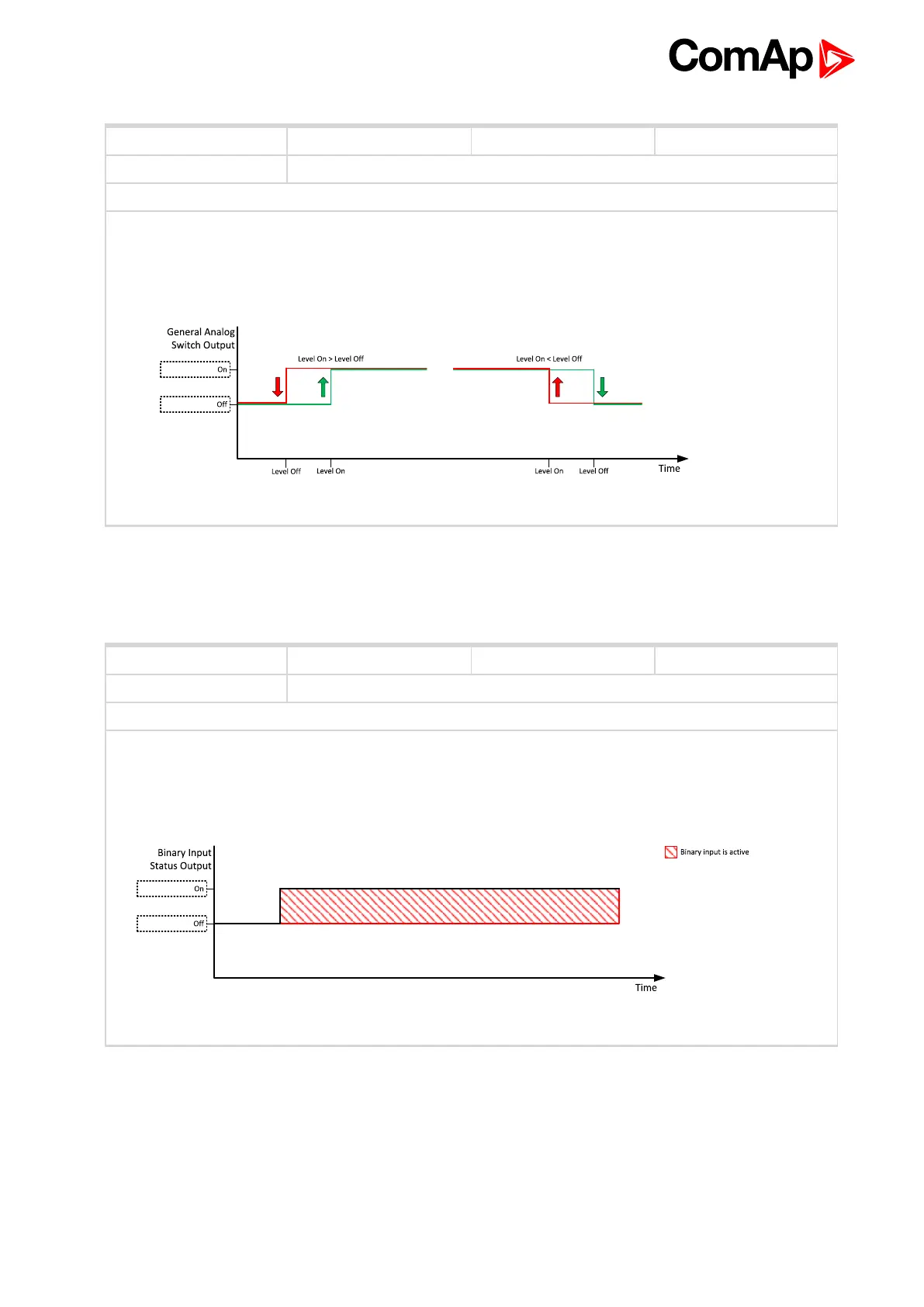

Image 8.152 General analog input 20 switch
Analog Switch 20
6 Logical binary outputs alphabetically (page 463)
LBO: B
Related FW 1.2.1 Related applications AMF, MRS
Comm object 1374
Description
This output is closed, when Binary Input 1 is active and open when Binary Input 1 is inactive. When Binary
Input 1 is used for BIN protection function then this output is closed when BIN protection alarm is in
Alarmlist.
Image 8.153 Binary Input 1 Status
BIN 1 Status
6 back to Logical binary outputs alphabetically
