InteliLite Global Guide
620
4. Connect the unit with PC via RS232-null modem cable : launch
5. Connect power supply of the module
6. Launch FlashPgr.exe PC software
7. In FlashPrg program choose card 90F352 and load FW for the module
8. Set the proper COM port (connected with the unit) and press Start button
9. Wait till process is done (If the process doesn’t start – after 60 second the “Timeout” will be evaluated. In this
case please check:
Proper connection with the unit
COM port selection
Unit’s power supply is according manual

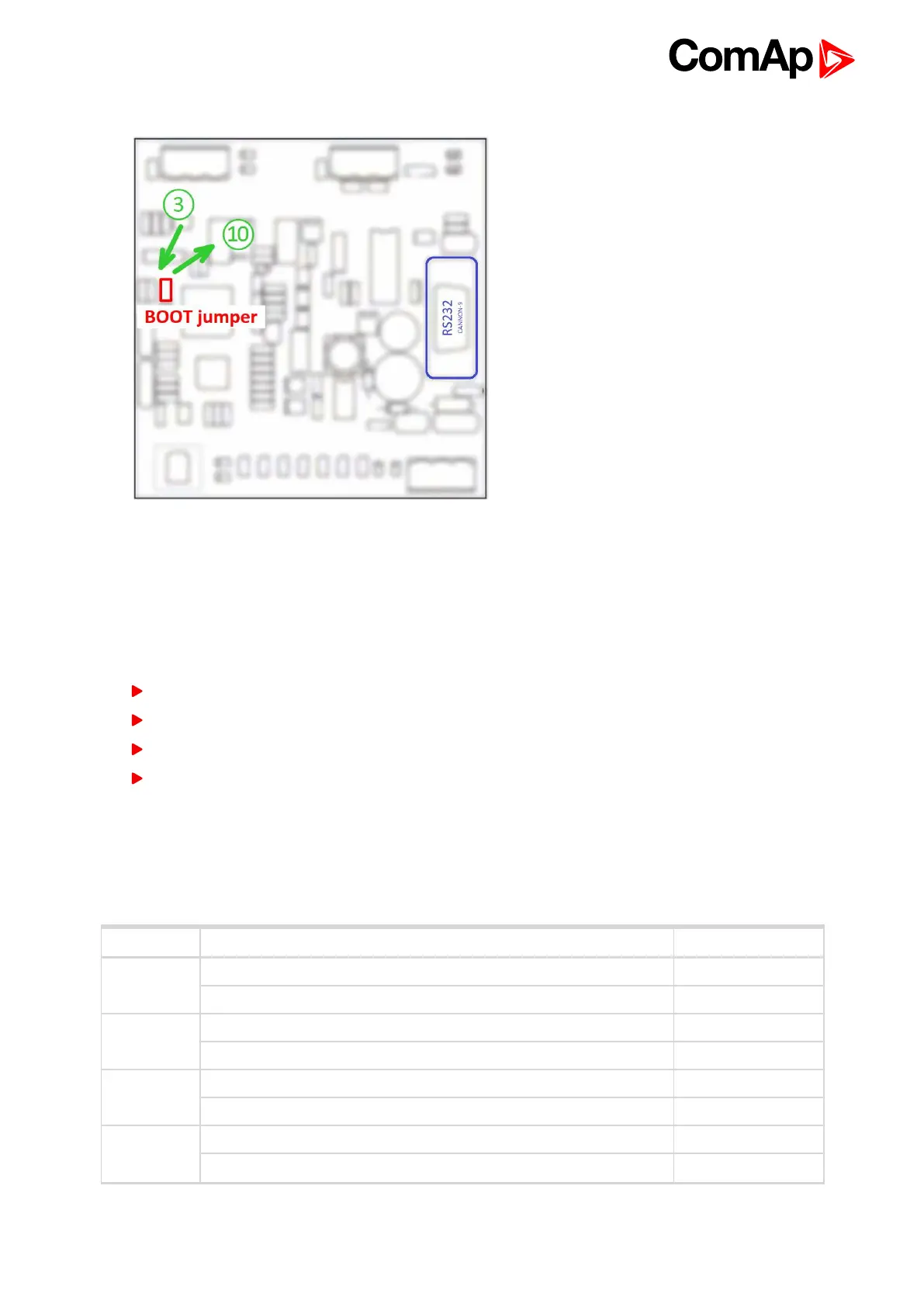

BOOT jumper is set on, try again from point 3
10. After successful programming, disconnect the power supply from the unit and remove the BOOT jumper
11. Assemble the unit again
12. Module FW is upgraded
LED indication
LED Description State State
RxC No data are received on the CAN line Dark
Data are received on the CAN line Blink
TxC No data are transmitted on the CAN line Dark
Data are transmitted on the CAN line Blink
RxD No data are received on the RS232 or RS485 line Dark
Data are received on the RS232 or RS485 line Blink
TxD No data are transmitted on the RS232 or RS485 line Dark
Data are transmitted on the RS232 or RS485 line Blink
