3.7 Other features
3.7.1 User configurable soft keys buttons
The user has possibility to assign various functions of configurable soft keys buttons - buttons on the bottom of
Intelivision 5 (see figure below). Different functions can be assigned to any button of any screen.
Pre-defined functions:
Fast jump to any Measurement & Setpoints screen
Binary signal activation
Set button - each press of a button sets binary signal to 1
Reset button - each press of a button sets binary signal to 0
Toggle button - press set binary signal to 1 or 0 (depends on initial value) and next press set value to
opposite value. Initial value can be defined.
Pulse generator (the button generates pulse 1)
Genset commands (start, stop, MCB on, faultReset etc. )

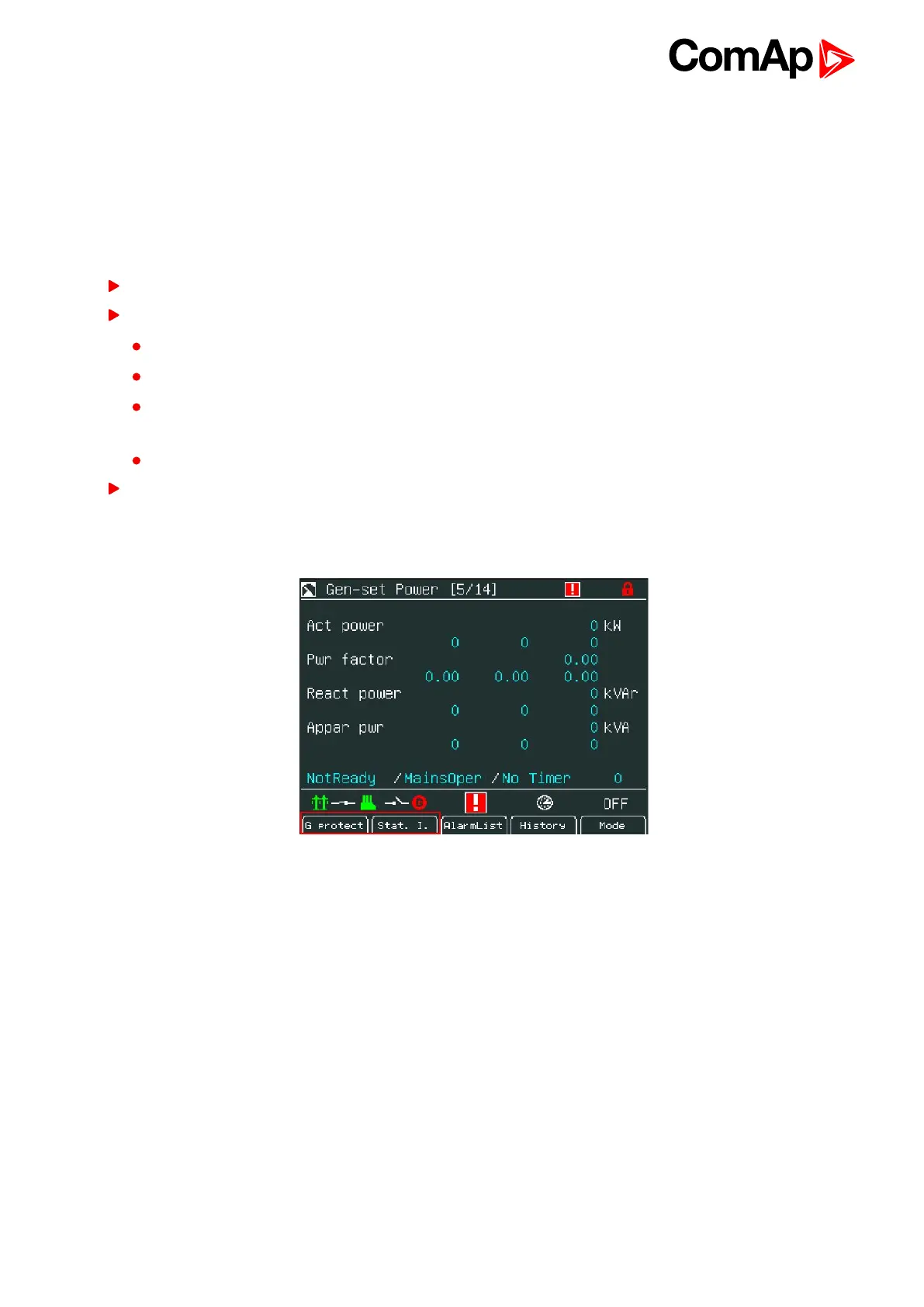

See example in the picture below. The first button is fast link to “Generator protection” list in Setpoints Menu and
the second button is fast link to “Statictic I.” screen in Measurement. Labels on buttons are customizable.
The functions can be easily defined in the graphical Screen Editor. Functions actually assigned to buttons in
actual archives are default.
