4.4 How to View a Controller Status

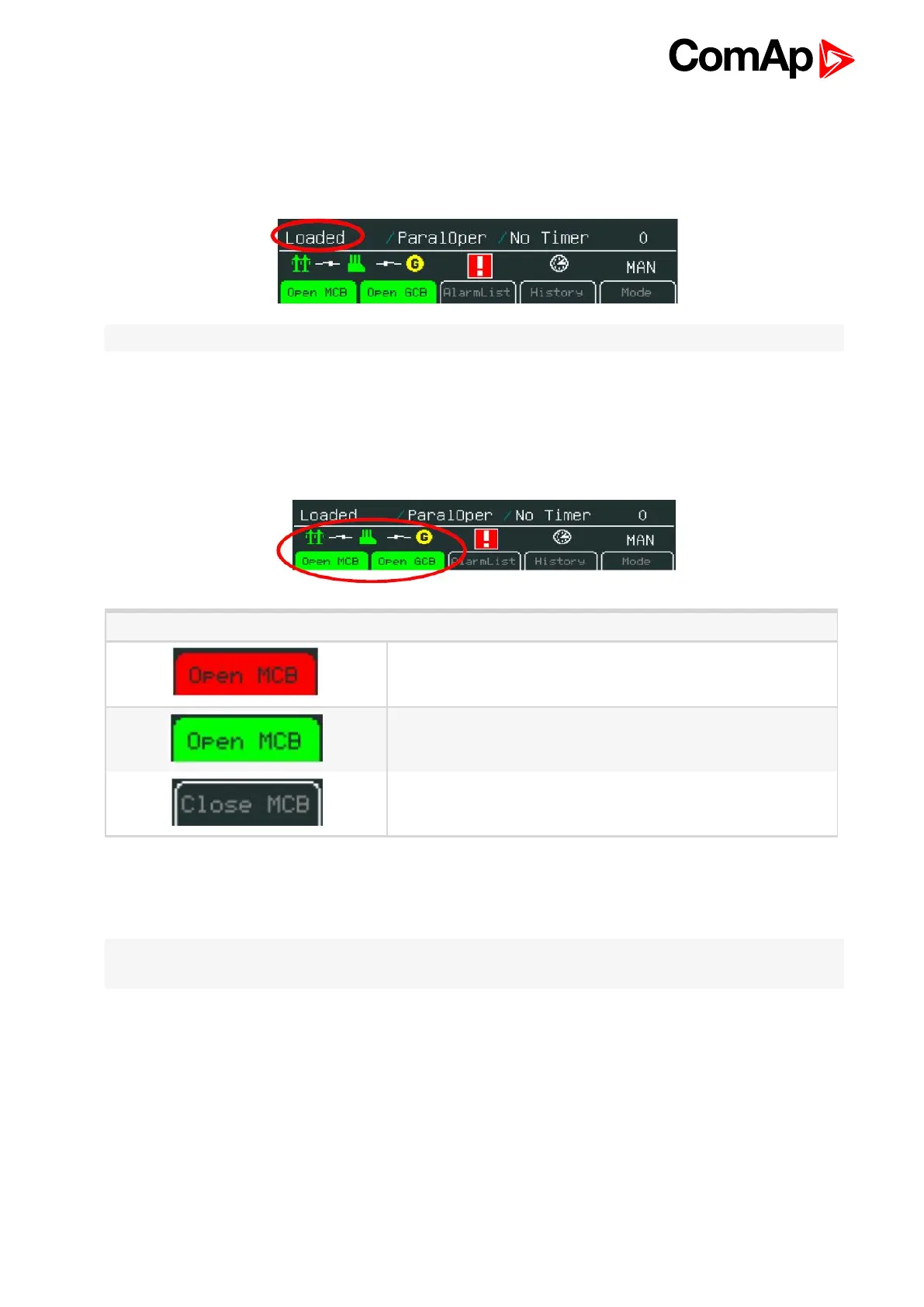

Controller status is displayed in the left bottom part of the screen. Status depends on the external conditions
and it is updated immediately when any condition is changed.
Note: For more information about controller status see relevant Reference guide e.g. IGS-NT-SPtM-2.5.pdf
4.5 How to View a Breaker Status
Breakers status is present in all default controller screens. Single line diagram defines Mains and gen-set
condition.
Status is represented with following colours
Represent breaker failure e.g. MCB fail.
Represents closed breaker.
Represents opened breaker.
Pressing corresponding button results in following actions:
Open MCB (GCB) – command Open MCB (GCB)
Close MCB (GCB) – command Close MCB (GCB)
Note: Mode button and command buttons are disabled when active lock is active. SW button link has gray link
around (when no colour background is used) and dark green or dark red when breaker status is highlighted.
