InteliVision 5 - Global Guide
34
3.7.2 Support of TIER 4 Final standard

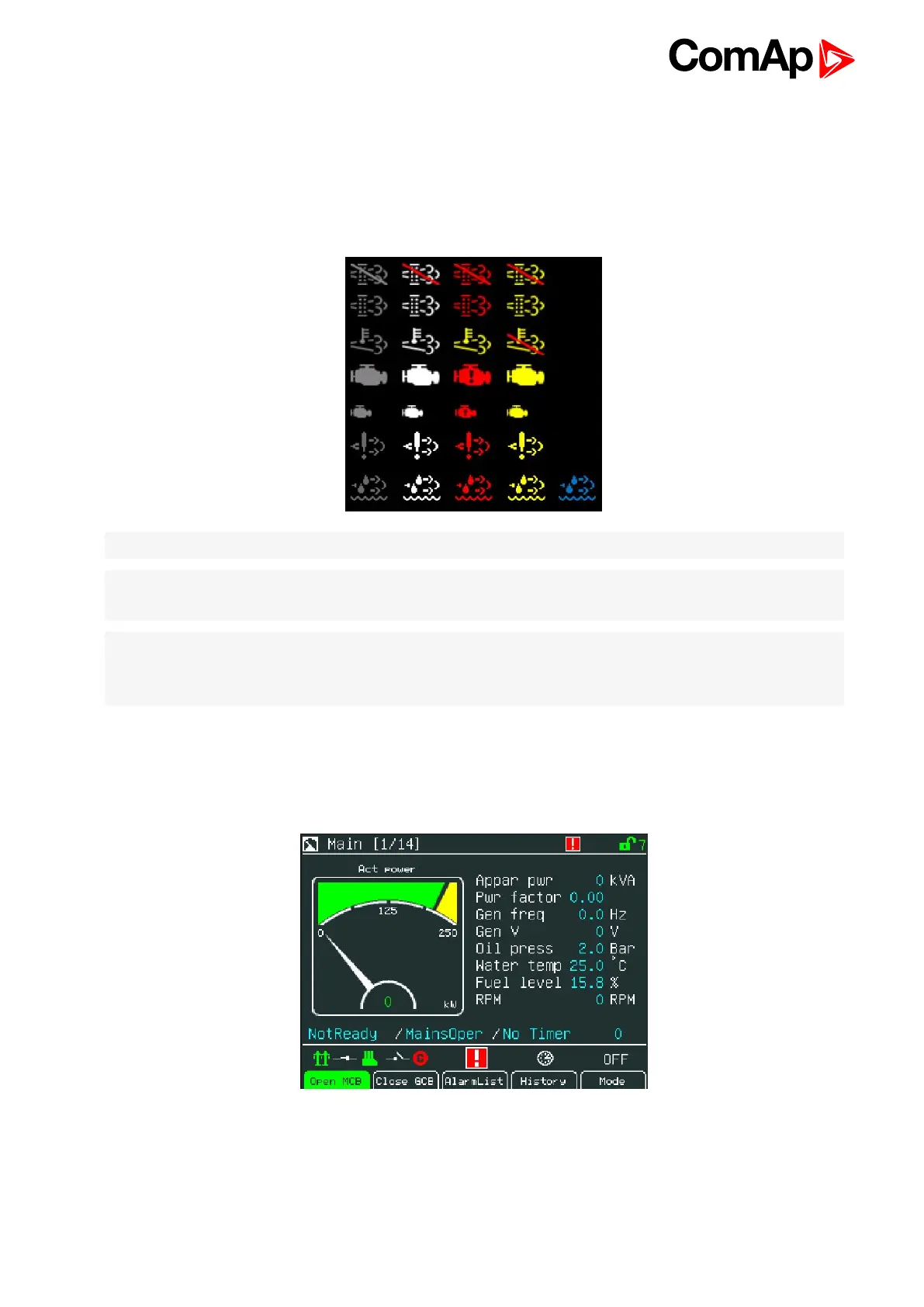

InteliVision 5 is ready to use in projects requiring the TIER4 Final standard. The figure below displays the
illustrative set of supported symbols in all color variations.
They are available to choose in Screen Editor (as Pictogram / GaugeBit / GaugeBitBlink instruments) during the
IV5 screen modification.
Note: New TIER 4 Final symbols are ready to be configured in Screen Editor (the part of the GenConfig).
Note: If the ECU with the support of Tier 4 Final is added to the configuration in the GenConfig software the
Aftertreatment screen is automatically added to the metering screen (in the Screen Editor tab).
Note: To fullfill the Tier 4 Final standard there also must be manually configured DEF level and Soat level
values to the main metering screen (e.g. DigitLong instrument can be used). Some of the controller firmwares
already have these values on the main metering screens preconfigured by default.
3.7.3 Change of all label colour
From 1.1 version the color of all texts and values was changed to be text better readable also from angles. The
text color is white and value color is aqua. See texts and values on right side of figure below.
6 back to Graphical User Interface
