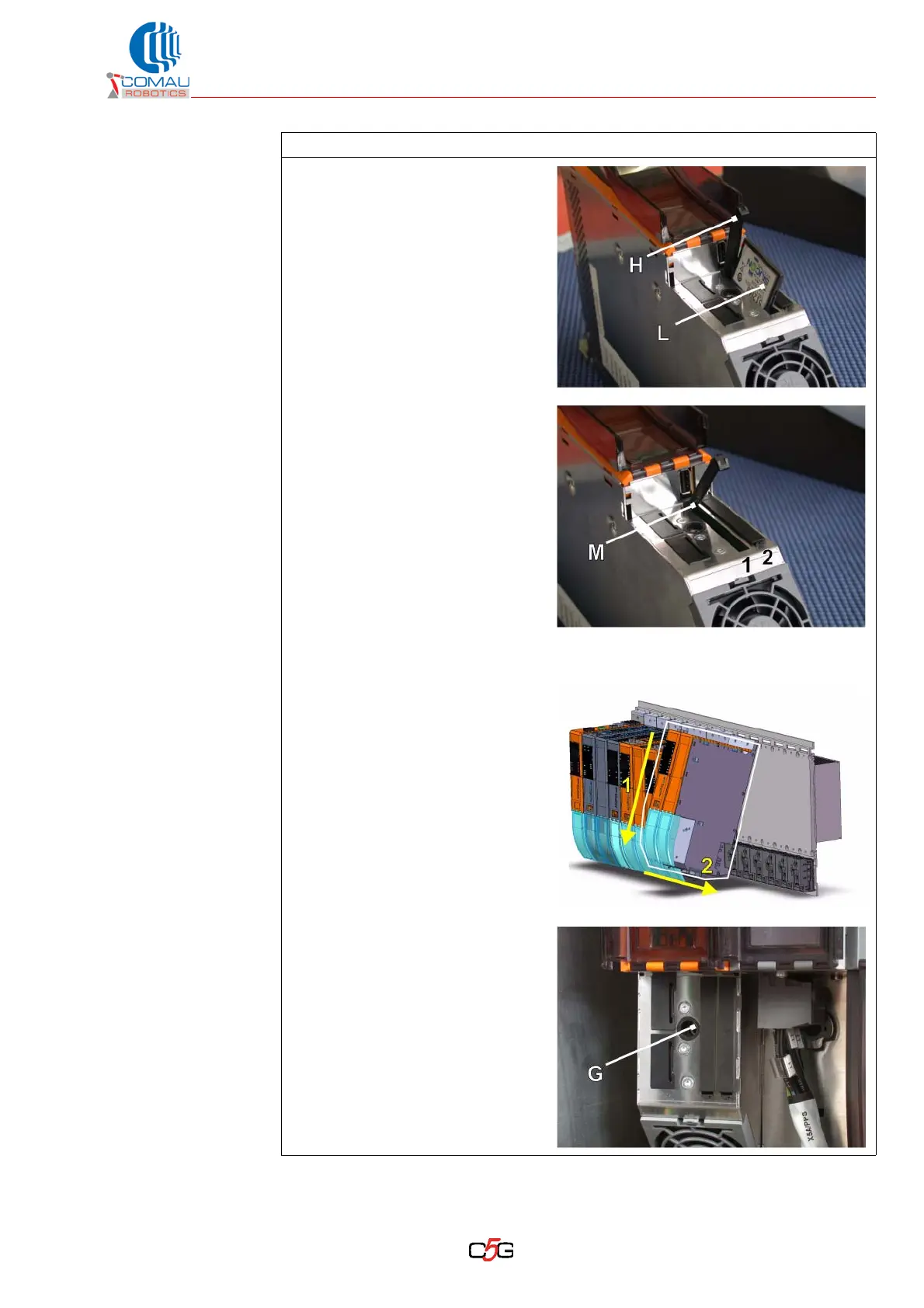

g. Wear the antistatic arm band.
h. Remove the Compact Flash
fitted in slot 1.
i. To carry out the removal
procedure you shall open door
(H), that contemporaneously
lifts the Compact Flash (L).
j. On the new AMS-APC820
module fit the removed Compac
Flash back in slot 1 (M).
k. Make sure the module bottom wall and the supporting area on the dissipator are
both perfectly clean.
l. Mount the new module in the
slot hooking it first from the
upper part, then lower it while
pushing it against the
dissipator.
m. Tighten the Allen screw (G) by
5 Nm.
Operating procedure (Continued)
To Next Page
