76
HS-RC-C5E-AM-IAM_01.fm
00/0211

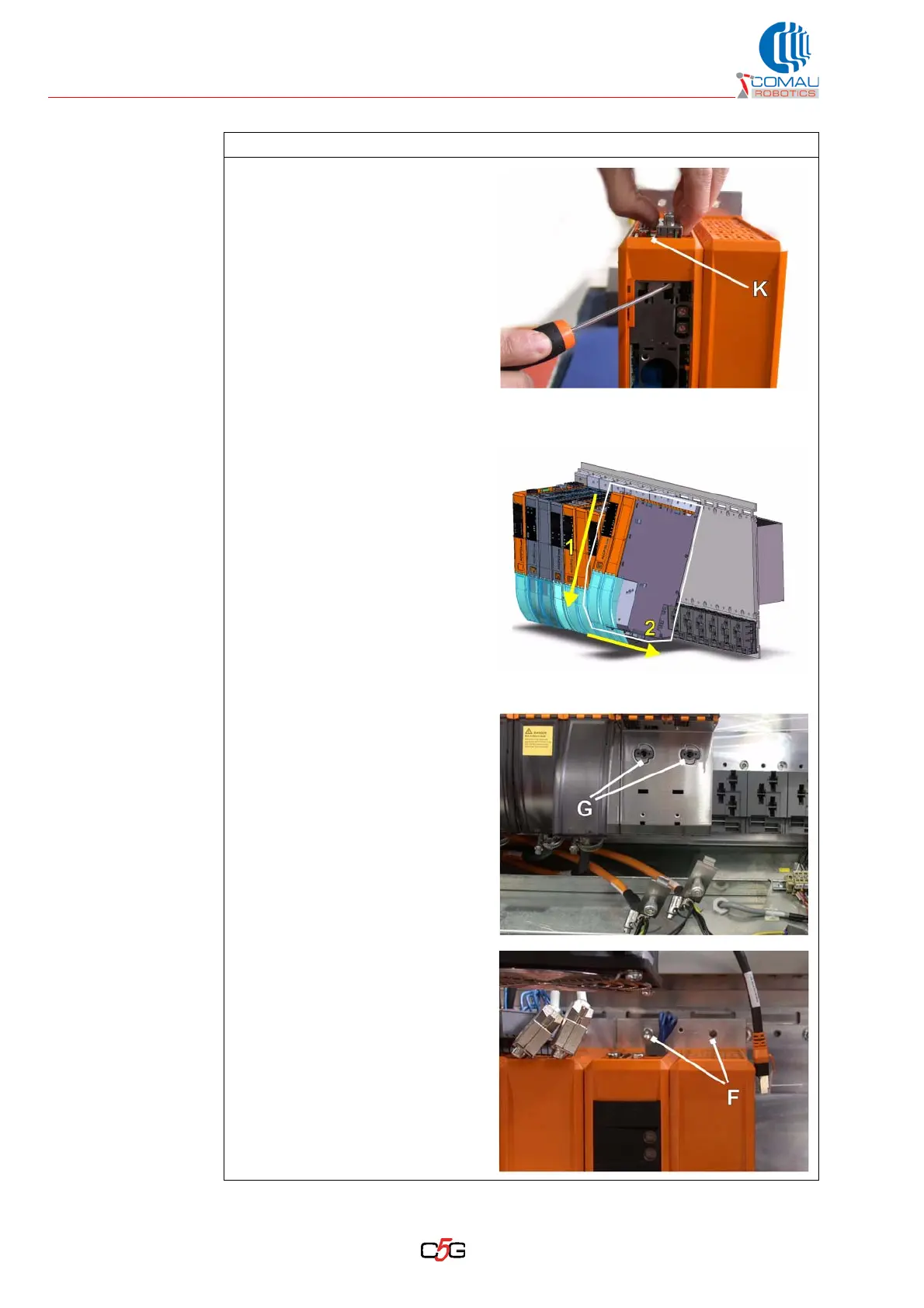

n.2 Remove the module (K) while
keeping on pushing gently.
n.3 Repeat the procedure for the
second module.
o. Make sure the module bottom wall and the supporting area on the dissipator are
both perfectly clean.
p. Mount the new module in the
slot hooking it first from the
upper part, then lower it while
pushing it against the
dissipator.
q. Set the address.
r. Tighten the Allen screws (G) by
5 Nm.
s. Tighten the Allen screws (F) by
5 Nm.
Operating procedure (Continued)
To Next Page
