Maintenance
123
C3M2-OM-EN-02
The oil must also have the correct temperature range for the operating temperature of
the truck. If the operating temperature is outside the range of the standard grade 46
oil, the standard oil should be replaced with the appropriate grade of oil.
The correct grade of oil for the relevant operating temperature range can be
determined using the following table:

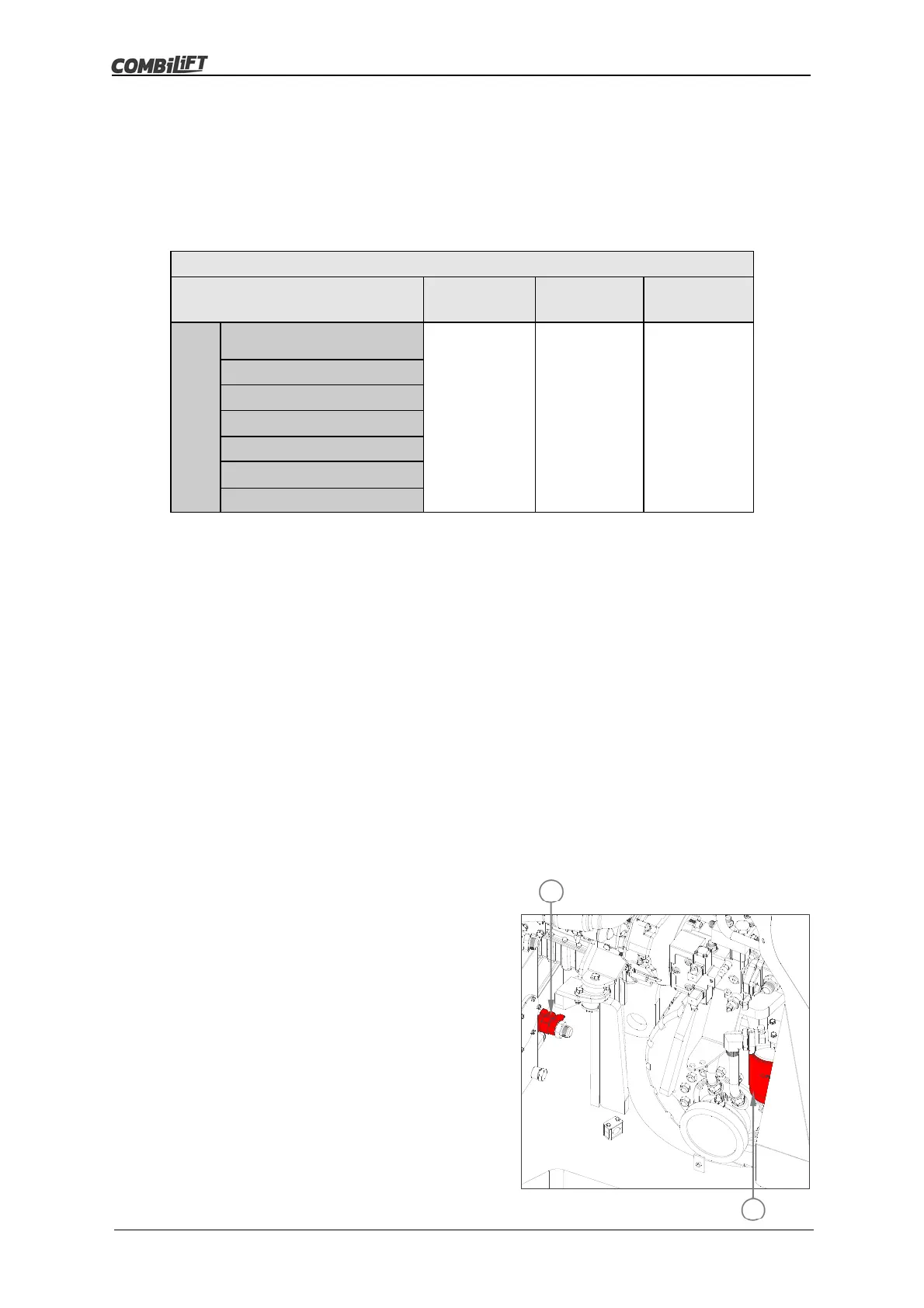

6.15.2 Hydraulic Oil Filters
There are three oil filters in the hydraulic system. These are the:
Suction Filter
Return Filter
Strainer Filter
Suction Filter
The hydraulic oil suction filter is mounted on the rear of the hydraulic tank at the rear
right hand corner of the truck.
The suction filter element must be replaced after the first 100 hours of operation and
then at regular intervals in accordance with the maintenance schedule.
To change the suction filter element:
1. Stop the truck in a designated service
area.
2. Extend the reach to allow access to
the suction filter mounted on the right-
hand side of the cabin.
3. Lower the forks fully and tilt the mast
forward fully.
4. Turn the ignition key switch to the ‘0’
off position, then remove the key.
5. Wait until the suction filter and the
surrounding components are cool
enough to touch, or wear heat resistant
gloves before proceeding.
HYDRAULIC OIL TABLE
FLUID OPERATING
TEMPERATURE RANGE
-11°C to 66°C
12°F to 150°F
-4°C to 74°C
24°F to 166°F
4°C to 89°C
39°F to 193°F
RECOMMENDED FLUIDS
Maxol Multivis
ISO GRADE
32
ISO GRADE
46
ISO GRADE
68
Castrol Hyspin AWH
BP Bartran HV
Mobil Univis N
Mobil DTE 10 Excel
Shell Tellus Oil T
Chevron Rando HDZ
A
B
