Operation Monitoring
44
C3M2-OM-EN-02
1. Engine Coolant Temperature Gauge
2. Fuel Level Gauge *
3. Hour Meter
4. Left Hand Turn Indicator Lights Icon **
5. Auxiliary Hydraulic Function Icon ***
6. Glow Heater Icon *
7. Low Fuel Warning Icon
8. Engine Fault Warning Icon
9. Side Road Lights Icon **
10. Head Lights Icon **
11. Low Engine Oil Pressure Warning Icon
12. Battery Charge Warning Icon
13. Park Brake Icon
14. Right Hand Turn Indicator Lights Icon **
15. Neutral Icon
16. Forward Drive Direction Icon
17. Reverse Drive Direction Icon
18. Left Drive Direction Icon
19. Right Drive Direction Icon
20. Seat Interlock Icon
21. Seat Belt Interlock Icon ****
22. Hydraulic Function Lock/Unlock Button Marker Icon
23. Menu Button Marker Icon
24. Hazard Warning Lights Button Marker Icon **
25. Work Lights Button Marker Icon
26. Diesel Particulate Filter (DPF) Regeneration Icon *
27. Exhaust Emissions System Fault/Malfunction Icon *
28. Exhaust Temperature Warning Icon *
29. Automatic DPF Regeneration Disabled Icon *
30. Warning Icon
31. Stop Icon
4.2 MDC Home Screen
The MDC home screen displays information concerning the operating condition of the
truck and engine in the form of graphical symbols.

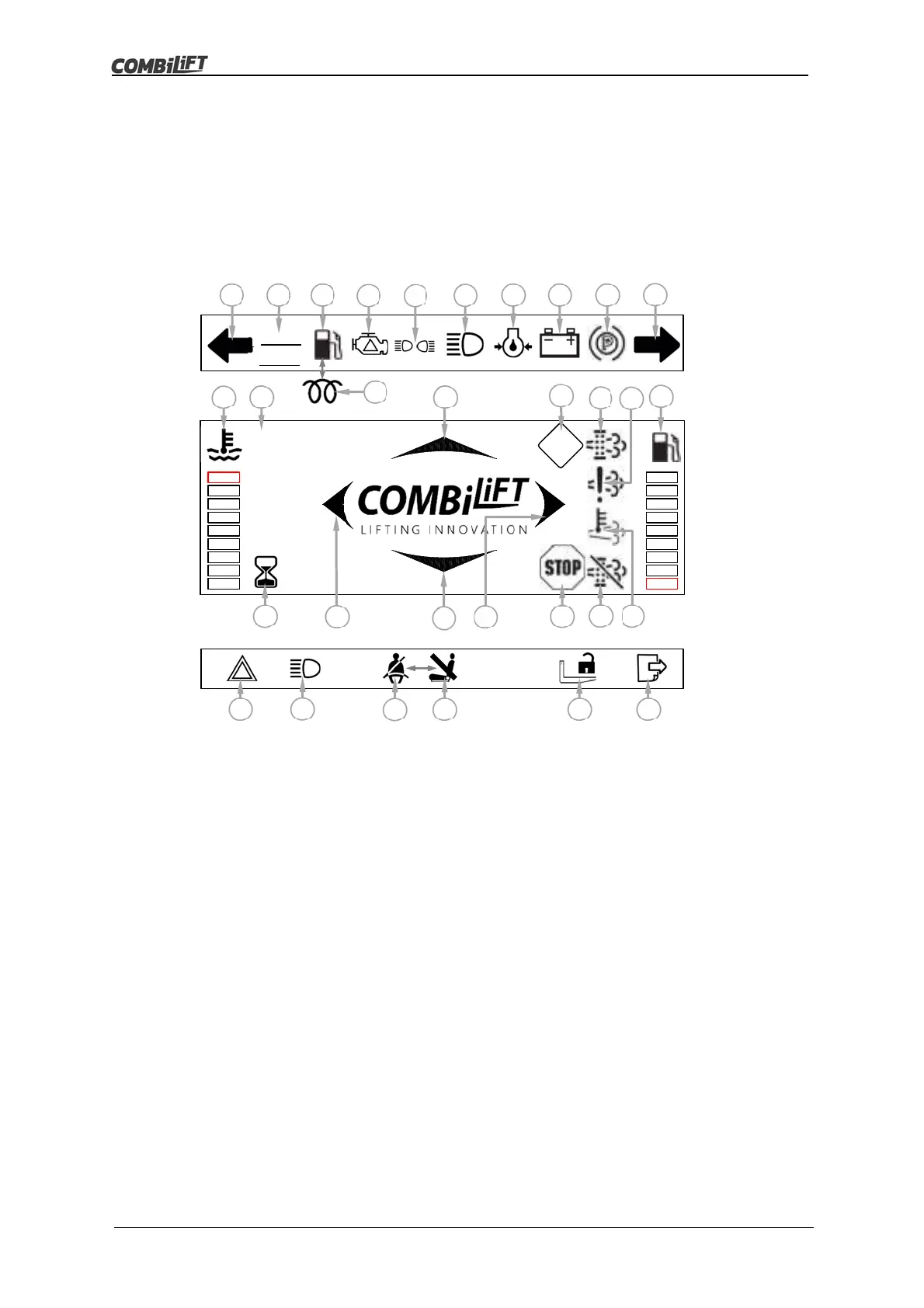

Figure 4.2 below shows every instrument and icon that can possibly be displayed on
the MDC home screen. Some of these instruments and icons are always visible while
others are only displayed under certain circumstances.
Figure 4.2
* Diesel engine powered trucks only.
** Only applies if road lights have been fitted.
*** Only applies if auxiliary hydraulic mast/fork functions have been fitted.
**** Only applies if a seat belt switch has been fitted.
!
UX1
UX2
7 9 10 11 12 5
14
8 13 4
00.00 Hrs
!
1
26 27
30
2
16
19
18
28
17
31
3 29
22 20
21
23
24
25
N
6
15
