Warning
Do not adjust the angle of the steering column when the truck is in
operation.
Stop the truck and apply the park brake before adjusting the angle of the
steering column.
3.2.1 Steering Wheel / Column
The Combilift truck has both front and rear-end steering.
In standard (0°) travel mode the front swivel arms are fixed and the truck is
steered by turning the rear swivel arm.
In sideward (90°) travel mode, the rear swivel arm is fixed and the truck is
steered by turning the front swivel arms.
The steering wheel is equipped with a spinner knob (A) for easier steering.
The angle of the steering column is adjustable to increase driver comfort.
Steering In Standard (0°) Travel Mode
When driving forwards, turn the steering wheel clockwise to turn the truck
clockwise, turn the steering wheel anticlockwise to turn the truck anticlockwise.
When driving in reverse, turn the steering wheel clockwise to turn the truck
anticlockwise, turn the steering anticlockwise to turn the truck clockwise.
Steering In Sideward (90°) Travel Mode
When driving in sideward travel mode, turn the steering wheel clockwise to turn
the truck clockwise, turn the steering wheel anticlockwise to turn the truck
anticlockwise.
The same holds true for either left or right travel in sideward mode.

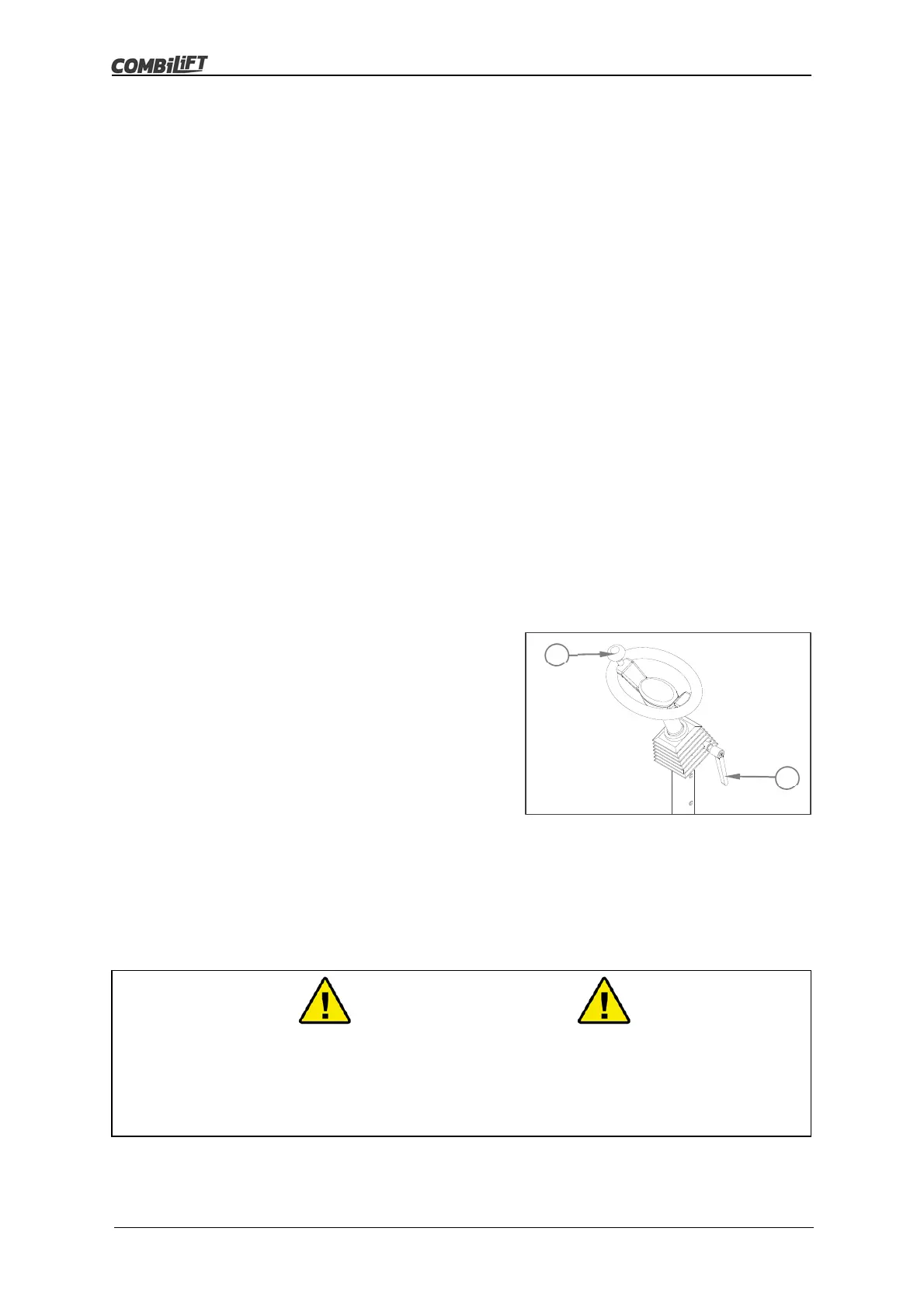

Adjusting The Steering Column Angle
Each operator should adjust the angle
of the steering column so that they can
comfortably reach the steering wheel
when sitting in the seat with their back
against the backrest.
The seat and steering column should
be adjusted simultaneously to achieve
the optimum driving position. See
section 3.2.4 ‘Operator’s Seat’ on page
30 for instructions on how to adjust the
seat.
To adjust the angle of the steering column, loosen the angle adjustment handle
(B) on the right hand side of the column by turning the handle anticlockwise.
Move the steering wheel to the optimum position.
Lock the steering column in position by turning the handle clockwise until tight.
