Operation
72
C3M2-OM-EN-02
Note
Hydraulic oil is harmful to the environment. Do not allow hydraulic oil to be
released into the ground, down a drain or into a stream, pond or lake.

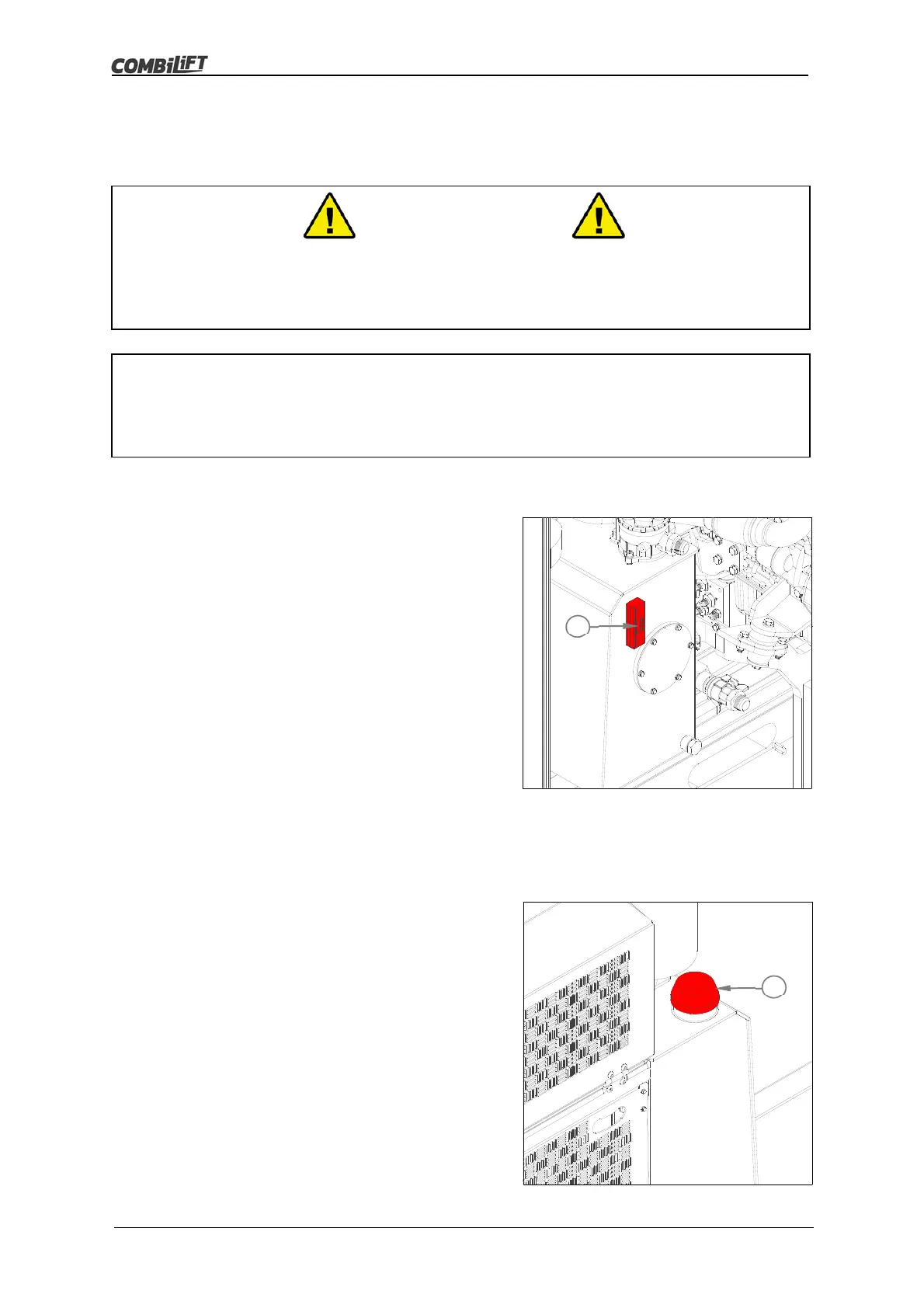

5.6 Checking Hydraulic Oil Level
The hydraulic oil level is monitored via a sight glass on the hydraulic tank.
To Check the Hydraulic Oil Level:
1. Stop the truck on level ground.
2. Retract the reach fully, lower the forks
fully, tilt the mast forward fully and
retract all cylinders on any attachments.
3. Turn the ignition key switch to the ‘0’
off position, then remove the key.
4. Check the oil level on the sight glass
(A) on the left hand side of the
hydraulic tank.
5. The oil level should be approximately
half way between the top and bottom of
the sight glass.
6. If necessary top up with oil of the same grade and quality as that in the tank.
See section 6.15 ‘Hydraulic Oil System’ on page 122.
To Add Hydraulic Oil:
1. Park the truck in accordance with the
recommended parking procedure.
2. Lower the forks fully, tilt the mast
forward fully and retract all cylinders on
any attachments.
3. Locate the filler cap (B) on the right
hand side of the hydraulic tank.
4. Unscrew the filler cap.
5. Add hydraulic oil through the filler
neck until the oil level is half way
between the top and bottom of the
sight glass (A).
6. Refit the filler cap securely.
Caution
Switch off the engine before working on the hydraulic system.
Protective gloves and goggles must be worn when handling hydraulic oil.
Do not swallow. Ensure sufficient ventilation. Ensure cleanliness.
B
A
