Components & Controls
34
C3M2-OM-EN-02
Warning
Risk of crushing! Only touch the lever at the indented grip, do not reach
back under the lever.
Note
The Grammer seat adjustments may vary slightly to those shown below
depending on the model of Grammer seat that has been fitted.
The lumbar support option is not applicable to all Grammer seats.

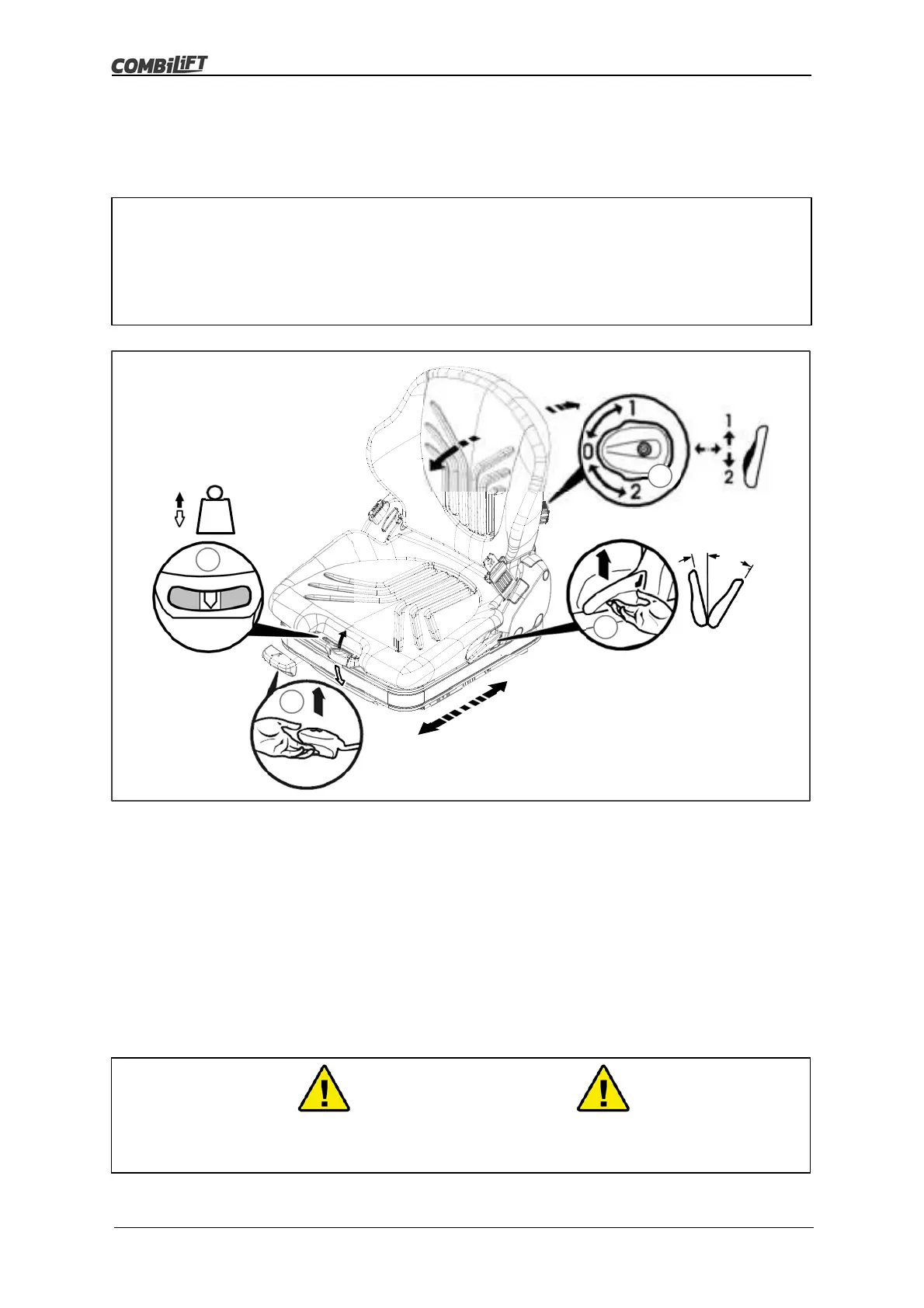

3.2.4.2 Grammer Seat Adjustments
The seat adjustments below apply only if a Grammer seat has been fitted. Other
optional seats may be fitted to suit the needs of individual customers.
A. Fore/Aft Adjustment
B. Weight Adjustment
C. Backrest Angle Adjustment
D. Lumbar Support Adjustment
A. Fore/Aft Adjustment
To slide the seat forward or back lift the seat slide lever (A) to release the catch
then slide the seat to the desired position.
After the adjustment, the locking lever must latch into the desired position with
an audible click. It should not be possible to move the seat when it is locked.
Do not lift the locking lever with any part of the leg.
max.
min.
B
A
C
D
