Components & Controls
36
C3M2-OM-EN-02

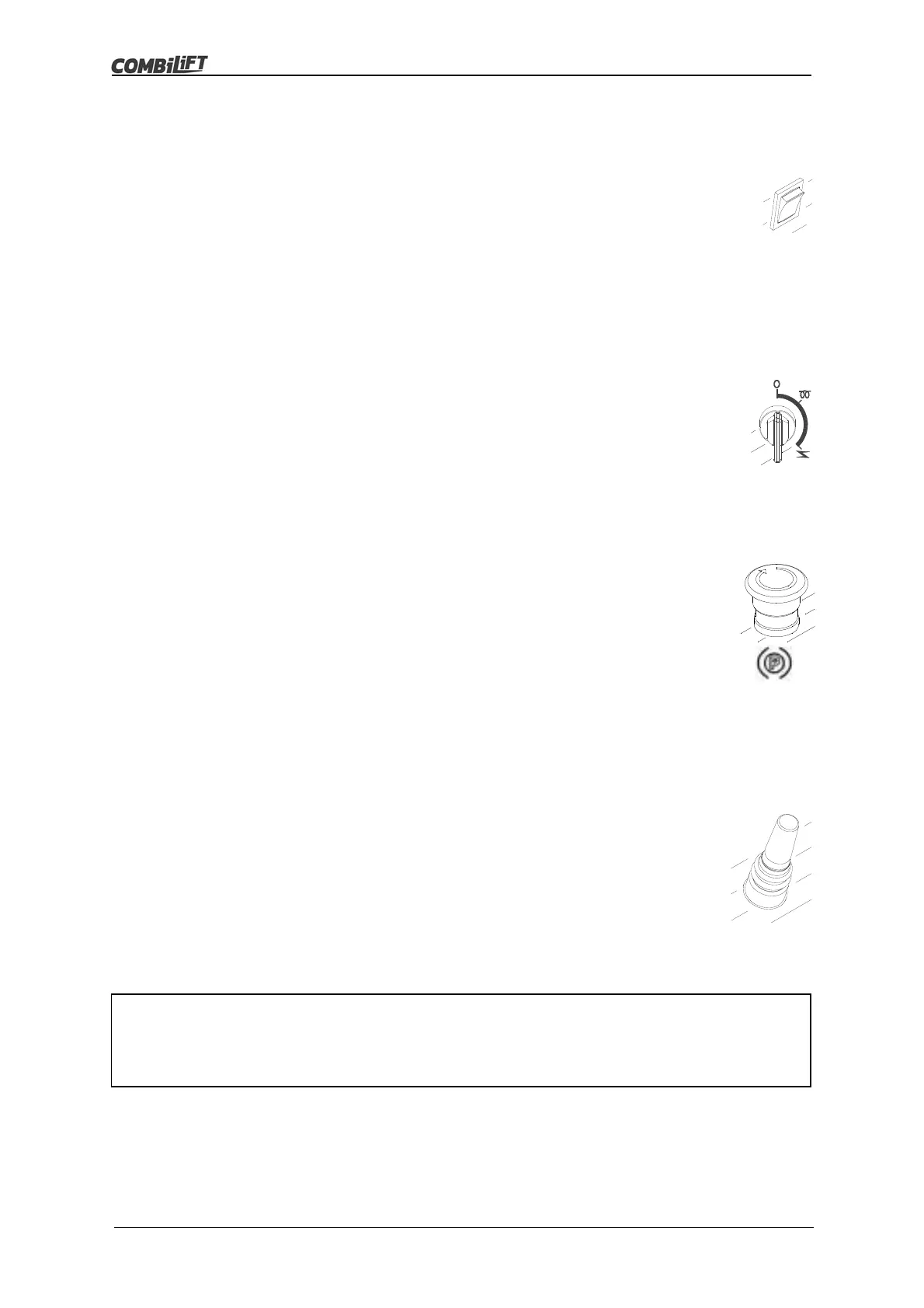

3.2.5 Switches/Buttons
Window Wiper Switches
The window wiper switches are two-position rocker switches.
There is one of these switches on each of the two wiper motors
located in the front of the operator’s cabin. One in the top left
corner and another in the top right corner. See Item 8 in figure
3.2 on page 28.
Flip the switch on the wiper motor to the ‘ON’ position to activate
the associated wiper.
Ignition Key Switch
This is a three-position key switch located on the left hand side
of the dash. See Item 17 in figure 3.2 on page 28.
It is used to power up the trucks electrical system and to start
and switch off the engine.
See 5.9 ‘Starting the Engine’ on page 74 and 5.10 ‘Stopping the
Engine’ on page 76.
Park Brake Switch
The park brake switch is a latching push button switch located
on the dash. See Item 16 in figure 3.2 on page 28.
To APPLY the park brake, press the button. The button should
lock in the closed position and the park brake indicator - on the
dash cluster - will illuminate to alert the operator that the park
brake is applied.
To RELEASE the park brake, rotate the button clockwise. It
should pop up into the open position.
The Machine will NOT drive with the park brake on.
Four-Way Direction Switch
The four-way direction switch is a five position lever switch
located on the left hand side of the dash. See Item 19 in figure
3.2 on page 28.
It can be set to forward, reverse, left, right, or neutral.
In order to select a direction of travel move the lever in the
desired direction e.g. to drive left move the lever to the left.
Always return the lever to the neutral position when the drive is
not being used.
Note
The truck will NOT start unless the direction control switch is in the neutral
position.
