Combilift Ltd C2500-C3000CB O&S Manual
1-2
C2500CB-OM-EN-11
6
7
1
2
3
4
8
1
0
9
5
1
3
1
4
1
5
1
6
1
7
1
8
1
9
2
0
1
1
1
2
2
1
2
2
2
3
2
4

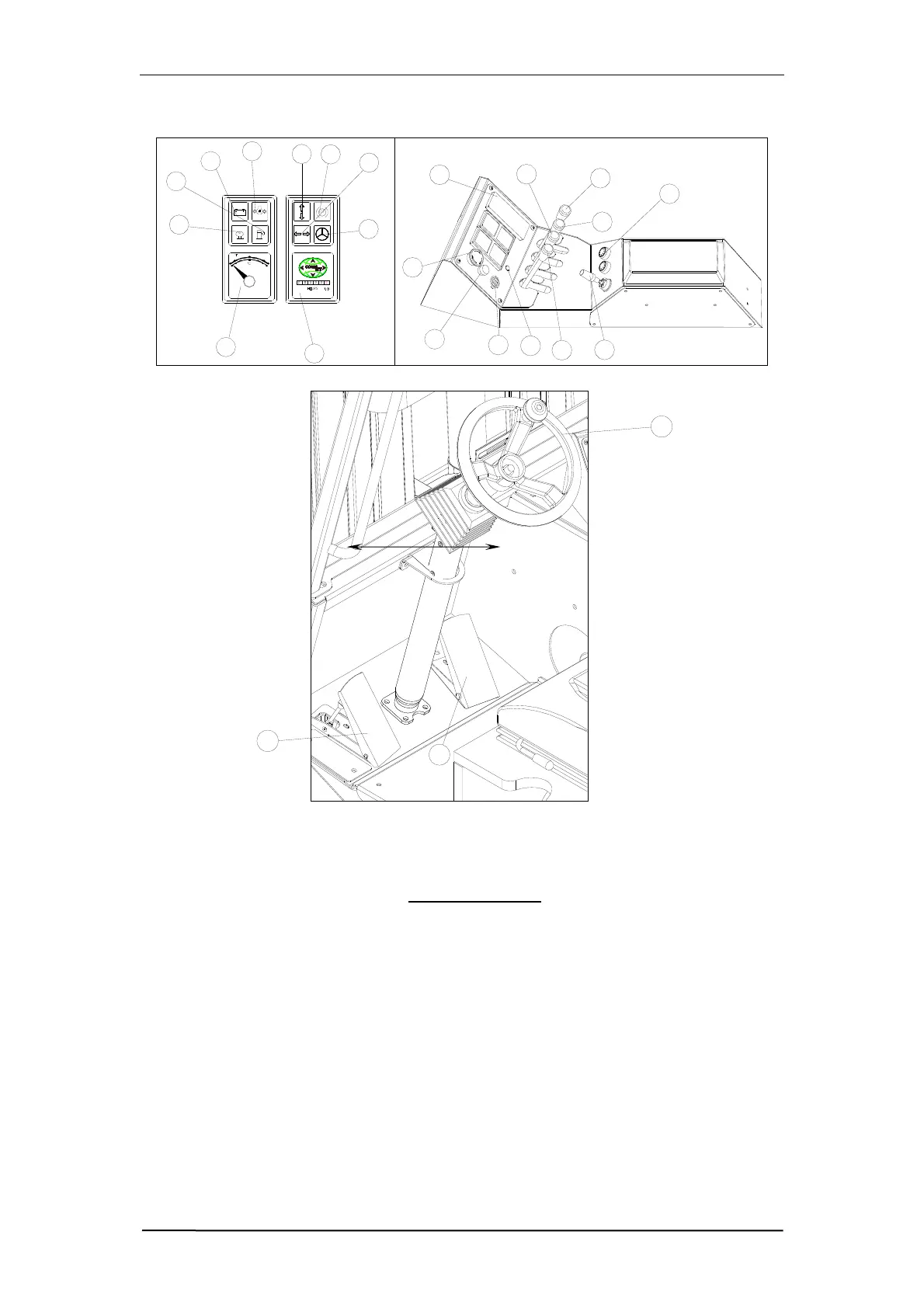

Figure 2: Machine Control Layout – Rear View
Control Layout
1. Ignition 2. Light Switch
3. Parking Brake 4. Fuse Box
5. Horn Button 6. Direction Control lever
7. Lift Control Lever 8. Tilt Control Lever
9. Sideshift Control Lever 10. Fork positioner Control Lever
11. Pre Heat indicator 12. Low Level Fuel Indicator
13. Battery Charge Indicator 14. Oil Pressure Indicator
15. Sideward Mode Indicator 16. Parking Brake Indicator
17. Normal Mode Indicator 18. Carousel Indicator
19. Hour Meter 20. Water Temperature Gauge
21. Engine Management Light 22. Steering Wheel
23. Inching Pedal 24. Accelerator Pedal
