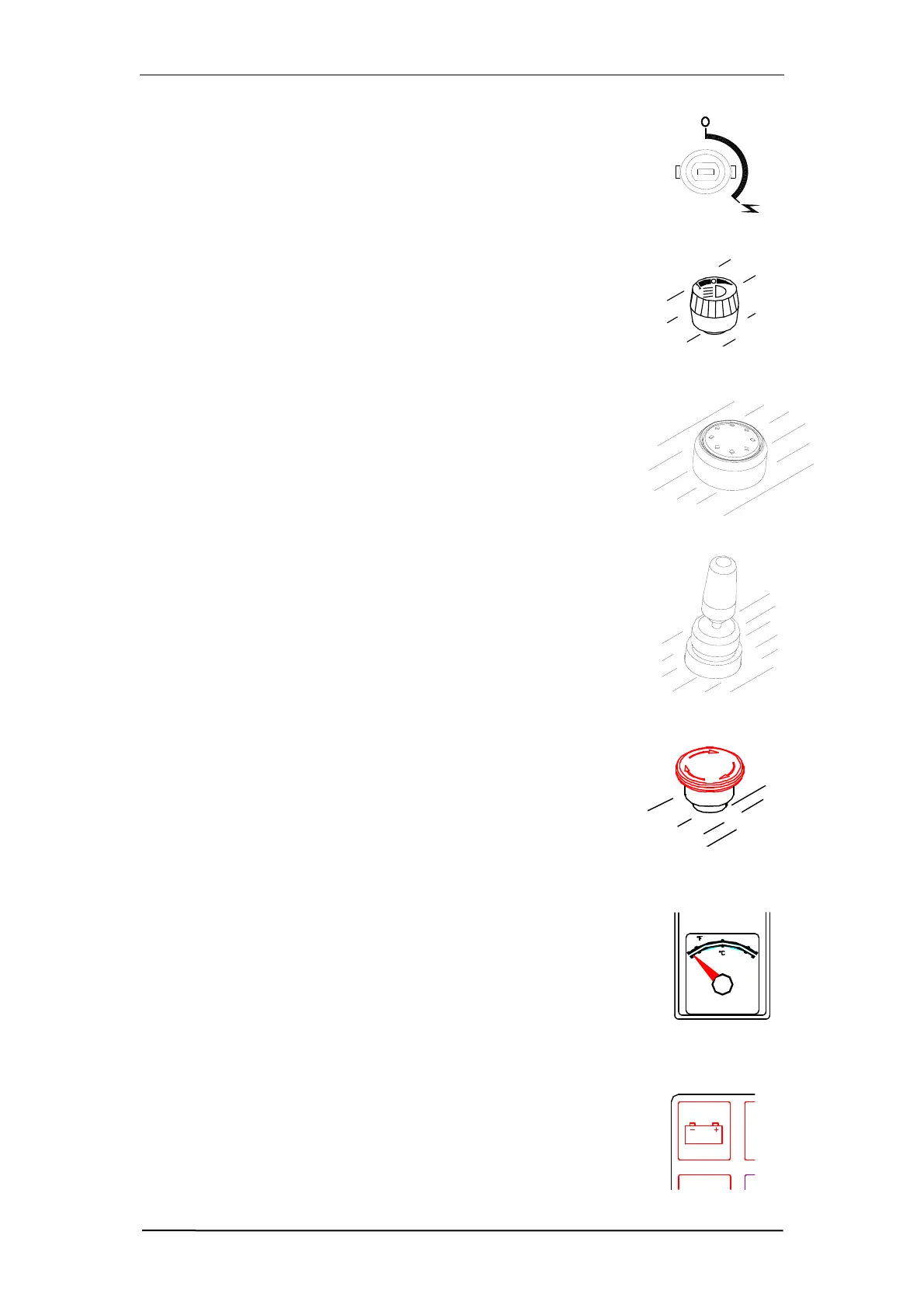

Ignition/Starter Switch
This is a two-position key switch that
isolates the electrical system when in the
‘OFF’ position.
Light Switch
Illuminates all work lights, dash light and cabin light.
To illuminate all lights, turn the switch clockwise.
To extinguish all lights, turn the switch anti-clockwise.
Horn Button
The horn button is located on the dash beside the
Directional control lever. Press to operate.
Direction control switch
A four-position switch which will engage any of the four
directions of travel.
To operate push lever in the desired direction of travel.
Always ensure that the Direction Control Switch to the
neutral position after bringing the truck to a halt.
Parking Brake
To APPLY brakes, PUSH button.
To RELEASE brakes, TURN BUTTON CLOCKWISE.
The machine will not drive with Parking Brake ON.
Water Temperature gauge
This gauge Monitors the temperature of the engine
cooling system
The truck must not be operated if the gauge pointer
moves to the red area as this indicates a fault in the
cooling system
Hour Meter
The hour meter records how many hours the truck has
been operating for in hours and tenths of an hour.
Use meter to determine maintenance intervals
