Operation Instructions
5-6
each sequence.
When it is set as [3×4+1R], 12 leads are recorded in 3 channels and 4 sequences, record 2.5
seconds for each sequence and add 1 channel of rhythm lead waveform.
When it is set as [3×4+3R], 12 leads are recorded in 3 channels and 4 sequences, record 2.5
seconds for each sequence and add 3 channels of rhythm lead waveform.
When it is set as [6×2], 12 leads are recorded in 6 channels and 2 sequences, record 5 seconds for
each sequence.
When it is set as [6×2+1R], 12 leads are recorded in 6 channels and 2 sequences, record 5 seconds
for each sequence and add 1 channel of rhythm lead waveform.
When it is set as [12×1], 12 leads are recorded in 12 channels, record 10 seconds at the same time.
When it is set as[12×1+T], 12 leads are recorded in 12 channels, record 5s for the sequence from I
to V3, record 10s for the sequence from V4 to V6.

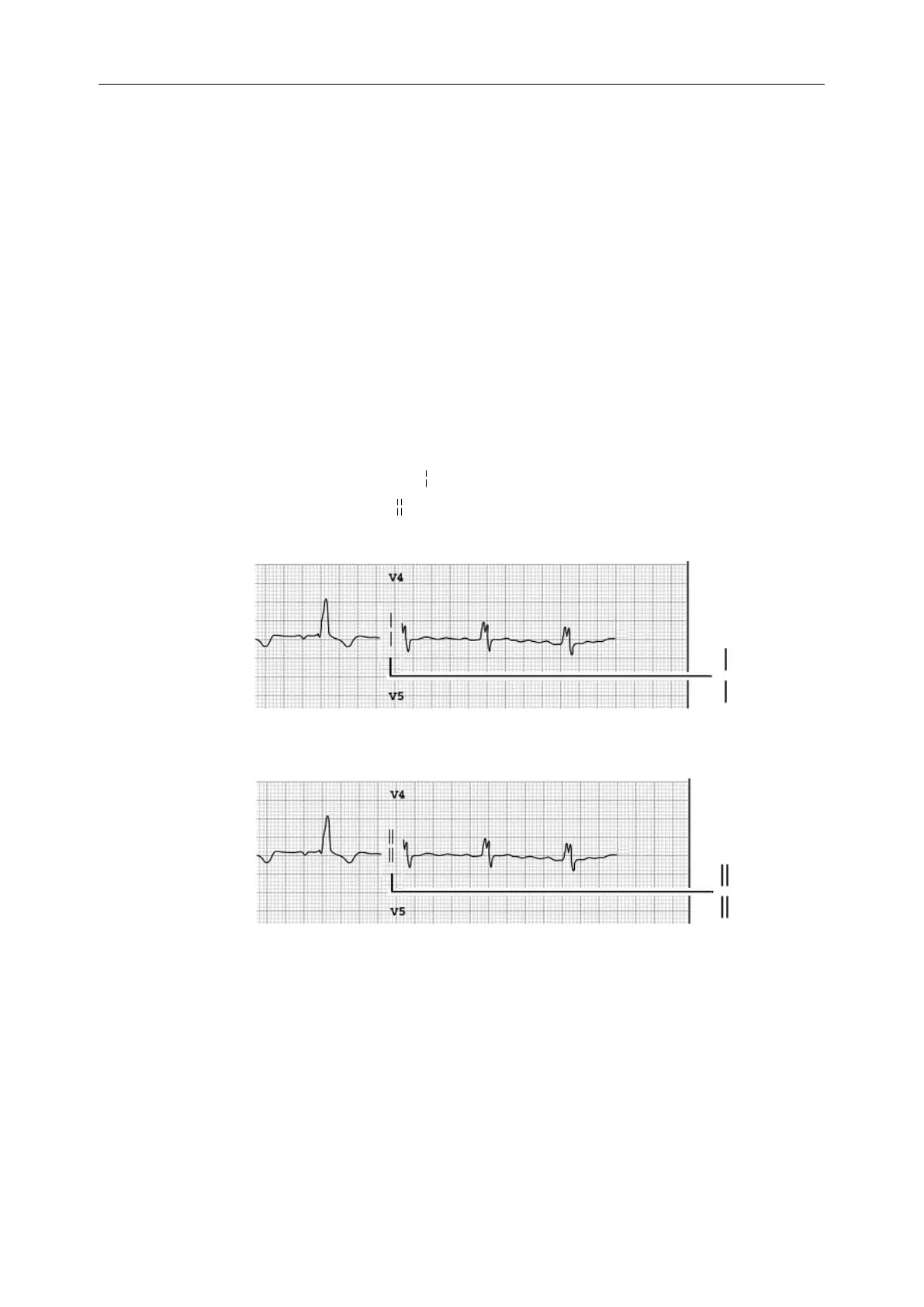

3) [Sample Order]: [Simultaneous] and [Sequential];
In the sequential sampling of each group, “ ” shows in the place of printing lead waveform; and in the
simultaneous sampling of each group, “ ” shows in the place of the printing lead waveform. As shown
in the following figure:
Figure 5-5 Sequential Sampling of Each Group
Figure 5-6 Simultaneous Sampling of Each Group
4) [Sample Mode]: [Real-time] and [pre-sample].
When the sampling mode is set as [real-time], ECG data of 10 seconds after pressing the
[START/STOP] key will be recorded and output.
When the sampling mode is set as [pre-sample], once the leads connect with the patient the
ECG data will be collected and it is not necessary to wait for the user to press the
[START/STOP] key to collect the ECG data. After the user press the [START/STOP] key,
ECG data of 10 seconds before pressing the key will be recorded and output.
