System Settings
4-8

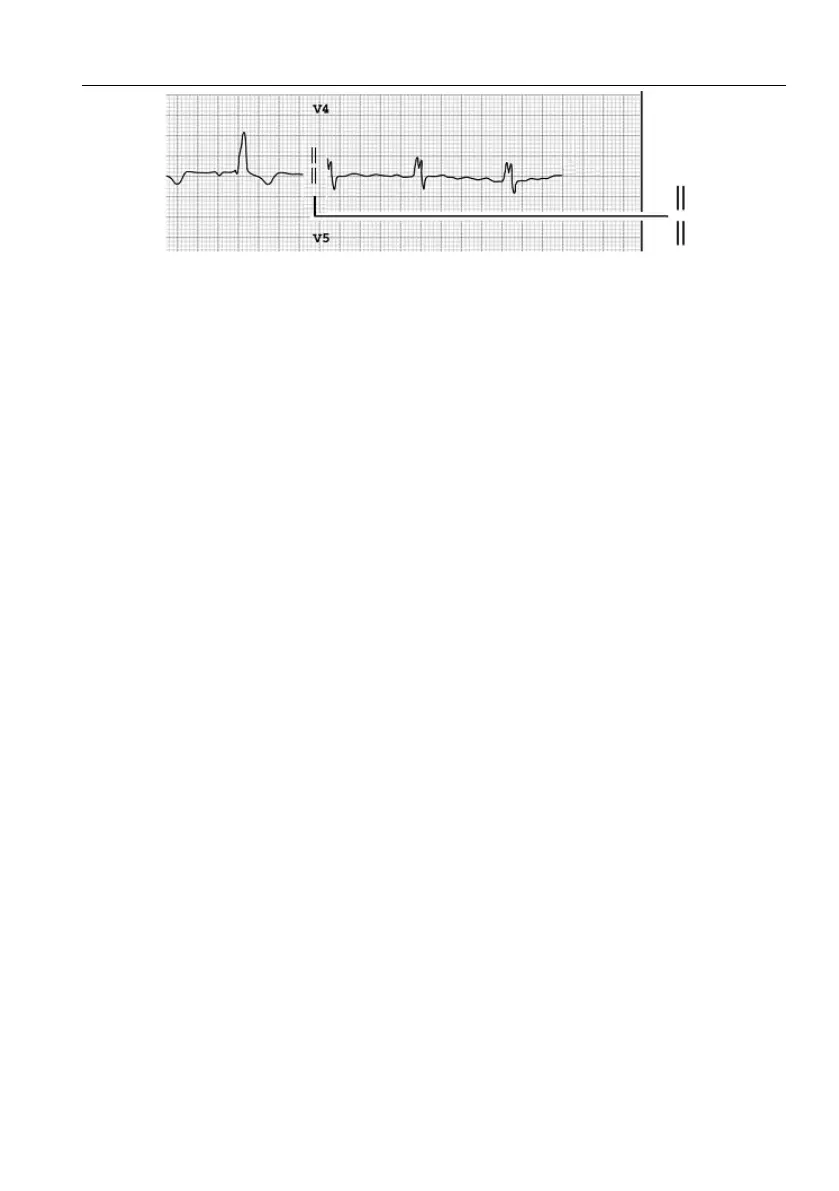

Figure 4-4 Simultaneous Sampling of Each Group
[ECG Criteria]: select the naming criteria of lead wires (IEC and AHA)
[IEC]：When this standard is set, then the lead on the lead map will be named
as：C1, C2, C3, C4, C5, C6, R, L, N, F.
[AHA]：When this standard is set, then the lead on the lead map will be
named as：V1, V2, V3, V4, V5, V6, RA, LA, RL, LL.
[Rhythm Lead 1/2/3]: the selected rhythm leads can be printed while
recording ECG. Any lead of [І], [II], [III], [aVR], [aVL], [aVF], [V1], [V2],
[V3], [V4], [V5], [V6] can be selected as the rhythm lead of [Rhythm Lead 1],
[Rhythm Lead 2] and [Rhythm Lead 3].
[Rhythm Lead Type]: [1 Channel] and [3 Channel]
When select [1 Channel], only the lead of “Rhythm Lead 1” can be set and
any lead of [І], [II], [III], [aVR], [aVL], [aVF], [V1], [V2], [V3], [V4], [V5],
[V6]can be selected as the rhythm lead; when select[3 Channel], any lead of
[І], [II], [III], [aVR], [aVL], [aVF], [V1], [V2], [V3], [V4], [V5], [V6] can be
selected as the rhythm lead of [Rhythm Lead 1], [Rhythm Lead 2] and
[Rhythm Lead 3].
Under rhythm mode, when the [Rhythm Lead Type] is set as [1 Channel], 60s
rhythm waveform of rhythm lead selected in [Rhythm Lead 1] will be
recorded and output; when the [Rhythm Lead Type] is set as [3 Channel],
total 60s rhythm waveform of three rhythm leads respectively selected in
[Rhythm Lead 1], [Rhythm Lead 2] and [Rhythm Lead 3] will be recorded
To Next Page
