Chapter 3 Principle Introduction

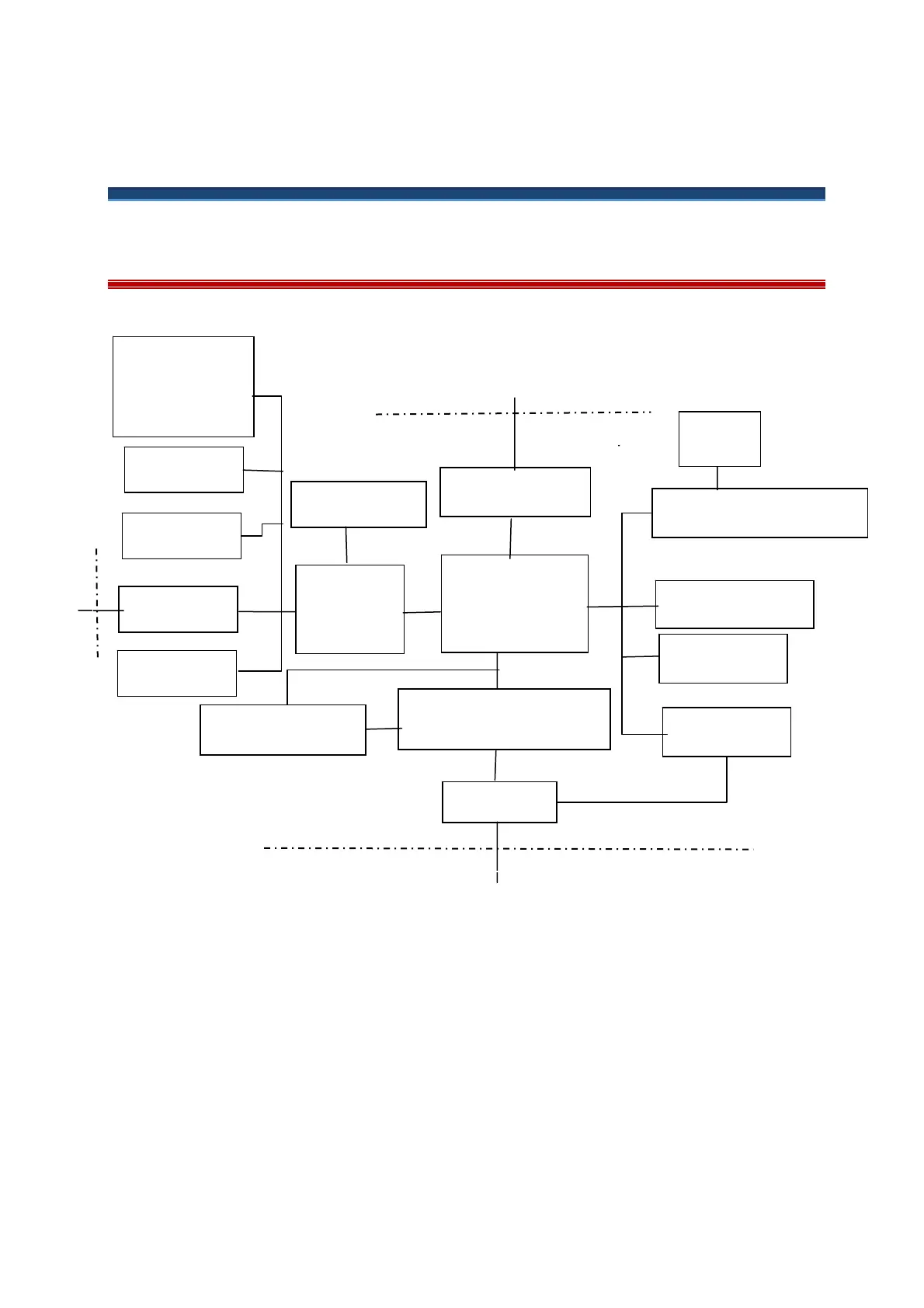

3.1 NC5 System Principle Block Diagram
AC input
Thermometer
wireless receiver
module
Main board
LCD screen
Touch screen
Key board
Alarm lamp
Recorder/Printer
DC power module
(Including SPO2
board)
NIBP module
Power on/off button
AC power module
Rear shell interface board
Speaker
Battery
Side panel connection board
ECG board
Side panel
To patient
Patient
