Comen NC5 - Removing the Printer

37
7.3 Removing the Printer

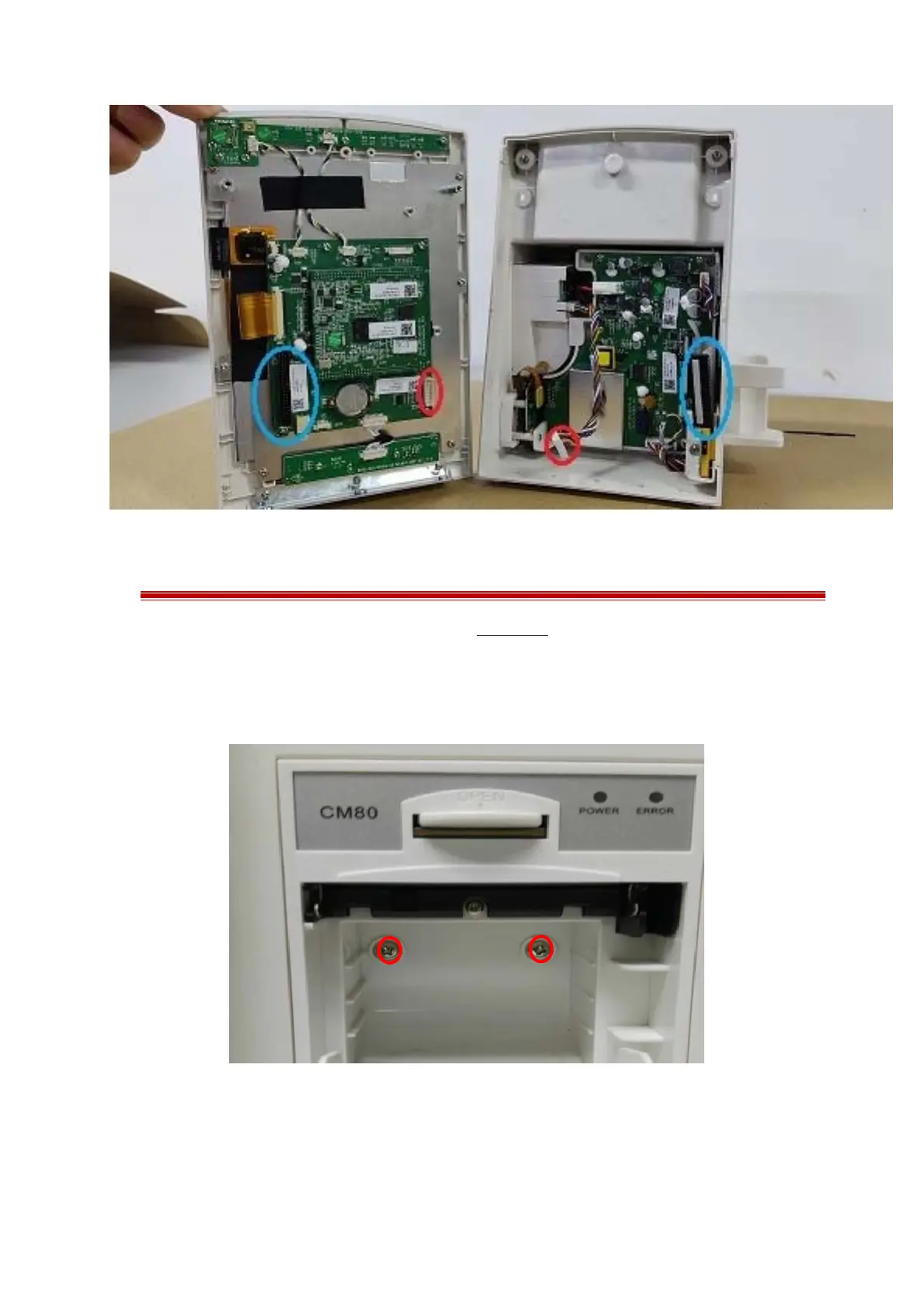

1. Separate the front and rear housing as described in Chapter7.2;
2. Remove the printer cable which connects to main board;
3. Open the print cap then remove the 2PB 3.0×6.0mm screws and then take off the printer;
