42

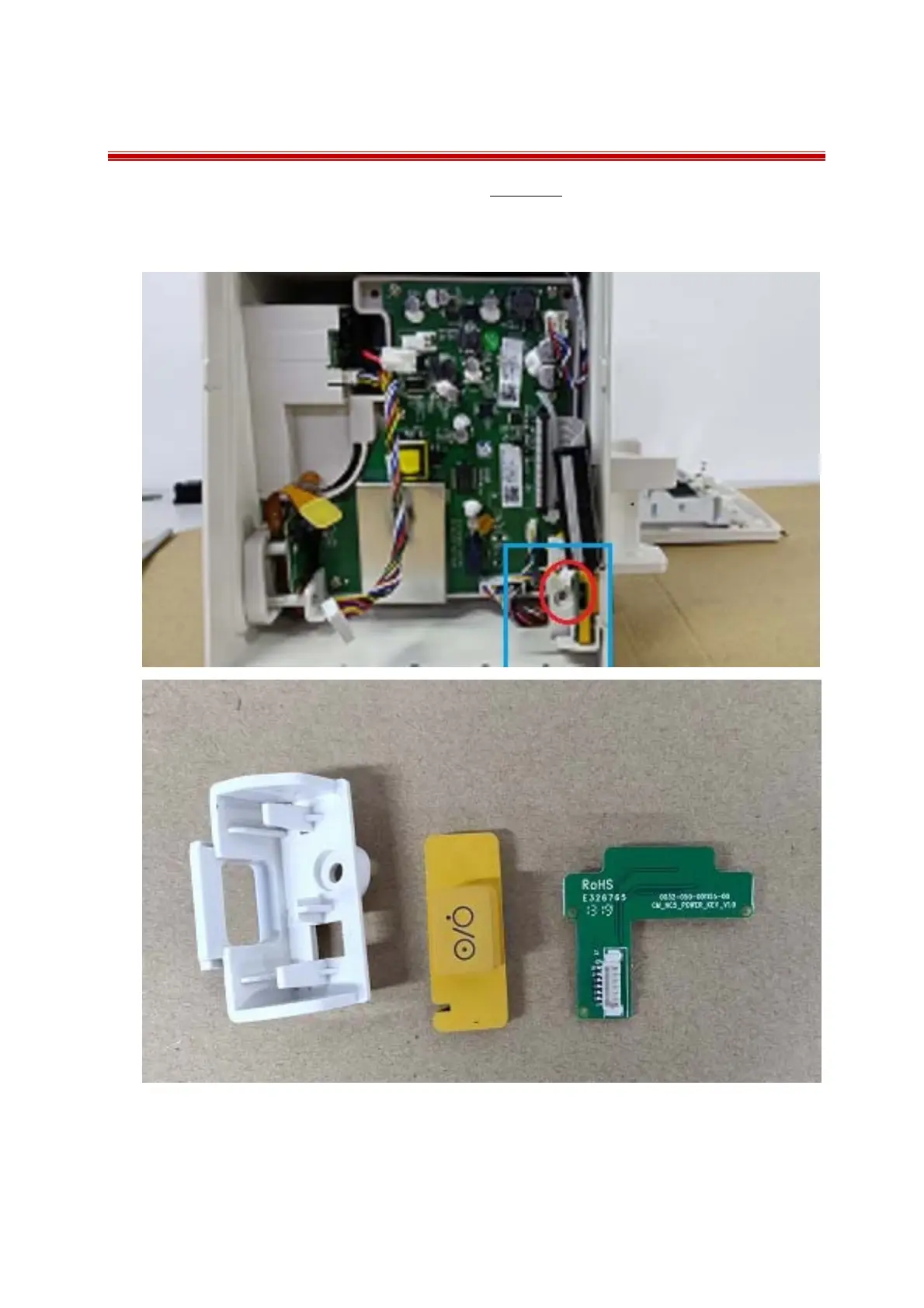

7.9 Removing the power switch board
1 Separating the front and rear housing as described in Chapter7.2;
2 Disconnect cable on power switch board and 1PB3.0×6.0mm screw from power switch board;
3 Take out the frame and get the board out.
