36

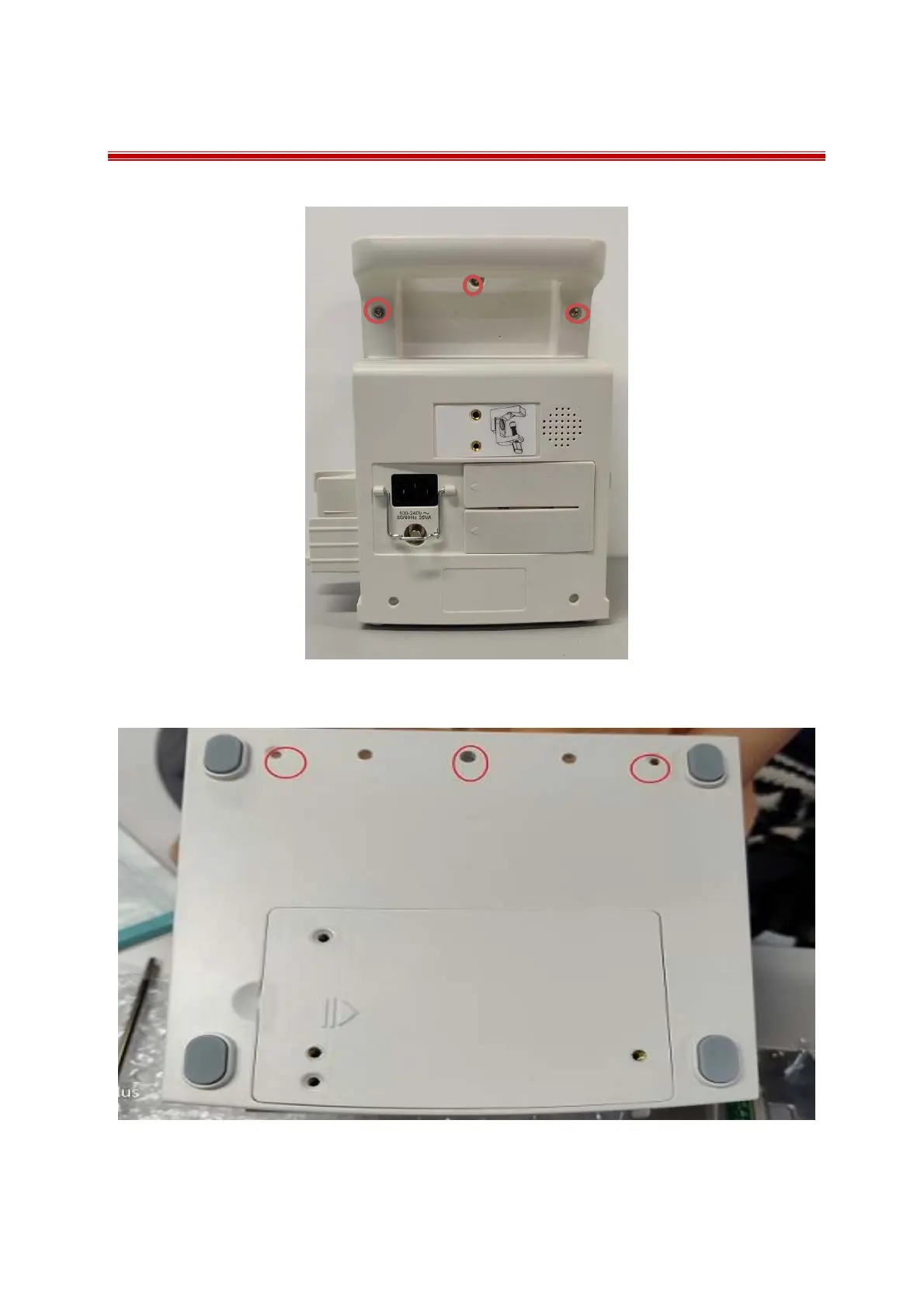

7.2 Separate the Front and Rear Housing
1. Unscrew the 3KM3.0×6.0mm screws at back side upper part;
2. Unscrew the 3 PWM 3.0×6.0mm screws at the bottom of monitor;
3. Unplug the cables that connect to the front panel to separate the front panel & rear housing;
