40

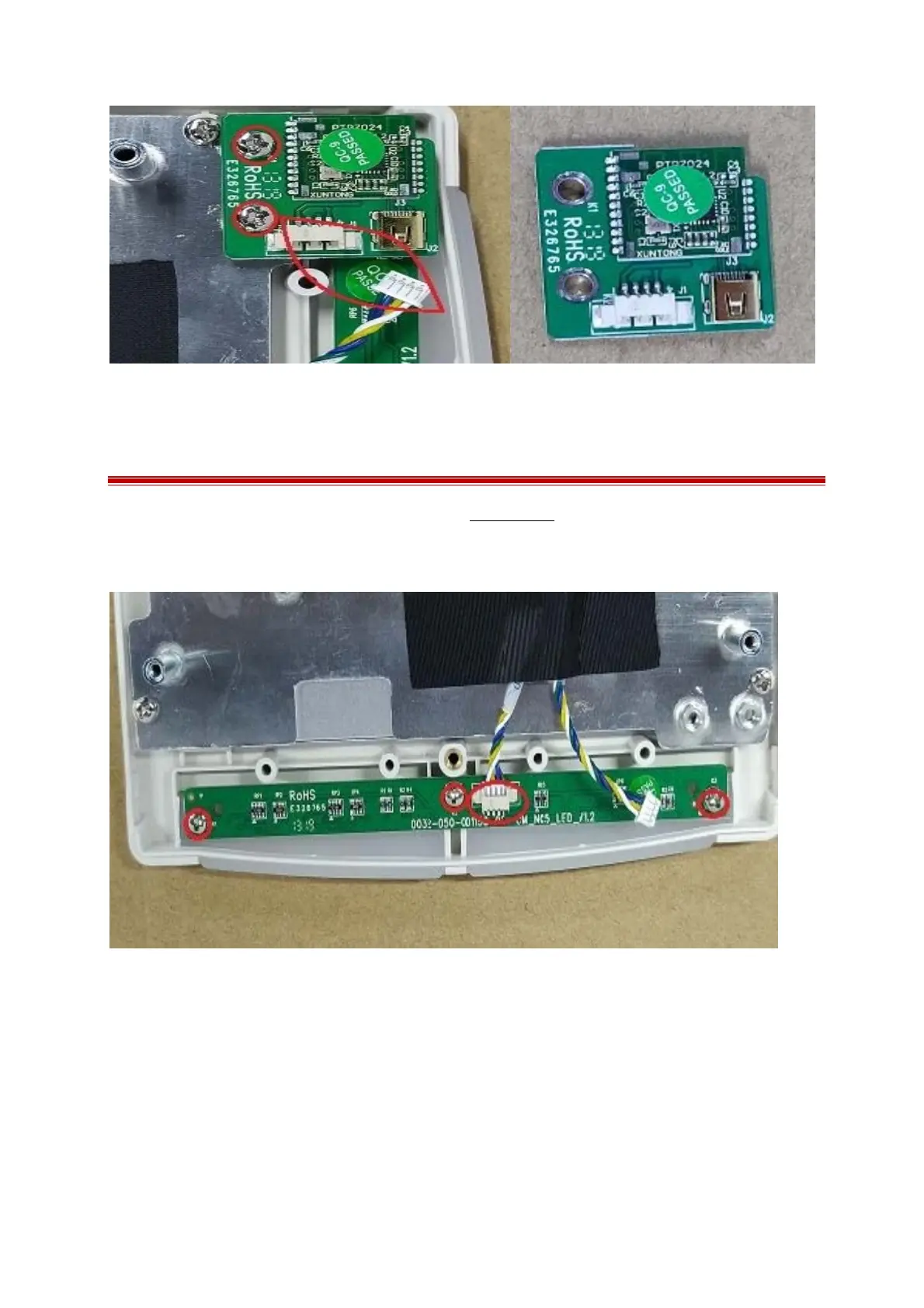

7.7 Removing alarm LED board
1 separate the front and rear housing as described in Chapter 7.2;
2 remove the cable from the alarm lamp board and 3PB3.0×5.0mm screws from the board.
