7.10 Removing the function module
1 Separating the front and rear housing as described in Chapter7.2;
2 Removing the power switch board as describe in Chapter7.9;
3 Remove all the cable connection and unscrew the 6 PB3.0×6.0mm screws;

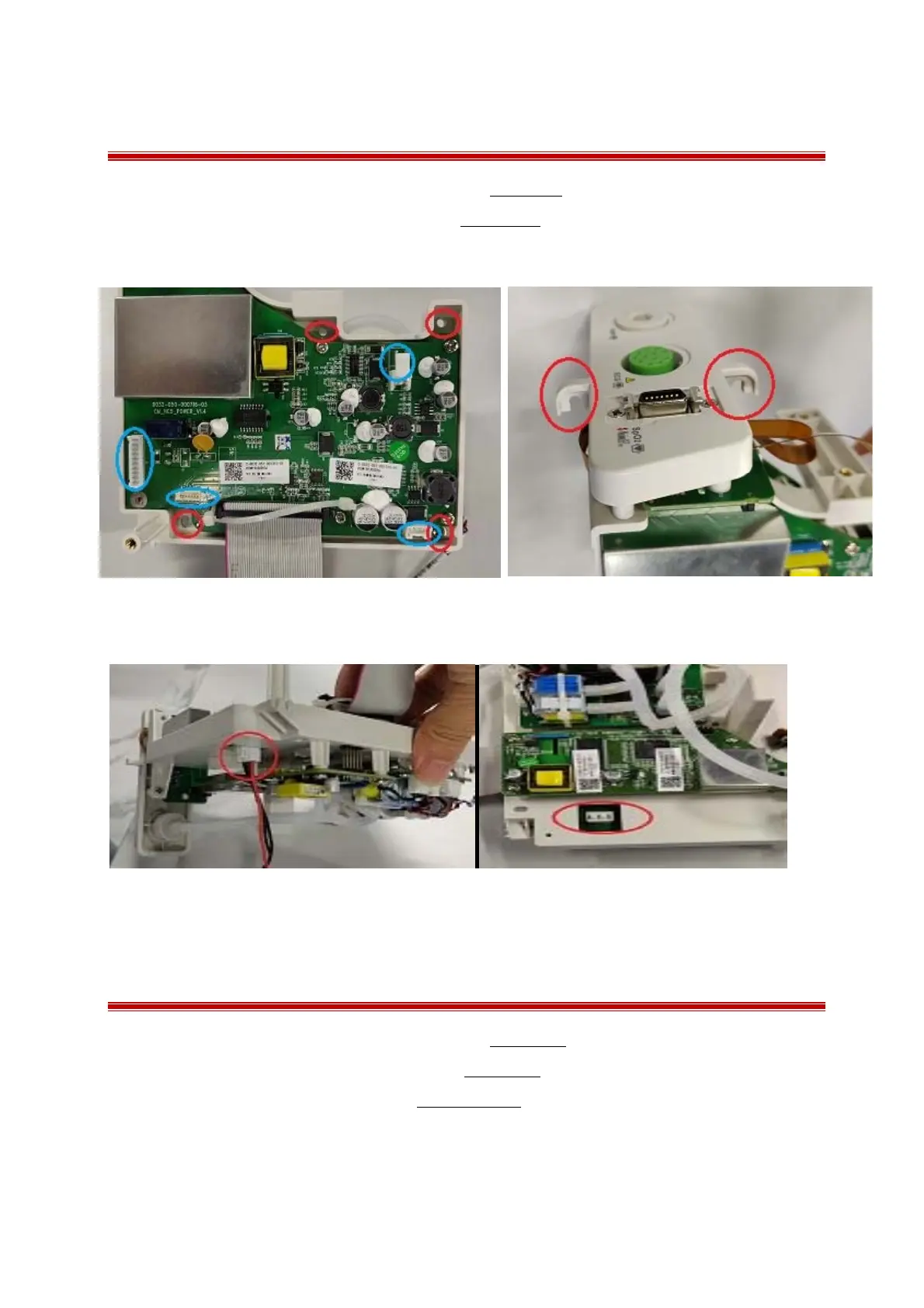

4 Removing the function module assembly outside until have the space to use the finger to unplug the
battery connection and then take the block out.
7.11 Removing the battery
1 Separating the front and rear housing as described in Chapter 7.2;
2 Removing the power switch board as describe in Chapter 7.9
3 Remove the function block as describe in Chapter 7.10.1
4 At the bottom of the machine unscrew the 2KM 3.0×6.0mm and 2PB3.0×6.0mm screws and then
take the battery out.
