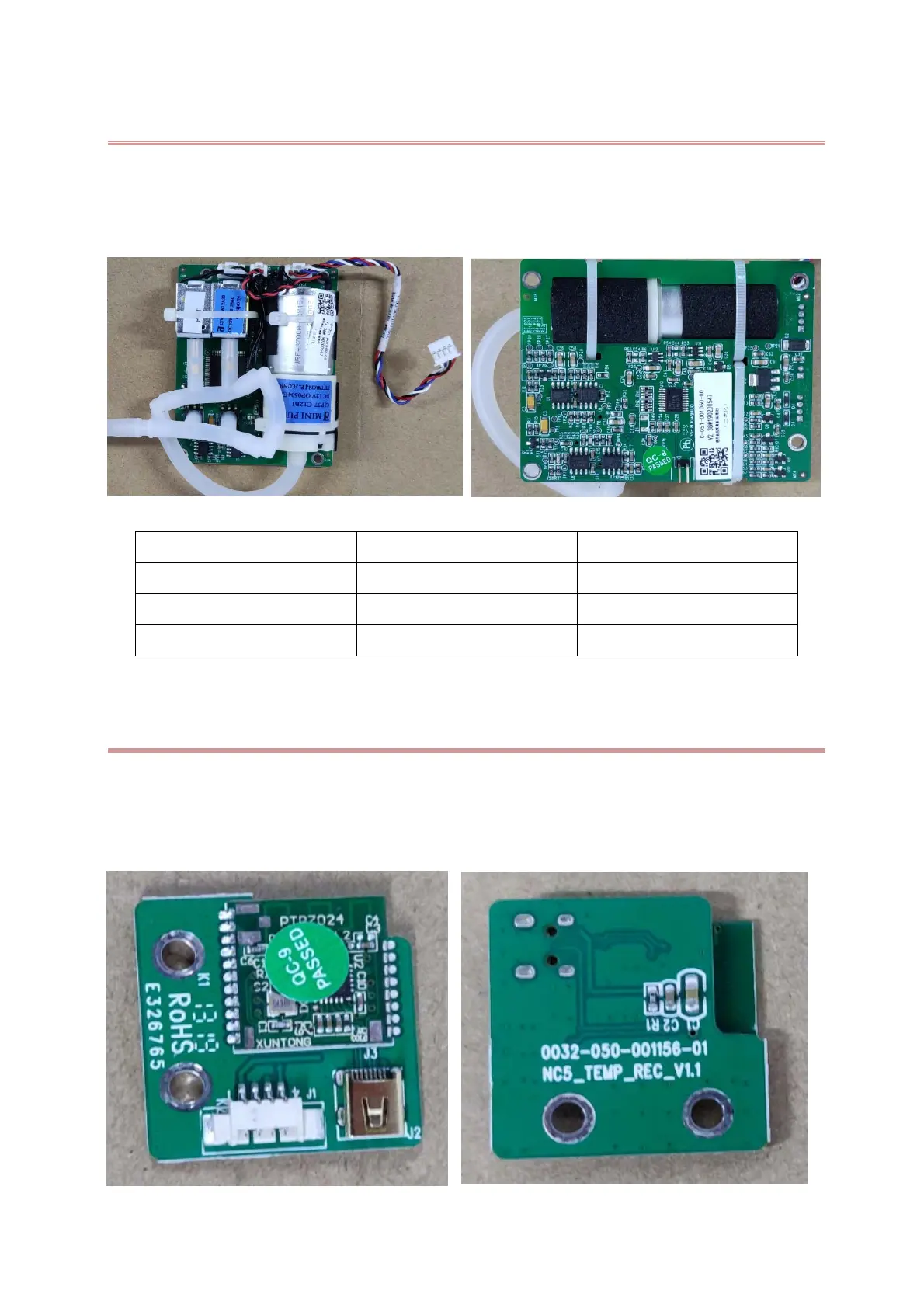

3.2.2.2 NIBP module
NIBP module comprise of air pump, air valve and PCB board. it is in charge of inflation, pressure detection,
and over pressure protection, etc.
Pin ID Description Working Voltage
J4 4Pin, power socket
5V、12V
J2 2Pin, gas pump socket 12V
J3 4Pin, gas valve socket 12V
3.2.2.3 Ear thermometer wireless receiver module
Thermometer wireless receiver module is in charge of receiving thermometer’s measurement signal, then
processed by main board and displaying on the screen.
