COMENDA EASY:BLUE User Manual

7596004CM - Manuale EASYBLUE COMENDA ENG ok - 12 -

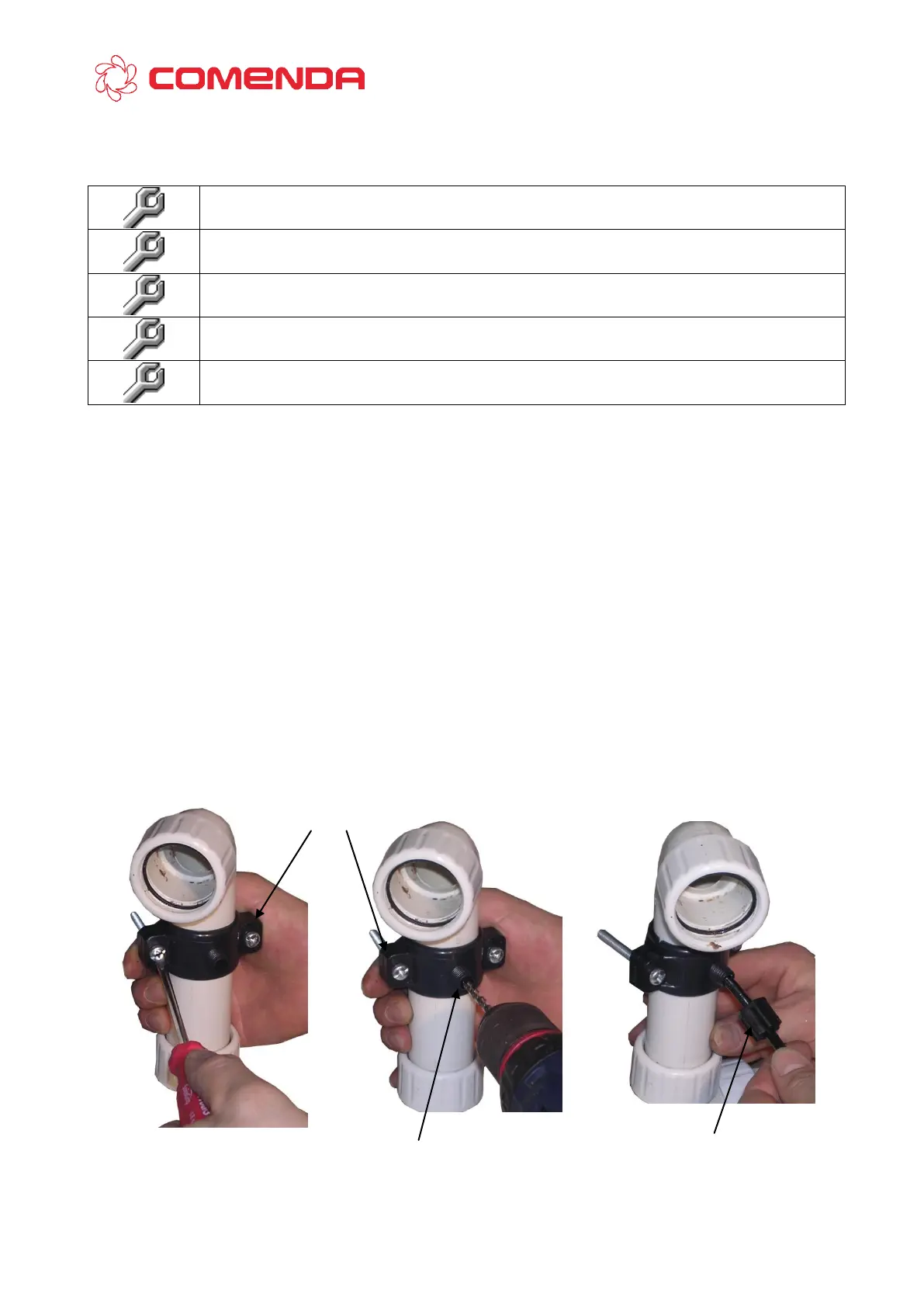

3.2 INSTALLING THE DRAIN BRACKET
Install the drain threaded ¼ "F bracket on the siphon of sink.
Check that the seal is properly on the pipe and that the bolts are tight.
Remove the nut that secures the drain pipe.
With the use of a drill with 8mm drill, make a hole on the drain siphon pipe, in
correspondence of the nut just removed.
Insert the drain pipe for about 2cm into the nut and screw the fixing nut on the
bracket.
Tighten the fixing nut, install a check valve with the arrow pointing toward the bracket,
near the drain.
1. Drain pipe (8mm)
2. Check valve
3. Drain pipe screw nut
4. Drain bracket
5. Seal
6. Bolt
7. Bolt fixing nut
8. Sink drain siphon pipe
Drain bracket
Bolt screw nut
Hole diam. 8mm
