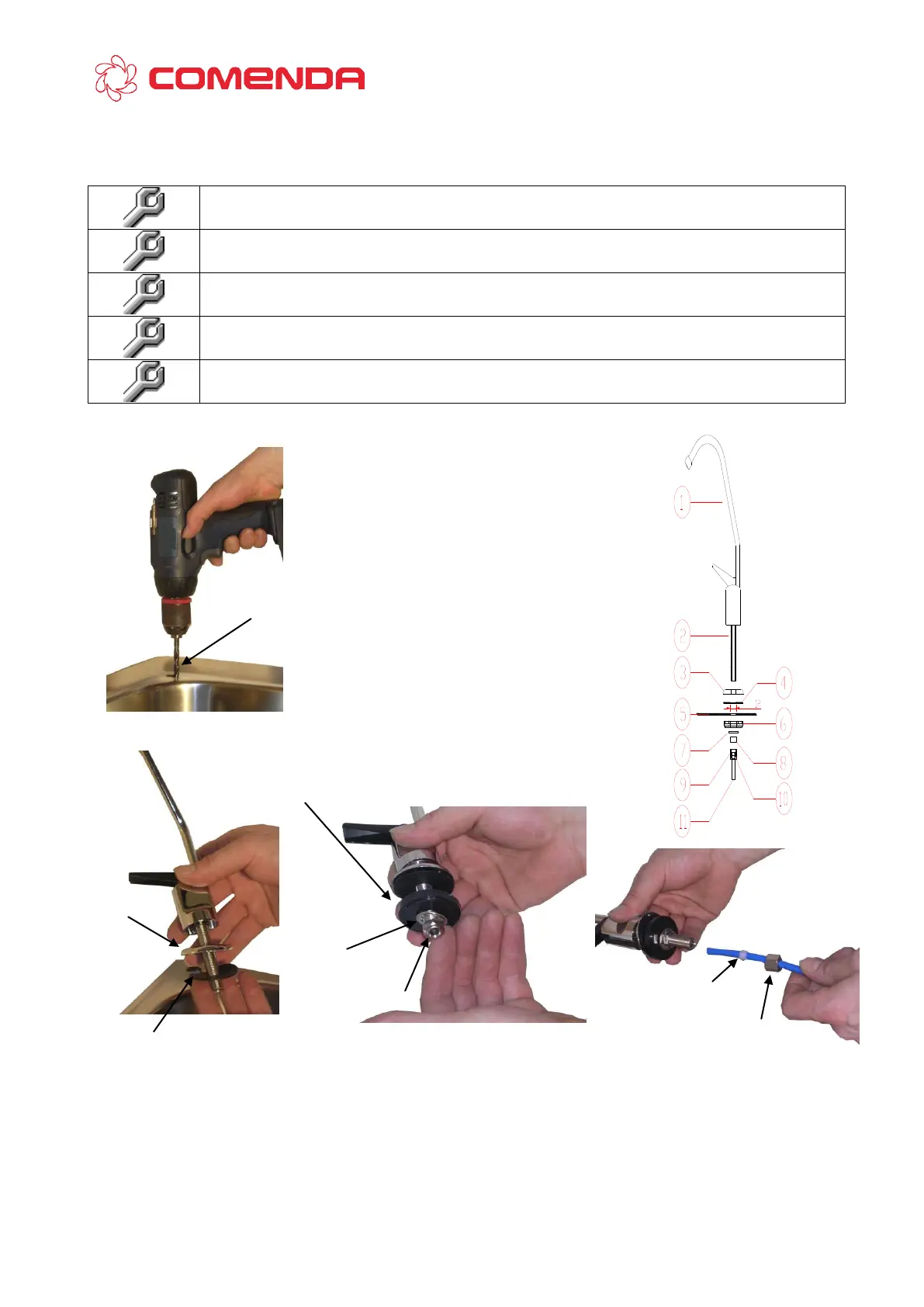

3.3 TAP INSTALLATION
With a drill, make a diam. 12mm hole on the sink and remove imperfections with a
round file.
Place the seal and the chrome base on the hole and then insert the tap shaft.
On the lower side, install in sequence the fixing flange, the elastic washer and screw
the fixing nut.
Install the terminal nut with the plastic ogive.
Tighten the terminal nut.
1. Manual tap
2. Tap shaft
3. Chrome base
4. Seal
5. Sink plate
6. Fixing flange
7. Elastic washer
8. Fixing nut
9. Terminal nut
10. Plastic ogive
11. Permeate pipe (6mm)
Chrome base
Seal
Fixing flange
Elastic washer
Fixing nut
Plastic ogive
Terminal nut
Hole diam. 12mm
