Mount the Fiber CAP L
Wire a Hybrid Fiber Splice Box to Cascade Two CAP Ls with the 4-Wire Power
Configuration

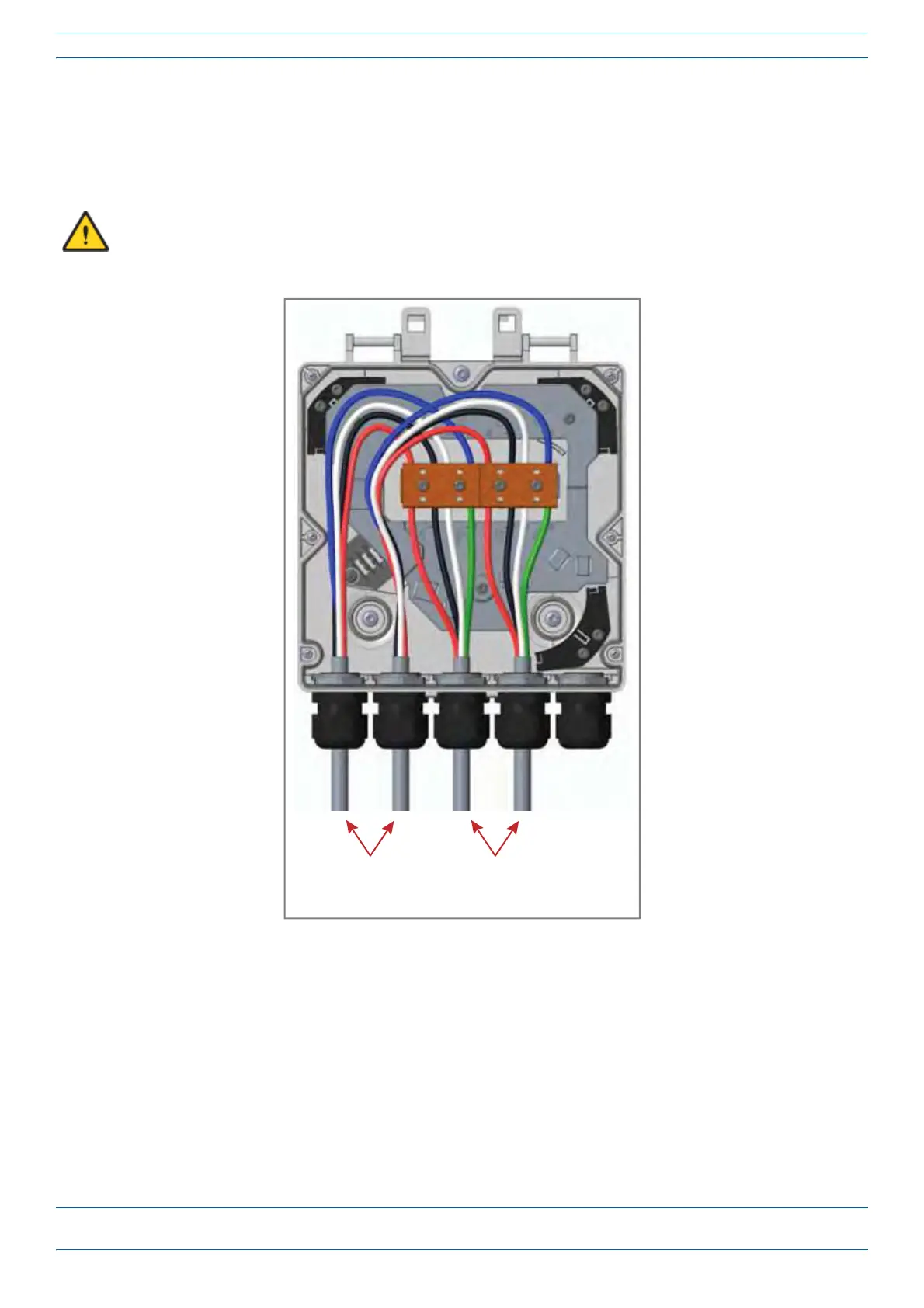

Figure 22 shows a variation of the 4-Wire power configuration that allows you to cascade two CAP Ls using
two 4-wire hybrid cables.
All four pins of the proprietary CAP L 4-pin 36 to 60 Vdc Power connector must be terminated.
Hybrid
Fiber/Composite
cable
One wire each for the
Main and Secondary
CAP L in the cascade
Figure 22. Wiring a Hybrid Fiber Splice Box to Cascade Two CAP Ls in a 4-Wire Power Configuration
