5. Maintenance
Page 58 MF0121ACP_uc.docx Manual for Node AM4

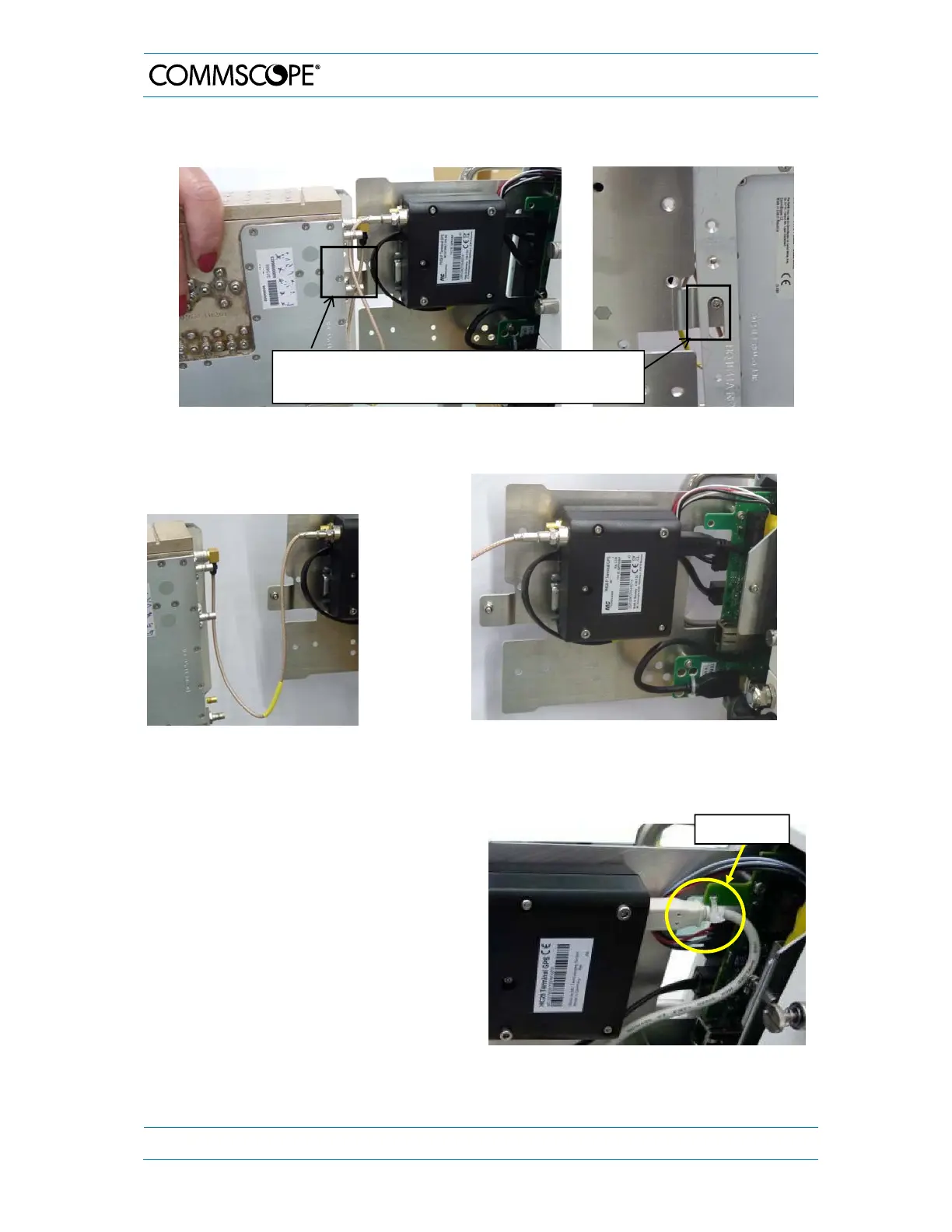

The long hole of the combiner’s carrier plate is hooked into a screw of the modem
mounting plate, so both plates will be pulled out together:
Unhook the plates and disconnect
all cables from the combiner.
Remember their positions for later
reconnection.
Then, also carefully pull out the modem carrier
plate completely, as well.
For battery replacement, please refer to chapter 4.3.6 Fehler! Verweisquelle konnte
nicht gefunden werden..
To replace the modem, proceed as follows:
Carefully disconnect all cables from the
modem and remember their positions for
reconnection.
Note: In some cases, a cable tie (as
illustrated to the right) might be used.
Cutting this cable tie is not necessary if
you proceed exactly in the order as
described in the following
Mounting plates of combiner and modem connected by
screw locked into long hole (seen from both sides).
Cable tie
exemplary
