3. Installation
Page 30 MF0121ACP_uc.docx Manual for Node AM4

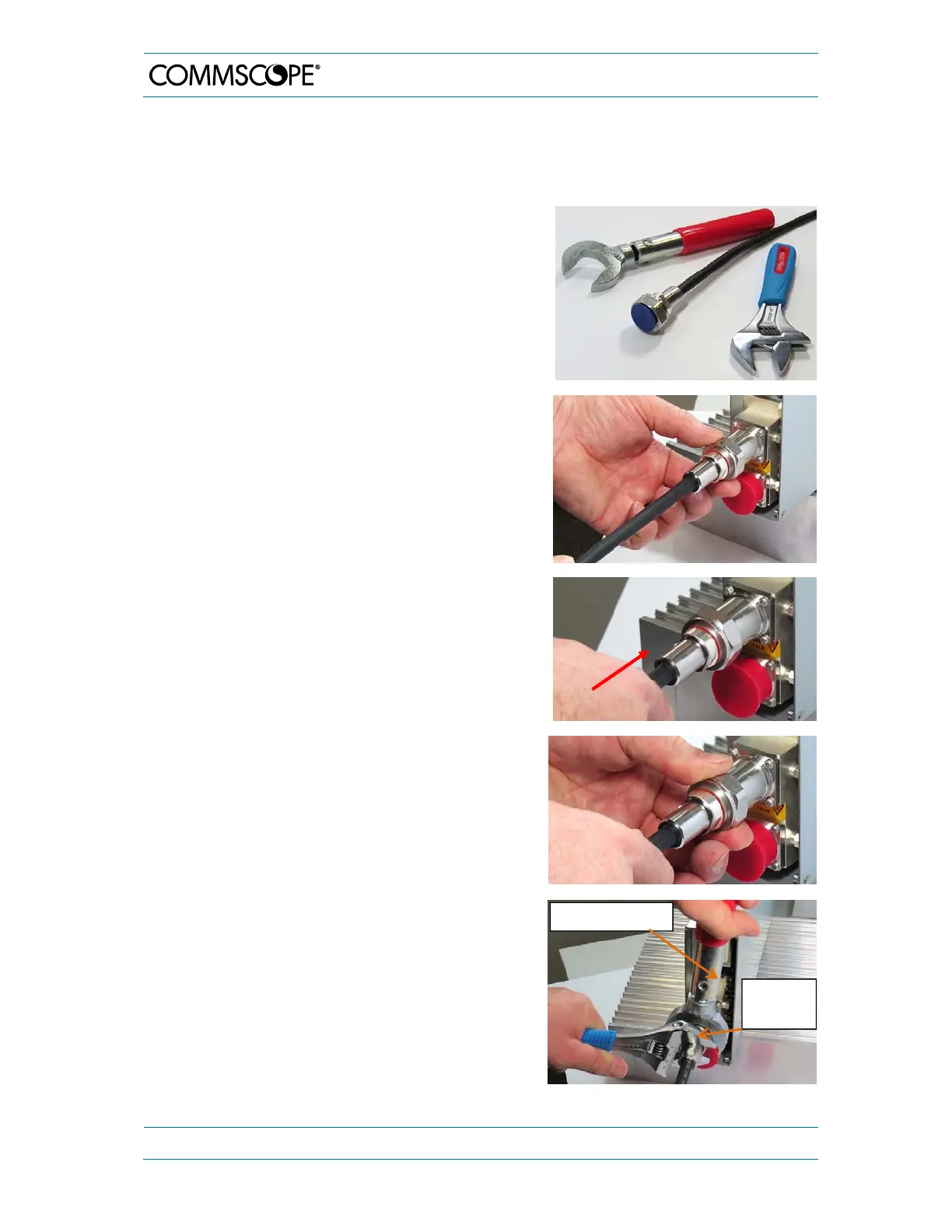

3.2.7. Antenna Cable Connector Assembly
The figures in this chapter illustrate the assembly procedure and do not show an actual
Node AM.
1. What is needed for the connector assembly?
a. Torque wrench.
b. (Adjustable) counter wrench
2. Join the connectors and turn the coupling nut
until the thread grips.
3. Push in the connector until it clicks.
4. Fasten the coupling nut hand-tight. Do not
turn the connector but the coupling nut only.
5. Retain the cable connector with the counter
wrench and fasten the coupling nut with the
torque wrench until the torque is applied
(torque wrench clicks).
For angled antenna connectors use your
hand to retain the cable connector and fasten
the coupling nut with the torque wrench.
Make sure only the coupling nut is turned, not
the cable connector.
Torque wrench
Counter
wrench
