5. Maintenance
Page 68 MF0121ACP_uc.docx Manual for Node AM4
5.2.7.2. Bottom Type
For maintaining and cleaning instructions please refer to chapter 5.1 General.
Caution: Rotating fans. Risk of injury in operation. Wear tight-fitting clothes and
disconnect mains before connecting or replacing or cleaning the fan unit.
Recommendation:

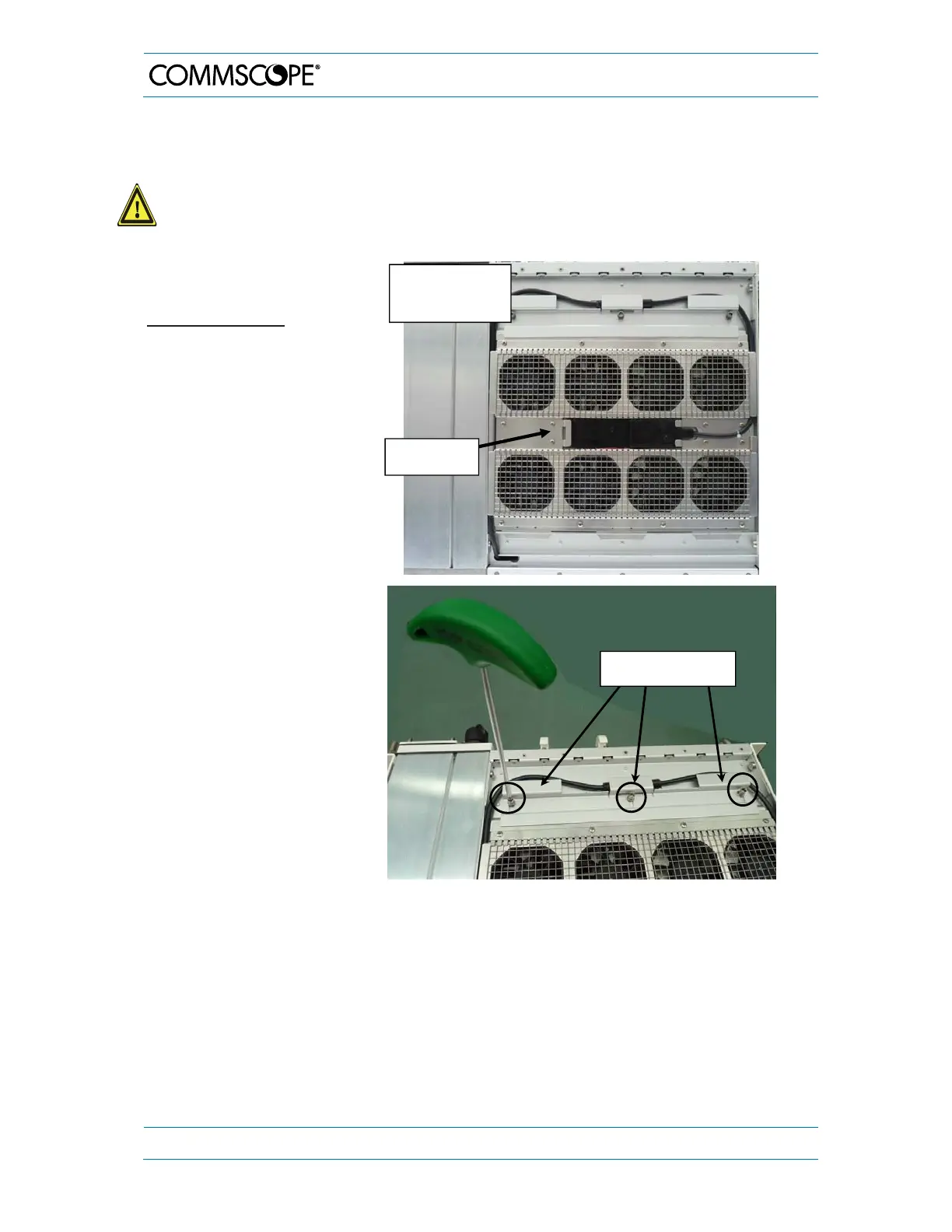

To access the fan tray,
carefully turn the Node
AM upside down.
Attention:
Ensure to remember the
exact position of the
cables connected! Do
NOT squeeze any cables.
Just loosen the 3 screws
(circle-marked) slightly at
the holding devices for
the fan tray and cable.
Bottom side
Node AM4
Fan tray
Holding devices
