5. Maintenance
MF0121ACP_uc.docx Manual for Node AM4 Page 69

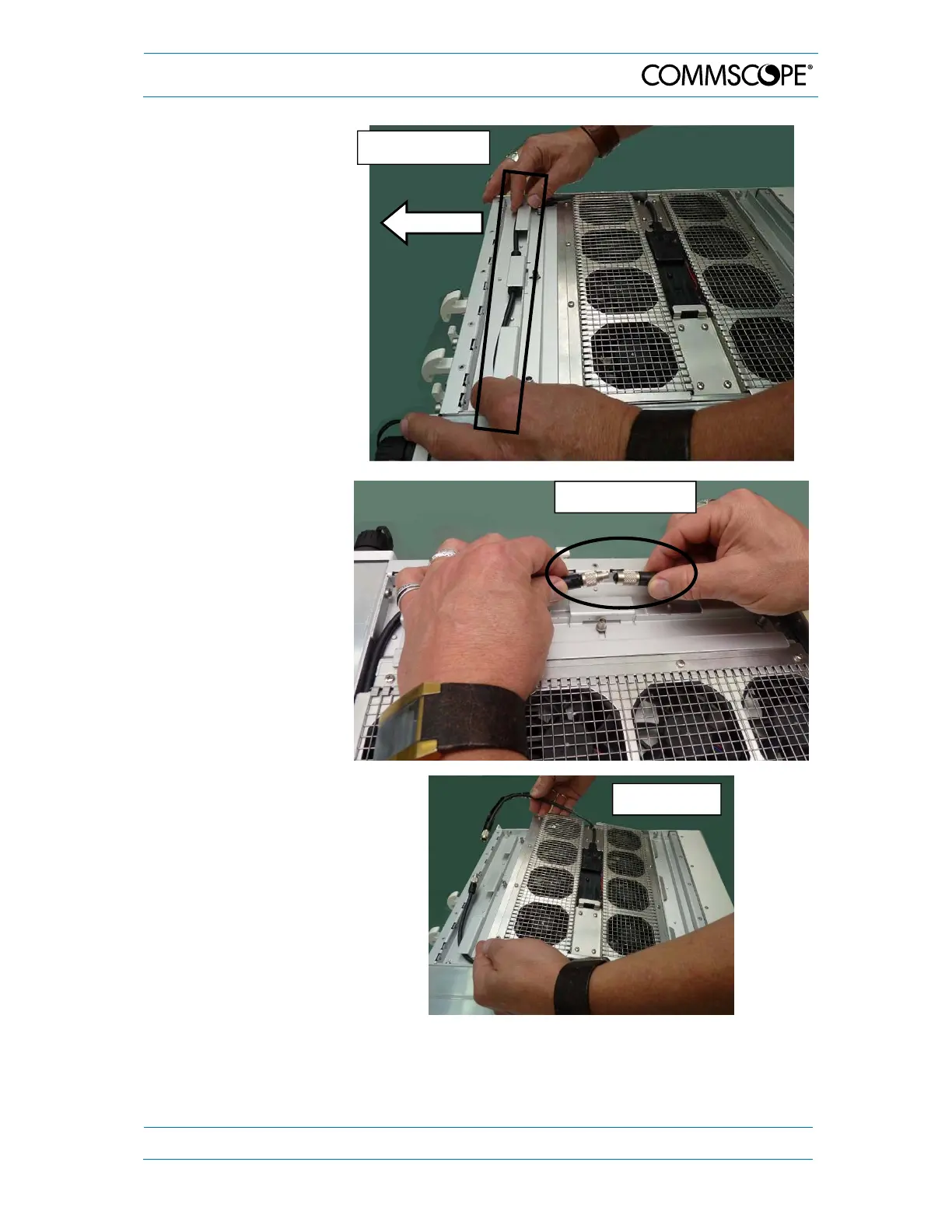

Slid the unit in the
direction of the arrow
shown in the picture and
lift it.
Then you get access to
the fan cable to be
disconnected.
Carefully lift the fan tray to
be replaced.
To mount the new fan
unit, proceed as follows:
Holding devices
Fan connector
Fan tray
