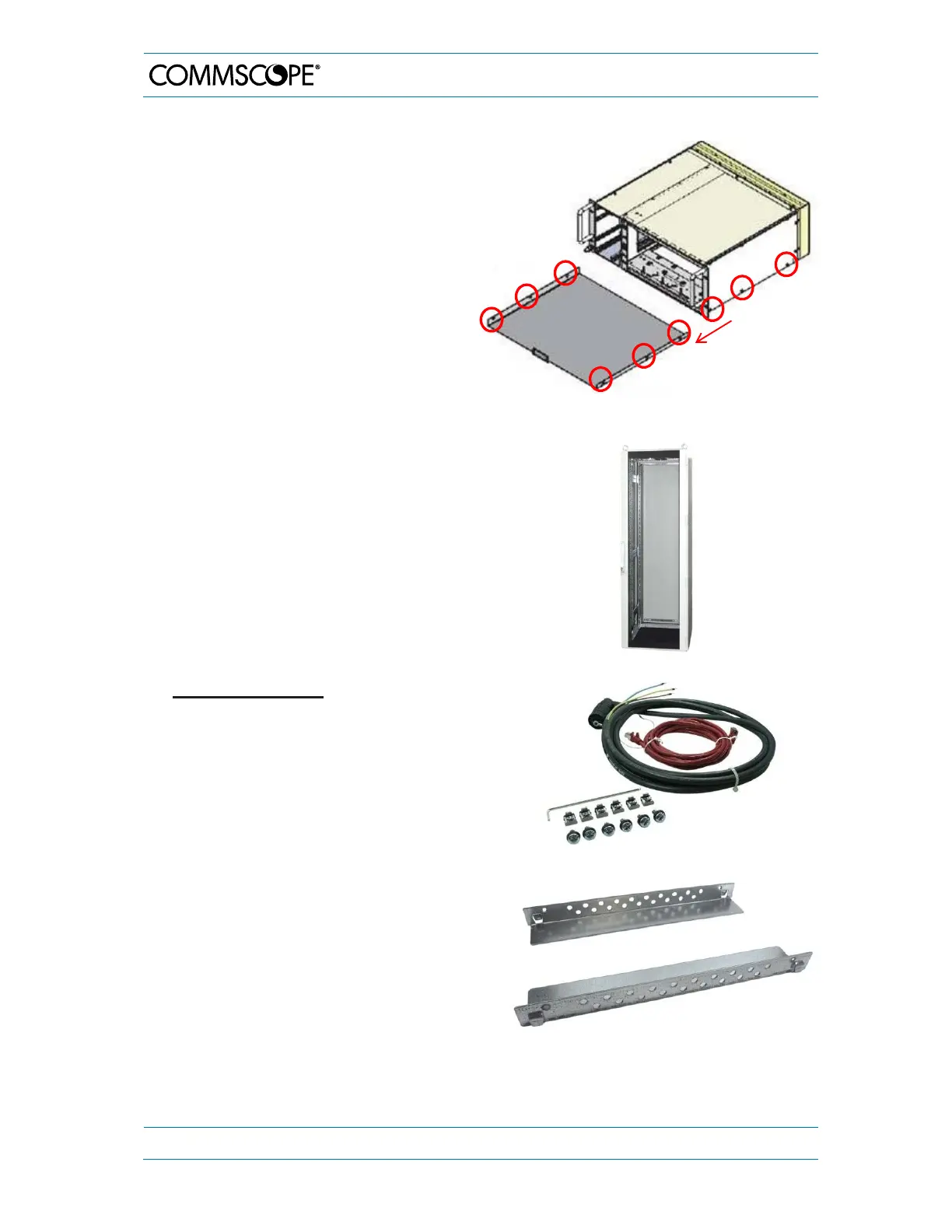

3. Installation
Page 20 MF0121ACP_uc.docx Manual for Node AM4
3.1.3. Removal of Transport Protection Cover
Before starting with the installation,
remove the transport protection cover
(only installed in units with bottom type
fan – see chapter 5.2.7.2). This cover is
retained by 6 screw heads at the Node’s
sides from which it can be unhinged
without having to loosen the screws.
Note: Please keep this cover
because it is required if the Node has to
be sent back, e.g. for a repair or upgrade.
3.1.4. 19 Inch Rack Mounting of the Node AM4
1) 19’’ Rack for Node AM4 (and LMR450)
rack mounting
2) Mounting material:
The following components are included in
the Accessory Kit which is part of the
Node AM4 order.
1x hex screwdriver angled size 2.5
1x AC/DC cable AWG12 3M IP 67
6x cage nuts BM3861
6x M6.0x16mm raised head screws
Pozi recess
1x data cable 3 m Cat5e red
You only need four of each screws/nuts for
mounting.
The Accessory Kit does not contain the
required guide rails. Please use the guide
rails from your original supplier of the 19’
rack.
