5. Maintenance
Page 64 MF0121ACP_uc.docx Manual for Node AM4

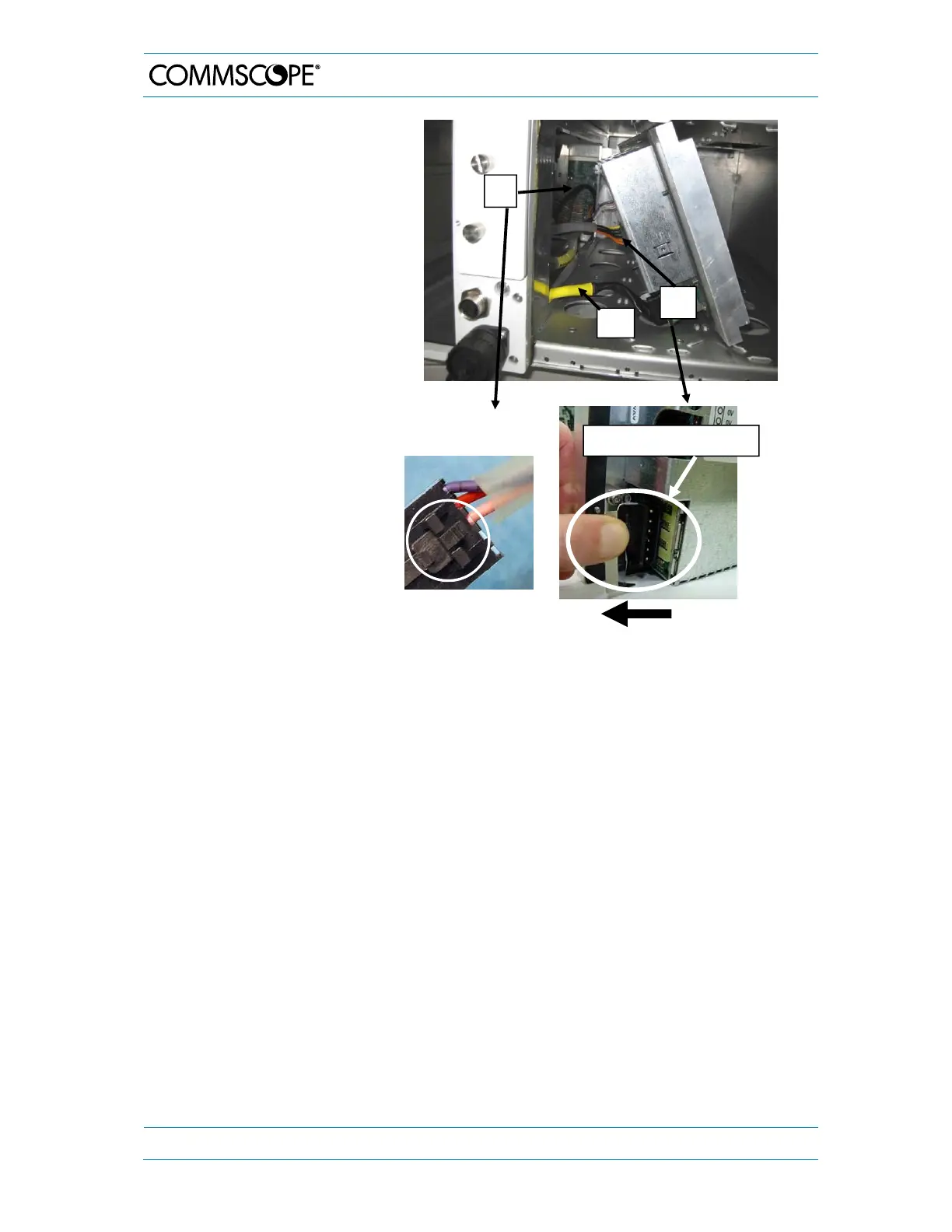

Lift out the power supply
carefully with the lower part
first.
Disconnect the cables and
carefully lift the safety clips for
the disconnection.
1 mains cable (AC – or DC)
1)
2 secondary cable (DC)
2)
with safety clip
3 I
2
C bus cable
3)
snap-in clip / no safety clip
1)
To disconnect the mains cable, observe the precautions illustrated on the next page.
2)
To disconnect cable, press metal-holder safety clip to the rear!
3)
Observe that the snap-in clip of I
2
C bus cable has to be pressed while loosening the
cable.
3
2
1
Metal-holder safety clip
