ComNav G3 GPS Compass Installation & Operation
Document PN 29010092 V2.3 - 16 -

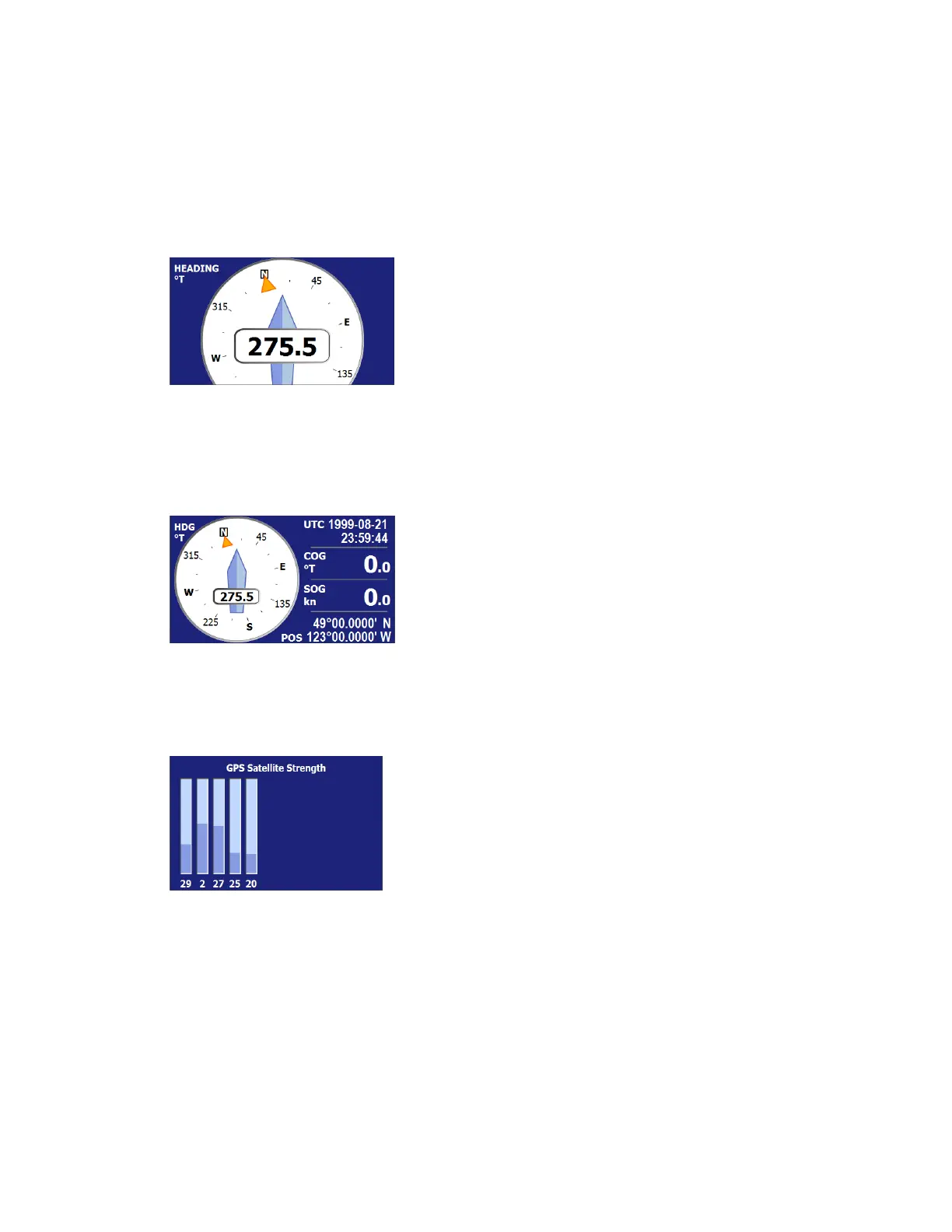

2.3 Screen Layouts
Large Compass Layout
This layout is designed to show heading on a compass rose. The top of the rose points to the
direction of heading from PGN 127250, with digital readout in the center of the rose. A second
point (in yellow) points to the course-over-ground if that data is available.
Figure 10 – Large Compass screen
Small Compass Layout
This layout has a similar rose as in Large Compass layout on the left. On the right of the screen
up to four types of data can be displayed in digital format.
Figure 11 – Small compass screen
GPS Satellite Strength
This layout displays satellites in view and shows their strength in vertical bars.
Figure 12 – GPS satellite strength bar screen
Satellites in View Graphic
This layout plots the satellites in view on the screen with their identification numbers. The strength
of each satellite is shown on the right in horizontal bars.
