ComNav G3 GPS Compass Installation & Operation Appendices
Document PN 29010092 V2.3 - 34 -

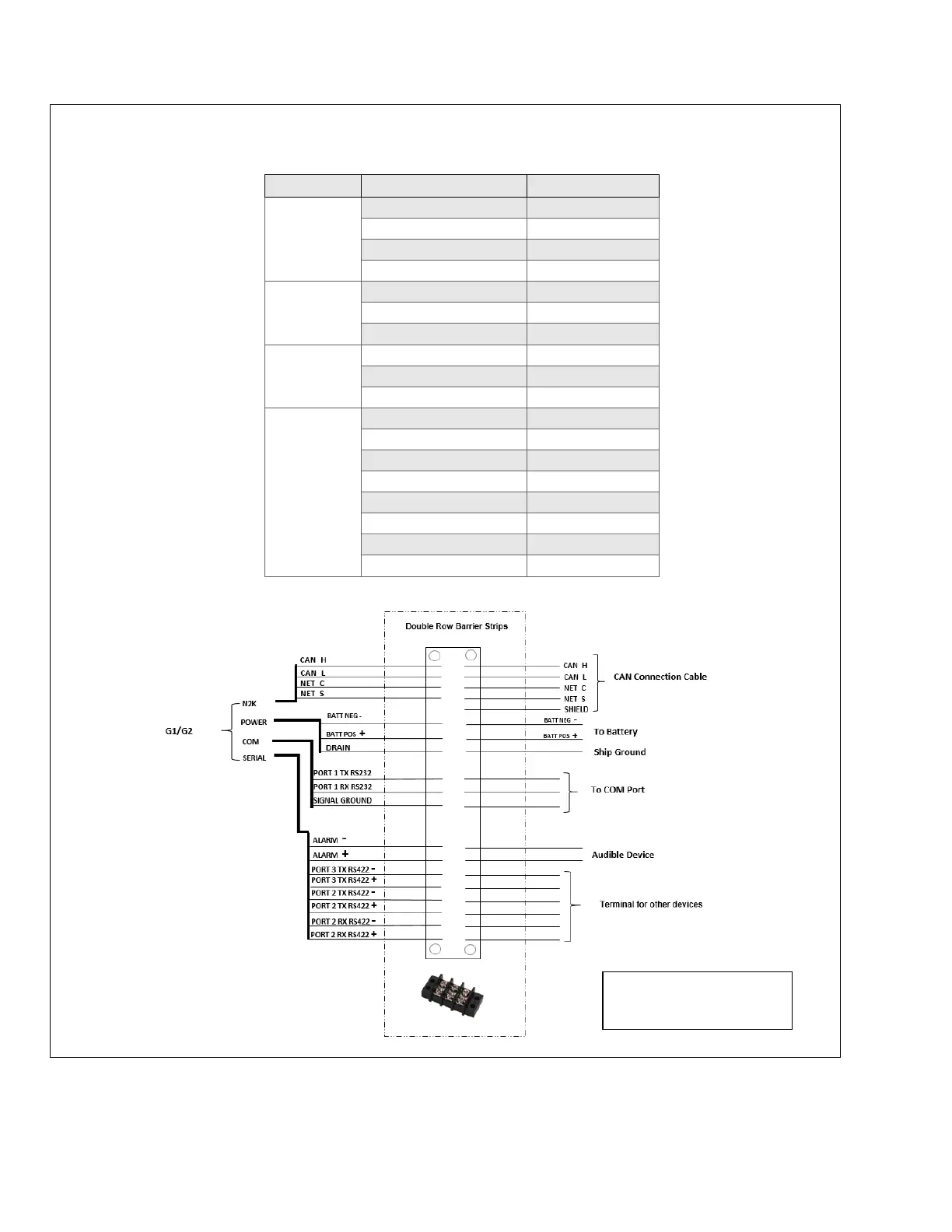

Figure 28 – G2 IMO wiring diagram
Group Signal Net Wire Color
CAN
CAN_H
White
CAN_L
Blue
NET_C
Pink/Black
NET_S
Pink
POWER BATT NEG
Black
BATT POS
Red
DRAIN
Bare
COM
PORT 1 TX RS232
Brown
PORT 1 RX RS232
White/Brown
PORT GRND RS232
Grey
SERIAL
Alarm ( - )
Orange
Alarm ( + )
White/Orange
PORT 3 TX RS422 ( - )
Violet
PORT 3 TX RS422 ( + )
White/Violet
PORT 2 TX RS422 ( - )
Green
PORT 2 TX RS422 ( + )
White/Green
PORT 2 RX RS422 ( - )
Yellow
PORT 2 RX RS422 ( + )
White/Yellow
GNSS Cable Color Code
Example of Double Barrier Strips:
TE Connectivity 1-1546670-X
The barrier strips must be mounted in a
water-prevent enclosure.
