9.

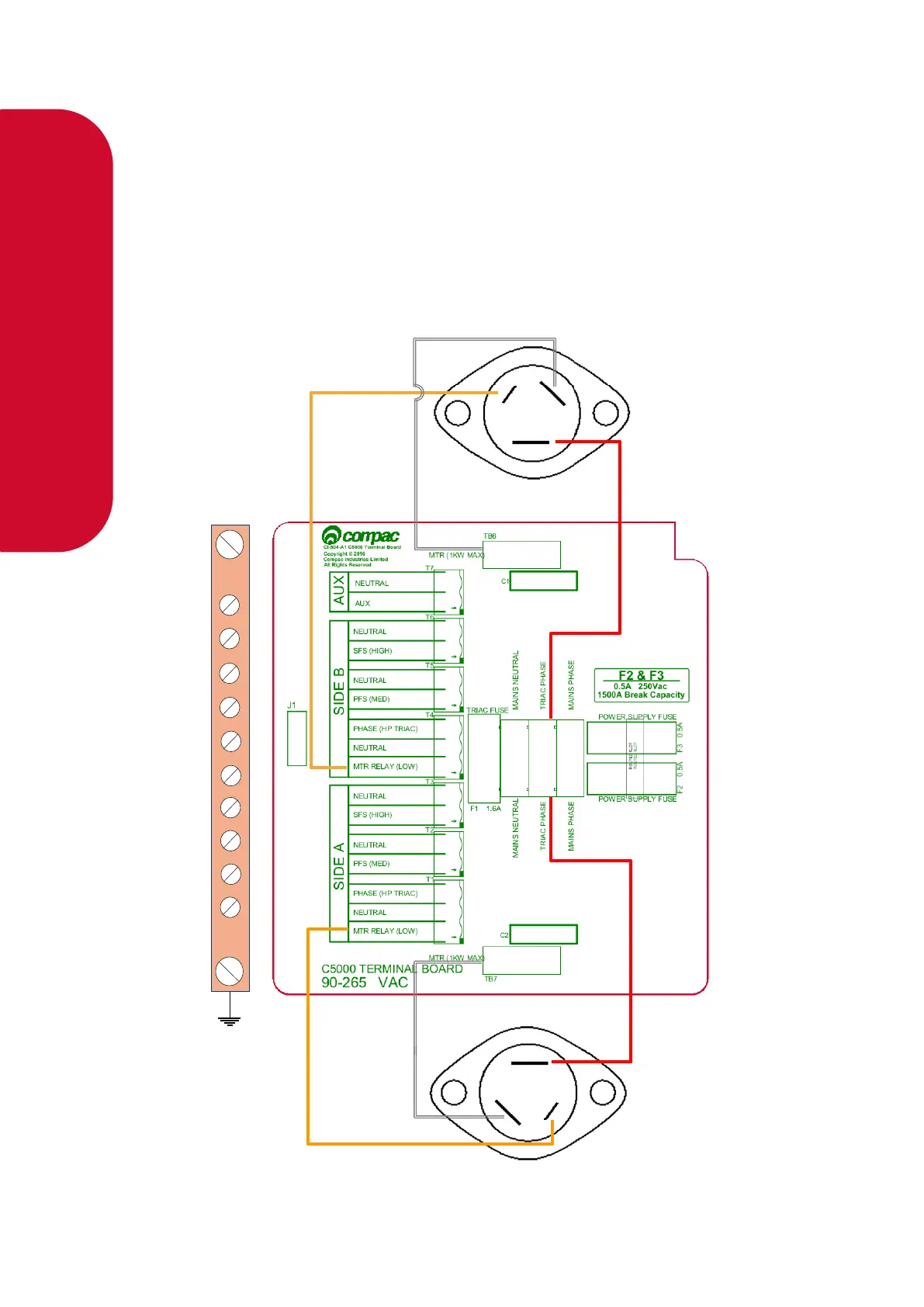

Typical Wiring
Triac Wiring
The triac wiring is pre-installed and, in most cases, will not need
to be changed. However, the
wiring is shown here to aid triac replacement or other service procedu
res. These are colour
coded with standard colours. In case these are no
t clear, the colours are as
follows:
▪
MTR Relay: Orange
▪
Phase: Red
▪
Motor: White
Phase
MTR Relay Low
Motor (1KW)
13
15
