10
.

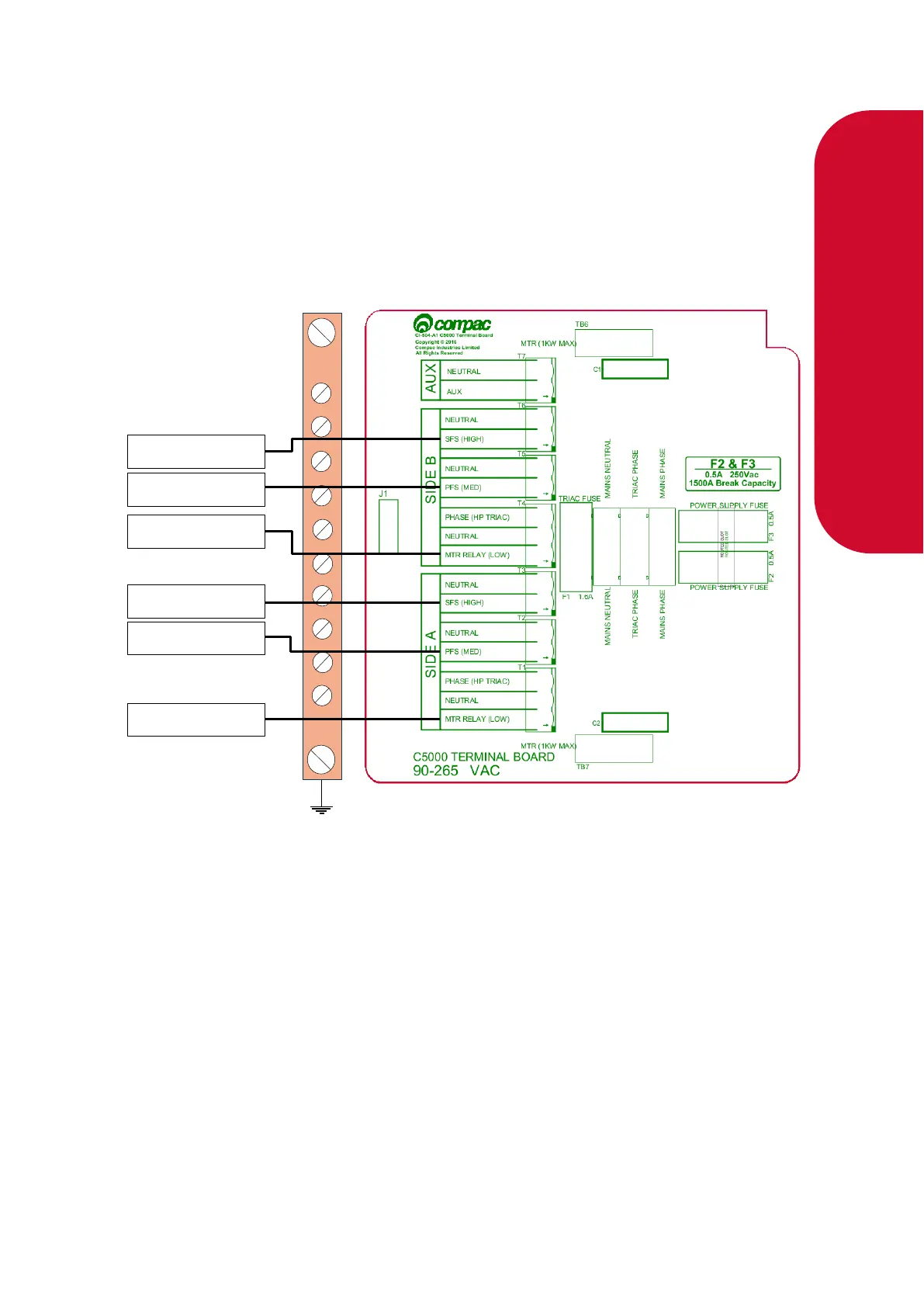

Typical Wiring
Dispensers
When using the C5000 electronics for dispenser application, as well as connecting the incoming
mains, the external pump contactors will
have to be connected to the terminal board.
Solenoids for side A and B are optional and can be wired in if preset and p
repay options are
desired.
Secondary Soleno
id
Primary Sole
noid
Primary Sole
noid
Secondary Solenoid
Side B
Side A
External Pump
External Pump
14
16
Table of Contents
Default Chapter
5
Table of Contents
5
Safety
6
C5000 Power Supply
7
Cable Requirements
8
Incoming Mains
9
Comms Connections
10
Power Supply
11
K-Factor Board
12
Typical Wiring
13
Pumps
13
Dispensers
15
K-Factor Settings
16
Using the Dispenser Menus
16
Dispenser Settings
17
Changing the V50 Meter ID
19
Changing the Temperature Calibration
20
Changing the Density Calibration
20
Changing the Maximum Flow
21
Changing the K-Factor
21
Changing Configuration Settings
22
Changing the Solenoid Delay
25
Changing the Preset Cutoff
25
Changing the Preset Rounding
26
Changing the Flow Time out
27
Parameter Settings
28
Using the Dispenser Menus
28
How to View the Software Version
29
Changing the Pump Number
29
Changing the Price
30
Changing the Pump Settings
30
Changing the Low-Flow Cutoff
32
Changing the High-Flow Cutoff
32
Changing the B Setting
33
Changing the Slave Display Configuration
33
Changing the Custom Display Configuration
34
How to View Last Sale
35
How to View Electronic Totes
36
Commissioning
37
Electrical
37
Mechanical
38
LED Diagnostics
39
Processor Board
39
K-Factor Board
40
Troubleshooting
42
Electrical
42
Mechanical
44
Generator Power
45
End of Sale Indicators
46
Error Codes
