Compac C5000 User Manual

8.
Typical Wiring
Typical Wiring
Pumps

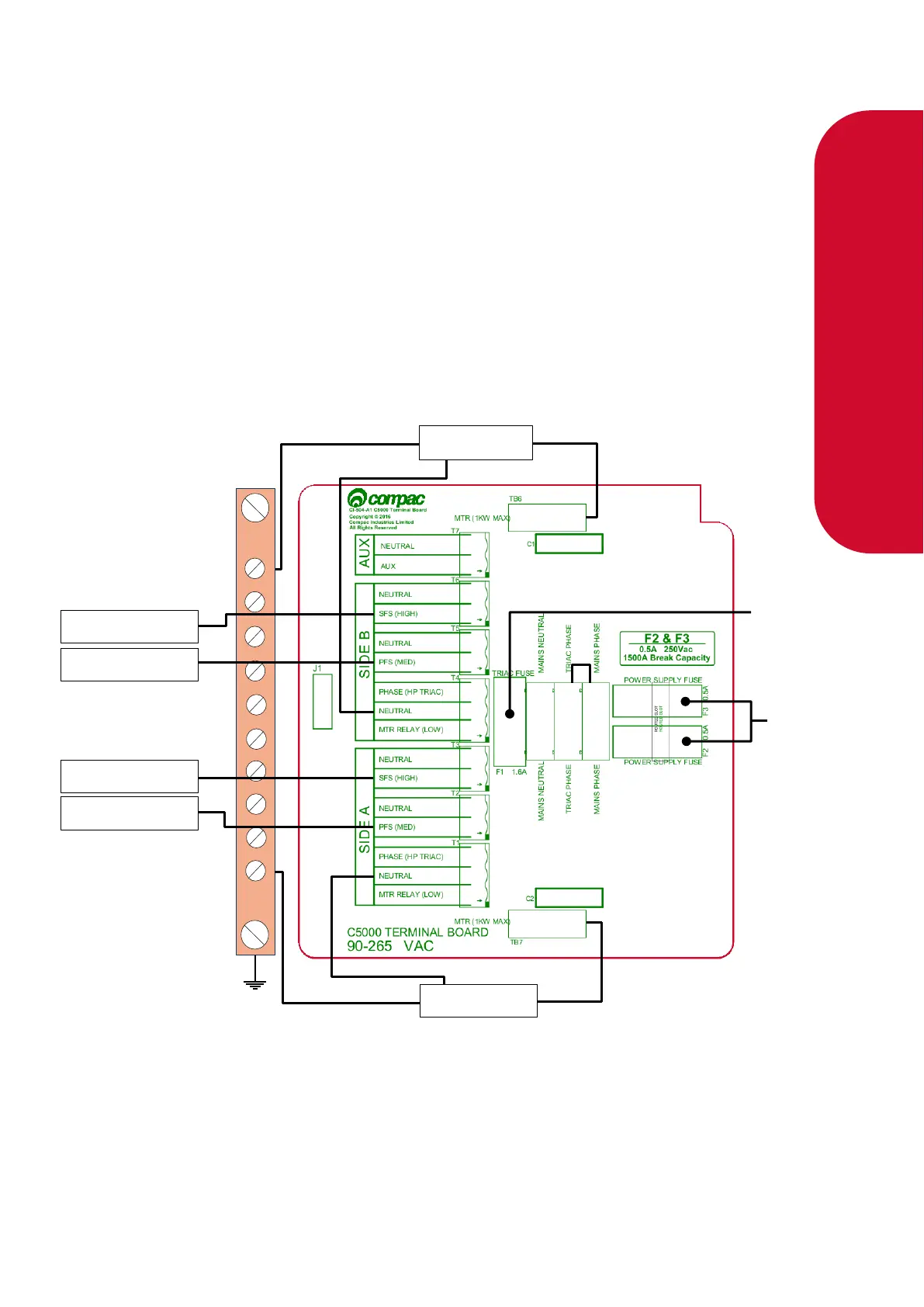

The following diagrams show the typical wiring required for C5000 pumps.
The motor can be connected to the terminal board for both side A and side B. Only wire in the
required side(s). The location of the fuses on the terminal board are also shown. These can be
used for diagnosing problems with the unit.
Solenoids for side A and B are optional and can be wired in if preset and prepay options are
desired.
Earth
Motor Side A
Earth
Neutral
Phase
Motor Side B
Phase
Neutral
Triac Fuse
C5000 Power
Supply Fuses
Secondary Solenoid
Primary Solenoid
Primary Solenoid
Secondary Solenoid
Side B
Side A
