4.
Incoming Mains
Incoming Mains

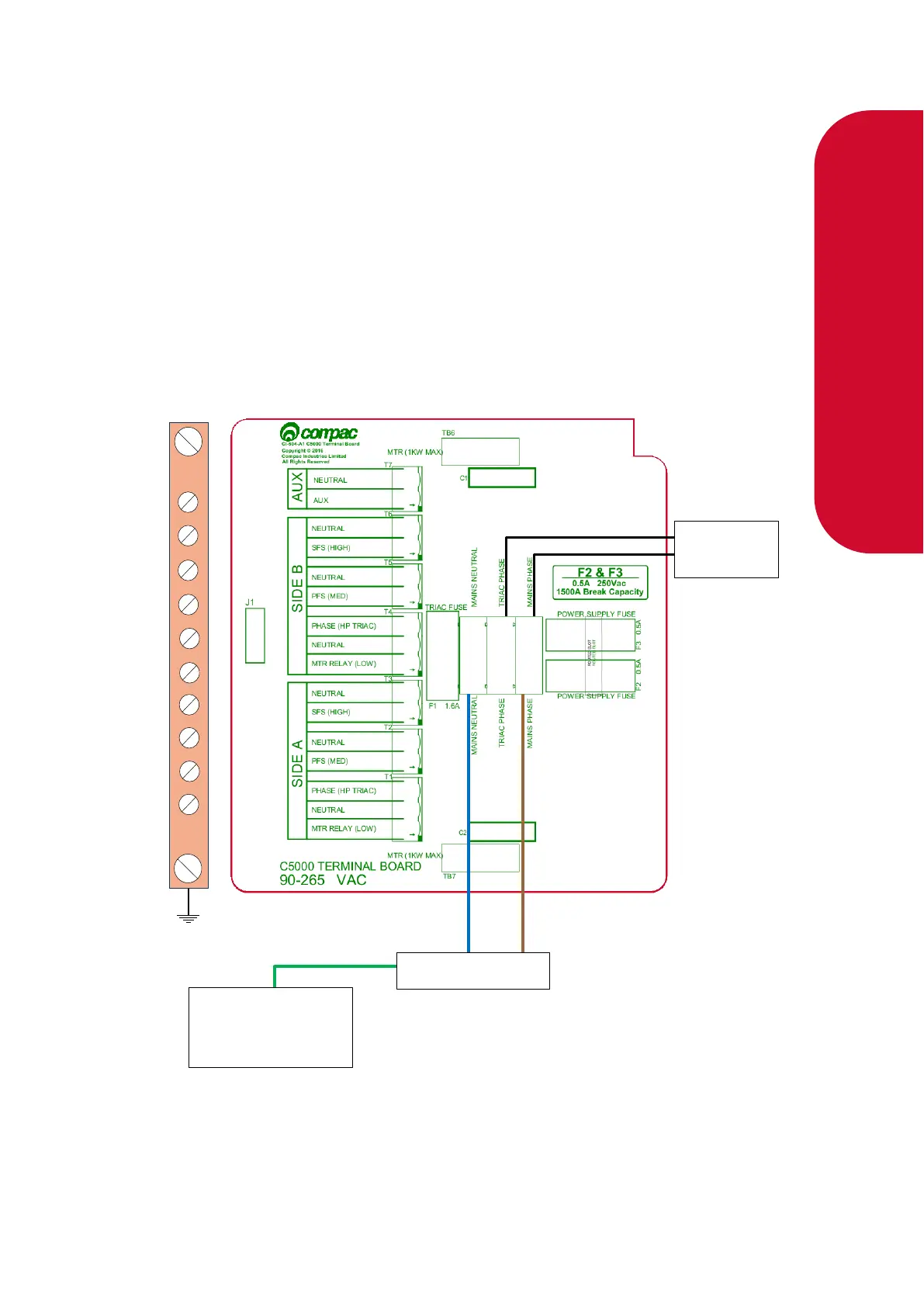

Incoming mains connections should be brought in to the terminal board.
An emergency stop connection, if desired,
can
also be wired into the terminal board, shown
below. This will be in place of the normal loop be
twee
n the triac and main phases. Wires have
standard colours which are shown. In case these are unclear, the colours are as follows:
▪
Incoming mains phase: Brown
▪
Incoming mains neutral: Blue
▪
Incoming mains earth: Green/Yellow
Earth
Neutral
Phase
Incoming Mains
Emergency
Connection
Main Earth Termi
nal
(in the corner of the
flameproof box)
