4-14
Installing Hardware Options
Writer: Tom Erber Project: ProLiant 3000 Setup and Installation Guide Comments: 296908-002
File Name: E-CH04.DOC Last Saved On: 1/27/98 4:20 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED

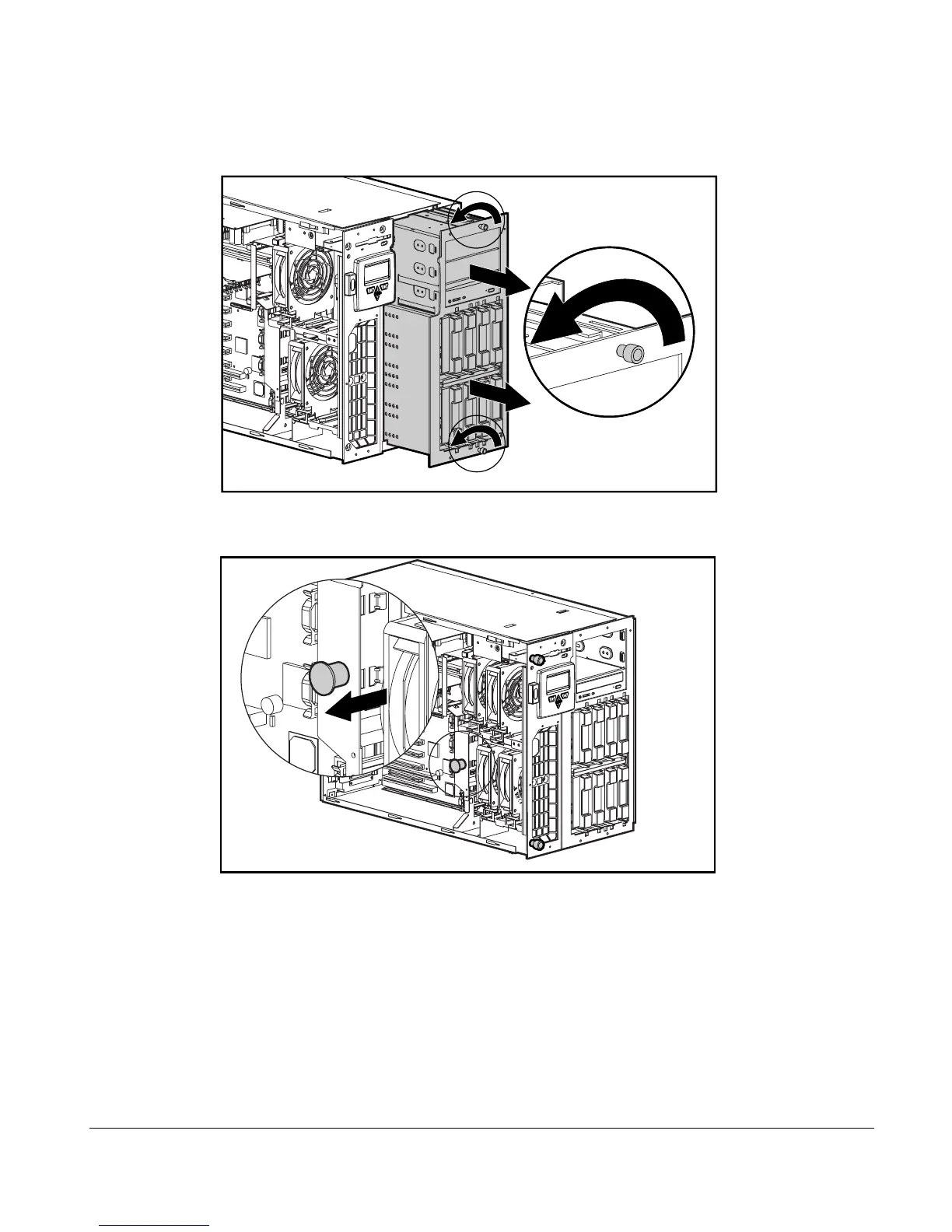

Figure 4-12.
Partially pull out the drive cage
Figure 4-13.
Drive cage latch
6. Remove all cables from the back of the drive cage except for the
removable media power cable.
7. Completely remove the drive cage.
