COMPRAG Screw air compressor A-Series
3. Start up
3.1 Lifting and carrying
All lifting should be carried out using a forklift truck with a carrying ca-
pacity suited to the compressor. Lifting may be carried out with loading
cranes, winches and other machinery, using a crossbeam with the
right length. Local safety guidelines for lifting have to be observed.
B
C
A
G
D
L
D
H
For transport with a forklift
truck, use the rigging holes in
the frame. The compressor
has slotted rigging holes with
width C – g. 3.1. Move the
compressor carefully.
Model A,mm B, mm C, mm D, mm G, mm
A30
332
775 185
292 1200
A37
A45
540 150 1300
A55
3.2 Dimensions

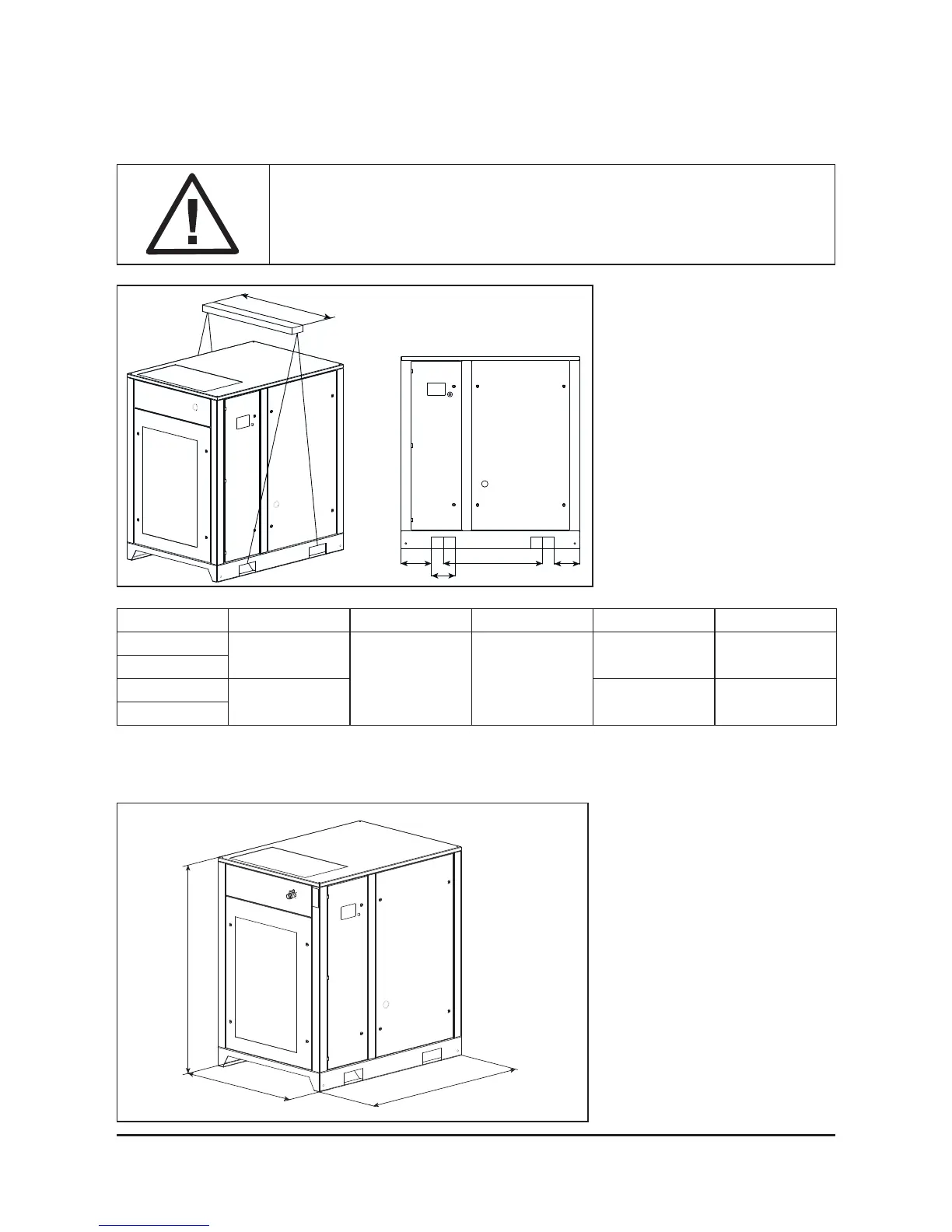

Fig. 3.1 Lifting and carrying
A30-55.
Fig. 3.2 Dimension drawing
A30 – A55.
