Installa tion
Installa tion l 3-5
Installing the Return Air Adapter
(W600 - 1000)
The Carousel Plus W Series Dryer’s return air adapter must be installed.
To install the return air adapter:
1 Remove the return air adapter that is attached to the dryer’s shipping
pallet.
2 Locate the bolt pattern on the top of the dryer, on top of the return air inlet.
3 Position the return air adapter on top of the return air inlet, aligning both
bolt patterns.
4 Secure the return air adapter with supplied hardware, using an appropriate-
ly sized wrench.

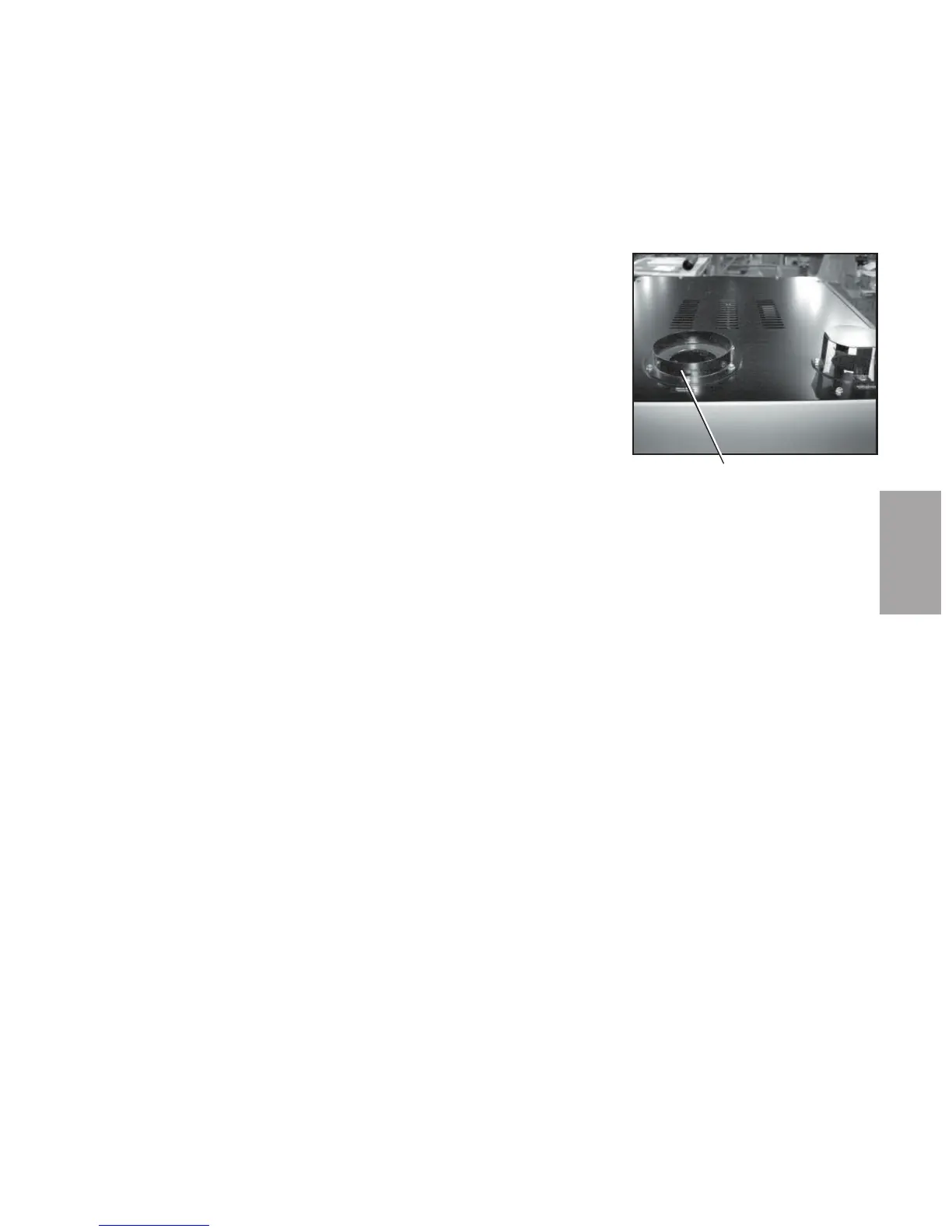

Return Air
Inlet Adapter
