3-16 l Install ation
Connecting Air Hose Adapters
Depending on the hopper you purchased you may need to install an air hose
adapter to connect the hopper to your dryer.

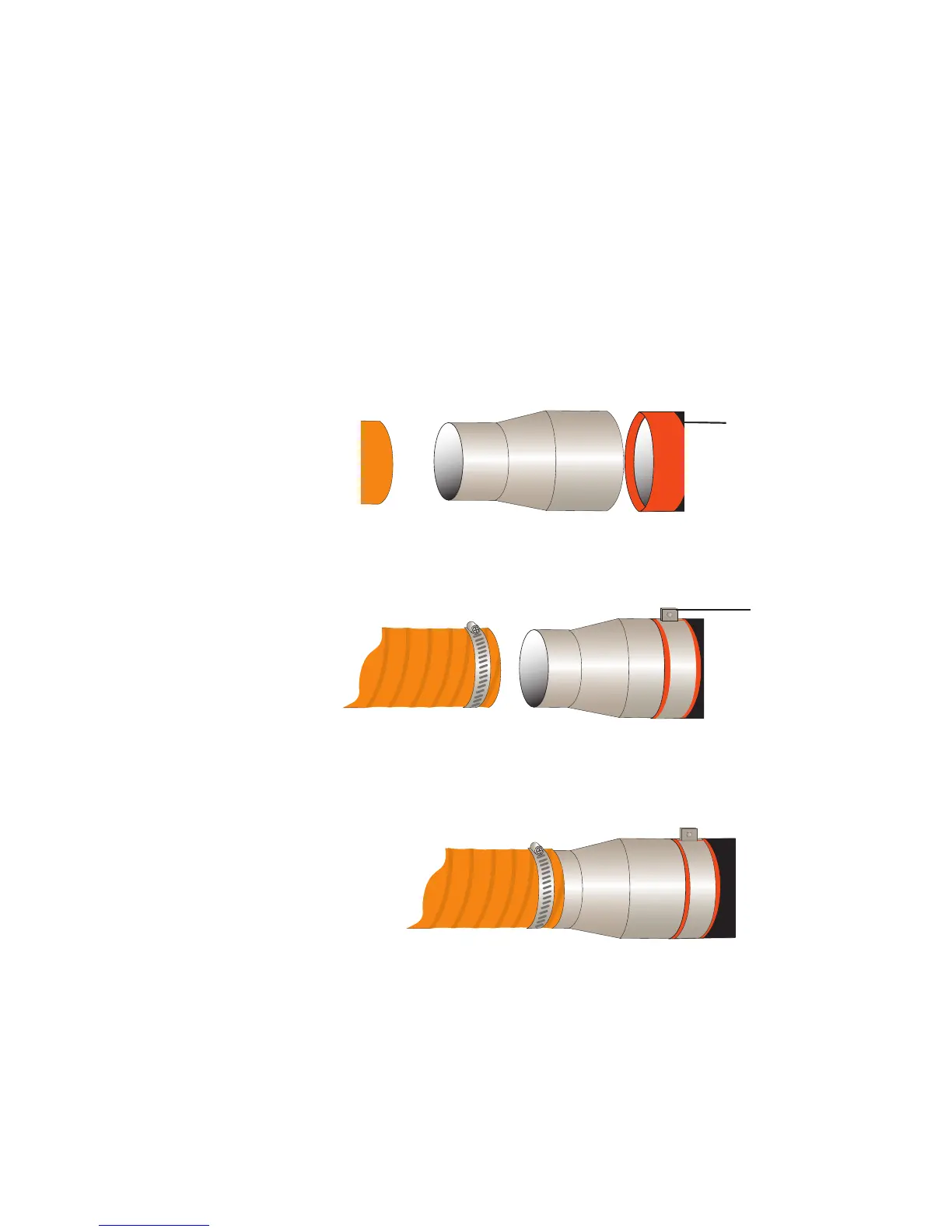

To connect the air hose adapter:
1 Place high temperature gasket half way down over the dry air delivery
outlet.
2 Place hose adapter inside high temperature gasket flush to the dryer outlet,
secure with pressure clamp.
3 Attach the hopper inlet hose over the adapter, secure with clamp.
Dryer
Inlet/Outlet
Connection
Pressure Clamp
