Installing the Return Air Inlet and
Air Outlet Adapters (W1600 - 5000)
The Carousel Plus W Series Dryer’s return air inlet and air outlet adapters will be
removed when the dryer is shipped
To install the return air inlet and air outlet adapters:
1 Remove the return air inlet and air outlet adapters that are attached to the
dryer’s shipping pallet.
2 Locate the bolt patterns on the top of the dryer, on top of the return air inlet
and air out outlet.
3 Position the return air adapter on top of the return air inlet, aligning both
bolt patterns.
4 Secure the return air adapter with supplied hardware, using an appropriate-
ly sized wrench.
5 Position the air inlet adapter on top of the inlet air inlet, aligning both bolt
patterns.
6 Secure the air inlet adapter with supplied hardware, using an appropriately
sized wrench.
3-6 l Installa tion

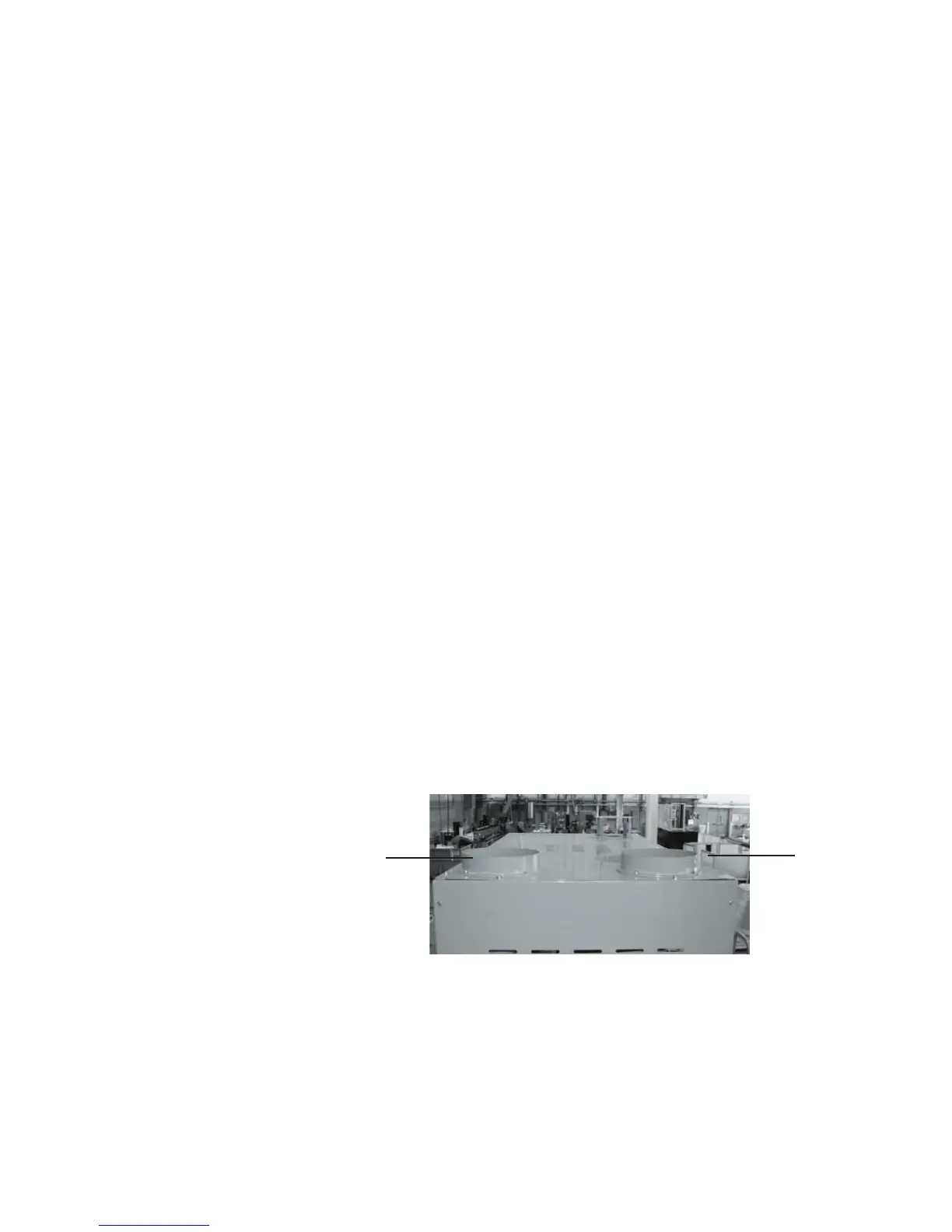

Dry Air
Outlet
Adapter
Return Air
Inlet Adapter
