3-10 l Install ation
Checking for Proper Air Flow (continued)

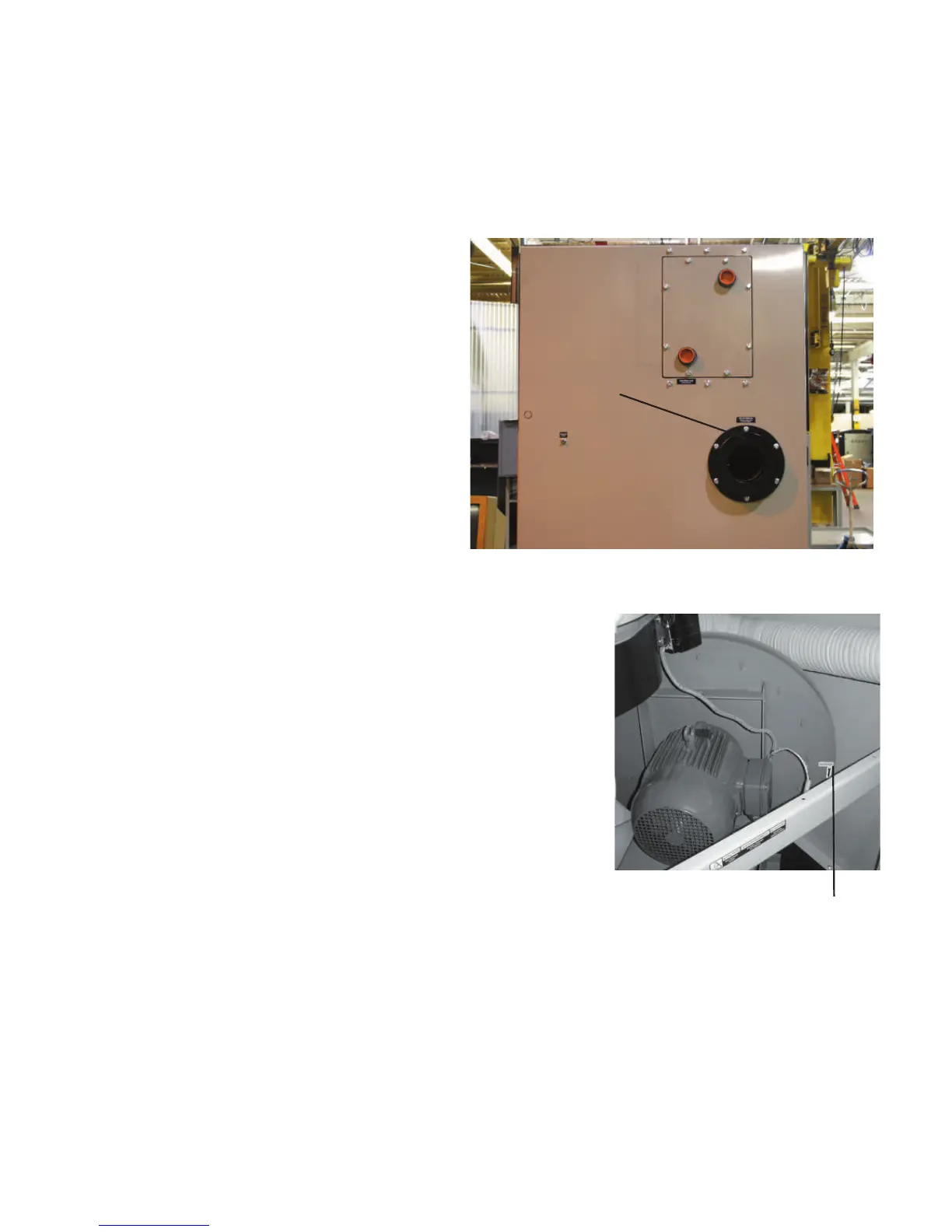

3 Visually verify the blower motor is
moving in the correct direction indi-
cated by the arrow on the blower
housing. The W series 600-5000 dryers
are equipped with centrifugal process
blowers.
Dry Delivery
Air
Direction
Indication
Arrow
✐
NOTE: Models W600-1000
dryer aftercooler and dry
air delivery configuration
shown. Location on larger
models are different.
Refer to the labeling on
your dryer. See
Installation section enti-
tled, Installing the
Return/Delivery Air
Adapters, for proper air
line connections.
