Chapter 2 DVR Installation & Connection

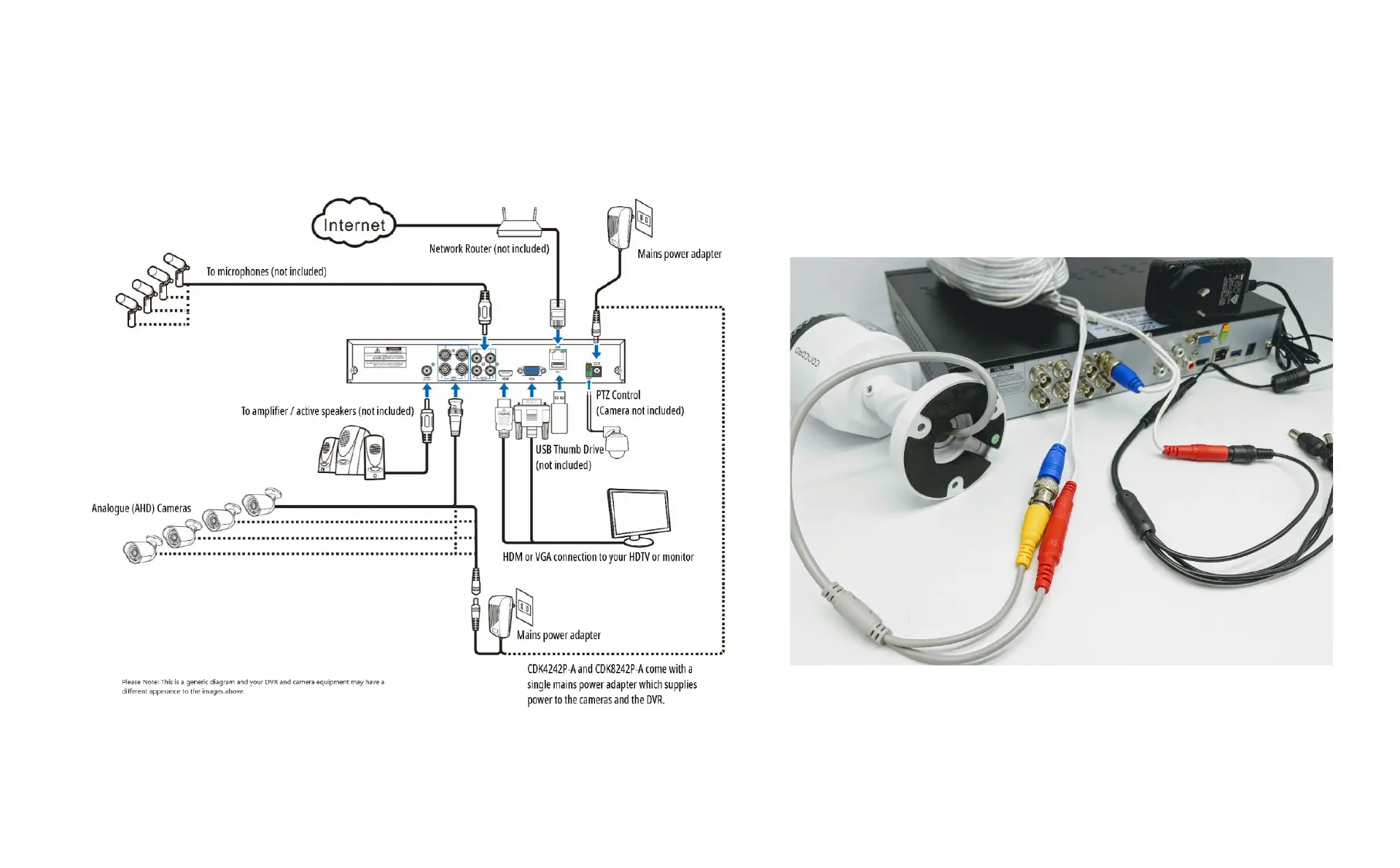

2.1 Connection Diagram
Note:
The above diagram is for reference purposes only, and uses a 4 channel DVR for the example. Your connections and setup may differ from this
description. Any DVR with more than four cameras will come with an extra power supply.
